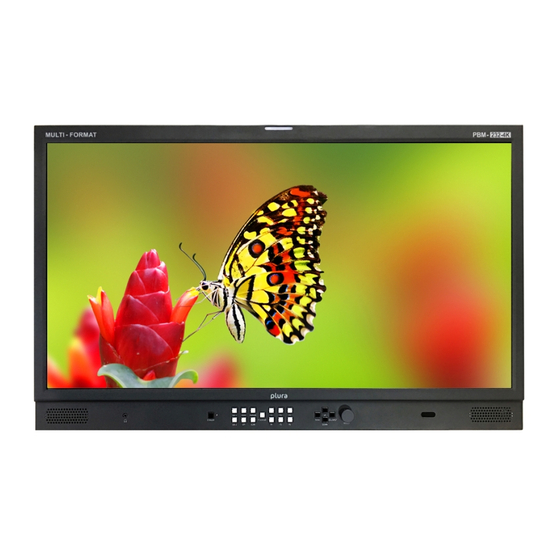

Plura PBM-224-4K Operating Instructions Manual
  1. Manuals
  2. Brands
  3. Plura Manuals
  4. Monitor
  5. PBM-224-4K
  6. Operating instructions manual

Plura PBM-224-4K Operating Instructions Manual

Pbm-4k series
Hide thumbs Also See for PBM-224-4K:
Table of Contents

Advertisement

Quick Links

Download this manual
Operating
Instructions
PBM-4K Series
PBM-224-4K
PBM-232-4K

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PBM-224-4K and is the answer not in the manual?

Questions and answers

Related Manuals for Plura PBM-224-4K

Summary of Contents for Plura PBM-224-4K

  • Page 1 Operating PBM-4K Series Instructions PBM-224-4K PBM-232-4K...

  • Page 2: Table Of Contents

    OVERVIEW------------------------------------------------------------------------------------------------7  ADVANCED FEATURES ----------------------------------------------------------------------------------7  FUNCTIONAL EXPLANATION OF EACH PART --------------------------------------------------------9 ---------------------------------------------------------------------------------------------9 RONT ANEL  PBM-224-4K -----------------------------------------------------------------------------------------9  Front Keys Arrangements ---------------------------------------------------------------------------9  Front Keys Operations----------------------------------------------------------------------------- 10  Front panel LED Operations----------------------------------------------------------------------- 10  Speaker Out---------------------------------------------------------------------------------------- 10 -------------------------------------------------------------------------------------------- 11 ANEL ...
  • Page 3 PBM-4KSeries USER MANUAL ------------------------------------------------------------------------------------------------- 16 DJUST ------------------------------------------------------------------------- 16 OLOR EMPERATURE ONTROL ------------------------------------------------------------------------------------------ 17 SPECT ATIO ------------------------------------------------------------------------------------- 17 ----------------------------------------------------------------------------------------- 17 EAKING ILTER ------------------------------------------------------------------------------------------- 18 ALSE OLOR HDR M -------------------------------------------------------------------------------------------- 18 ----------------------------------------------------------------------------------------- 18 UTPUT ANGE AUDIO MENU OPTIONS ------------------------------------------------------------------------------ 19 SDI O ------------------------------------------------------------------------------------------- 19 UTPUT ------------------------------------------------------------------------------------------- 19...
  • Page 4 PBM-4KSeries USER MANUAL  Network Configuration ---------------------------------------------------------------------------- 26 --------------------------------------------------------------- 26 APTION ORTH MERICAN ARKET ID ------------------------------------------------------------------------------------------------- 27 ------------------------------------------------------------------------------------------ 27 IDEO ANGE OSD TREE -------------------------------------------------------------------------------------------- 28 -------------------------------------------------------------------------------------------------- 29 IDEO ------------------------------------------------------------------------------------------------- 30 UDIO ------------------------------------------------------------------------------------------------ 31 ARKER GPI ---------------------------------------------------------------------------------------------------- 32 -------------------------------------------------------------------------------------------------- 33 ETUP MECHANICAL DIMENSION------------------------------------------------------------------------- 34...

  • Page 5: Preacution

    This product should be moved with care. Quick stops, excessive force and uneven surfaces may cause the product damages. Accessories Do not use accessories not recommended by PLURA Inc. as they may cause hazards. Ventilation Do not block any of the ventilation openings.
  • Page 6 PBM-4KSeries USER MANUAL ’ Install in accordance with the manufacturer s instructions. 10. Power Sources This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply, consult your power supply company.

  • Page 7: Overview

    USER MANUAL  OVERVIEW The Plura PBM-4K series is a multi-format 4K/UHD capable monitor series. The Plura PBM-4K is a great tool for all UHD/4K, 3G broadcast systems and all other wide-range industries. The PBM-4K series was designed and engineered for simple operation and future flexibility. The platform is built around a powerful FPGA chipset.
  • Page 8 PBM-4KSeries USER MANUAL  Fast Response Time for high motion video  Internal Monitor Display (IMD)  Ethernet & RS232 Remote Control  Underscan / Overscan / Normal / Zoom  Pixel to Pixel Mode, Tally, DC Operation  False Color and Peaking Filter / Focus Assist ...

  • Page 9: Functional Explanation Of Each Part

    PBM-4KSeries USER MANUAL  Functional explanation of each part 1. Front Panel Tally LED PBM-224-4K  Speaker Headphone Front Key Front Keys Arrangements  SDI1 SFP MARKER MENU SEL/ STANDBY SDI2 HDMI INPUT ADJUST DOWN...

  • Page 10: Front Keys Operations

    PBM-4KSeries USER MANUAL Front Keys Operations  Key Name Operation STANDBY ► Power ON/OFF Button. ► Select SDI 1. SDI 1 ► Select SDI 2. SDI 2 ► Select HDMI. HDMI ► Select SFP. MARKER ► Draw Marker on Screen ( Off -> 16:9 -> 4:3 … -> 2.35:1 ). ►...

  • Page 11: Rear Panel

    PBM-4KSeries USER MANUAL 2. Rear Panel I/O Details  SDI 2 SDI 1 HDMI IN ETHERNET RS-232C SFP IN DC Battery IN  PIN NO Description 2 , 3 DC IN 24V RJ-45  ETHERNET Remote PIN Assignment 1 PIN COMMON(GND) 5 PIN GPI 4 PORT...

  • Page 12: Interface Description

    PBM-4KSeries USER MANUAL Interface description  GND Terminal: 8 Pin of RJ-45 Interface Description SDI 1 IN 12G/3G/HD SDI Input SDI 2 IN SDI 1 OUT SDI 1, SDI 2 Loop Out SDI 2 OUT SFP Module x 1(SFP1/SFP2 Input) HDMI High Definition Multimedia Input RS232C...

  • Page 13: Typical Menu Operation

    PBM-4KSeries USER MANUAL 4. Typical Menu Operation 1. Press MENU button: The main menu will be displayed. 2. Use UP/DOWN button to select the desired menu option (icon). 3. While the desired menu option is selected, press to move to the second level. SEL/INPUT 4.

  • Page 14: On Screen Menus Selection And Adjustment

    PBM-4KSeries USER MANUAL 6. On Screen Menus Selection and Adjustment 1. How to adjust the OSD screen 1. Press the MENU button and then UP/DOWN button to select each menu. 2. Press the button and then use UP/DOWN (SEL/INPUT)/MENU button to display the SEL/INPUT available menu.

  • Page 15: Select Video Input

    PBM-4KSeries USER MANUAL 7. SELECT VIDEO INPUT 1. How to Select Video Source by OSD 1. Press the SET/INPUT button and then UP/DOWN button to select the required video source. 2. Press the SET/INPUT button to select the desired video source. 3.

  • Page 16: Picture Menu Options

    PBM-4KSeries USER MANUAL 8. PICTURE MENU OPTIONS 1. Adjust - Adjust the values of Brightness, Contrast, Color, Tint and Sharpness range from -50 to 50 2. Color Temperature Control - For Setting the Color temperature or adjusting RGB gain value - User (User setting RGB gain value), VAR(3200K ~ 9300K), Most common value ( 9300K, 6500K, 5400K,3200K) and 3D LUT Calibration value(D65 –...

  • Page 17: Aspect Ratio

    PBM-4KSeries USER MANUAL 3. Aspect Ratio - For setting the aspect ratio. - Pixel to Pixel: Video input will match the video display resolution (NO Scaling). If input resolution is higher than panel resolution, the video will be downscaled to match the panel resolution. - Full Screen: The video input will be scaled to the max panel resolution.

  • Page 18: False Color

    PBM-4KSeries USER MANUAL 6. False Color - False Color on/off 7. HDR Mode - ST 2084-300 / ST 2084-1000 / ST 2084-10000 / HLG - HDR Demo on/off 8. Output Range - Normal (16~235)/Full (0~255)

  • Page 19: Audio Menu Options

    PBM-4KSeries USER MANUAL 9. AUDIO MENU OPTIONS 1. SDI Output - Select primary or secondary audio group to extract. (Group 1~4) - Audio output channel source select. (Channel1~4, Channel1/2, Channel3/4, off) 2. Level Meter - Display the audio level meter on screen in SDI input. -Pair: Respectively By Audio Pair (L&R) display -Group: Respectively By Audio Group display...

  • Page 20: Volume

    PBM-4KSeries USER MANUAL - Level Meter Position selects. (TOP/Bottom) - Level Meter Scale mode selects. (BBC / EBU / VU / NORDIC / DIGITAL / DIN / EXPAND DIN) 3. Volume...

  • Page 21: Marker Menu Options

    PBM-4KSeries USER MANUAL - Adjust the speaker or headphone Volume level. (0~32) 10. Marker MENU OPTIONS 1. Marker & User Marker - Marker : 16:9, 4:3, 14:9, 13:9, 1.85:1, 2.35:1, 1.85:1&4:3, User1, User2, User3 (Customized markers). - User Marker: The user defined Marker size setting. 2.

  • Page 22: Center Maker

    PBM-4KSeries USER MANUAL 3. Center Maker - “+” display Marker on center of screen 4. Marker Width -Marker line thickness setting. (0~10) 5. Marker Color - Marker Line Color: Select Marker line color (White, Yellow, Blue, RED, Black) - Safety Line Color: Select Safety line color (White, Yellow, Blue, RED, Black) - Marker Back Color: Select Marker Back Color.

  • Page 23: Setup Menu Options

    PBM-4KSeries USER MANUAL GPI Function Description UNDEF Not set (no function allocated) Marker1 On/Off, Marker2 On/Off Displays the markers which have been set by the GPI PRESET 1 & 2 items. Center Marker Displays the center marker. Aspect Area For setting the aspect ratio. Safety Area Displays the Safety Area.

  • Page 24: Function 1 ~6

    PBM-4KSeries USER MANUAL - Factory Default: User Reset. 2. Function 1 ~6 - Function 1~6: Select the required function to be allocated to the FUNCTION Keys 1, 2, 3, 4, 5, 6. Function1~6 button Description UNDEF Not set (no function allocated) Aspect Sets the aspect ratio Audio Lv Meter...

  • Page 25: Osd Option

    PBM-4KSeries USER MANUAL OSD Option   OSD Transparency: Disable blending OSD background with video image. OSD Time out: OSD time display setting. (3~200) Time code   Time code Enable: Time code Display (off/LTC/DVITC, SDI only) Time code size: Time code size select. (Small, Middle, Large) Time code Position: Time code display position selects (L-T, C-T, R-T, L-B, C-B, R-B)

  • Page 26: Control

    PBM-4KSeries USER MANUAL Control  - FRONT LED: Front LED on/off - Local Enable: Power, up and down key is only operational, if Local enable is off. - Remote Enable: Select the controller of local or remote. If remote controller is selected, both local (front key) and remote are operational.

  • Page 27: Set Id

    PBM-4KSeries USER MANUAL - Closed Caption Mode: 608 Line21, 608 ANC, 608 Transcoded, 708 mode Select - 608 Caption channel: C/C1, C/C2, C/C3, C/C4, TEXT1, TEXT2, TEXT3, TEXT4 - 708 Caption Service: Service 1/Service 2 6. Set ID - Set ID is required for remote control. Set ID range (01~99).

  • Page 28: Osd Tree

    PBM-4KSeries PBM-4KSeries PBM-4KSeries USER MANUAL USER MANUAL USER MANUAL 13. OSD TREE 13. OSD TREE 13. OSD TREE...

  • Page 29: Video

    PBM-4KSeries PBM-4KSeries PBM-4KSeries USER MANUAL USER MANUAL USER MANUAL 1. Video 1. Video 1. Video...

  • Page 30: Audio

    PBM-4KSeries PBM-4KSeries PBM-4KSeries USER MANUAL USER MANUAL USER MANUAL 2. Audio 2. Audio 2. Audio...

  • Page 31: Marker

    PBM-4KSeries PBM-4KSeries PBM-4KSeries USER MANUAL USER MANUAL USER MANUAL 3. Marker 3. Marker 3. Marker...

  • Page 32: Gpi

    PBM-4KSeries PBM-4KSeries PBM-4KSeries USER MANUAL USER MANUAL USER MANUAL 4. GPI 4. GPI 4. GPI...

  • Page 33: Setup

    PBM-4KSeries PBM-4KSeries PBM-4KSeries USER MANUAL USER MANUAL USER MANUAL 5. Setup 5. Setup 5. Setup...

  • Page 34: Mechanical Dimension

    PBM-4KSeries USER MANUAL 14. Mechanical Dimension PBM-224-4K PBM-232-4K - COMING SOON...
  • Page 35 www.plurabroadcast.com U.S.A. Germany U.A.E. S.Korea Mexico...
