Steelcase c:scape Manual page 3

NOTE: If counterweight package
gets separated, make sure the
two large flat plates are nested
when reassembling the package.

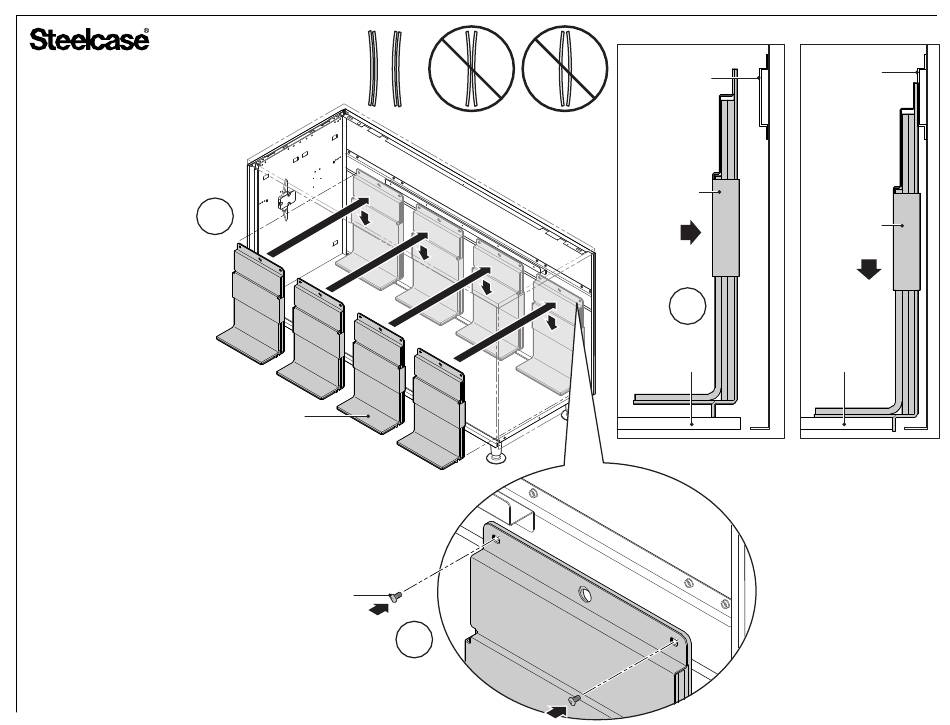

Installing
Counterweight
Packages 1a
NOTE: File drawer must
be removed prior to adding
counterweight.
1.
Insert the counterweight
packages against the back
brace at the rear of case.
Reminder: Install all
required counterweight
packages.
COUNTERWEIGHT
For 30" and 48" wide units:
Three (3) counterweight
packages (CQLC1).
For 36" and 42" wide units:
Four (4) counterweight
packages (CQLC2).
2.
Line up holes in
counterweight package with
the holes in back brace,
starting at one side and
working across. Install
one (1) #10-32 x 1/2" screw
into each hole. Driving
torque not to exceed 40 in-lbs.
OR
NOT
PACKAGE
#10-32 X 1/2" SCREW
2
OR
BACK
BRACE
COUNTER-
WEIGHT
PACKAGE
1b
BASE
BACK
BRACE
COUNTER-
WEIGHT
PACKAGE
BASE
Page 3 of 4
939500370 Rev D
