Step 4: Fix The Intermediate Leg Only To The 600 Depth Table Top. - Steelcase FRAMEONE Assembly Instructions

®

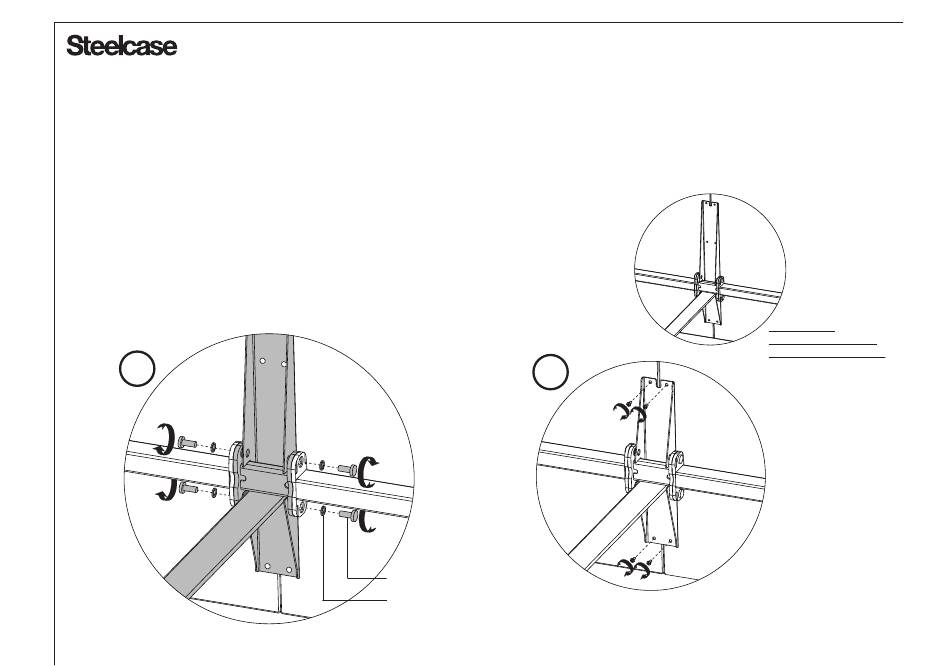

Intermediate Leg + Table
3. Lock the Intermediate Leg in position with
- 4 screw positions
4. Fix the Intermediate Leg only to the 600 depth table top by tightening
4 x M5 screws through the channel bracket.
DO NOT fix the intermediate leg for the 800 depth table as this
would disable the table top sliding feature.
3
May 2009
M10 Socket Screws and washers.
4
M10 Socket Screw
Washer
Assembly Instruction - 600/800D Intermediate Leg
600 Depth Table
Intermediate Leg
FRAMEONE
DO NOT FIX
INTERMEDIATE LEG
TO 800 DEPTH TABLE
Page 2 of 3
