CAUTION
FAILURE TO FOLLOW THESE
INSTRUCTIONS COULD RESULT IN
PROPERTY DAMAGE OR PERSONAL
INJURY.
Read the entire Assembly Direction
before beginning installation or assembly.
Building construction varies greatly and
is outside Steelcase's control. The
Building's Engineer of Record is
responsible for the design of studs,
backing, reinforcement, supporting
members etc. which the units are
attached to and must verify the adequacy
of the mounting hardware. These
instructions and any hardware provided
by Steelcase are for convenience only
and are not an indication of what may be
required by your local Code.
The building owner or designated agent
is responsible for verifying that the
installation is in compliance with all local
Codes and regulations.
If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
©
2014 Steelcase Inc.
Grand Rapids, MI 49501
U.S.A.
Printed in U.S.A.

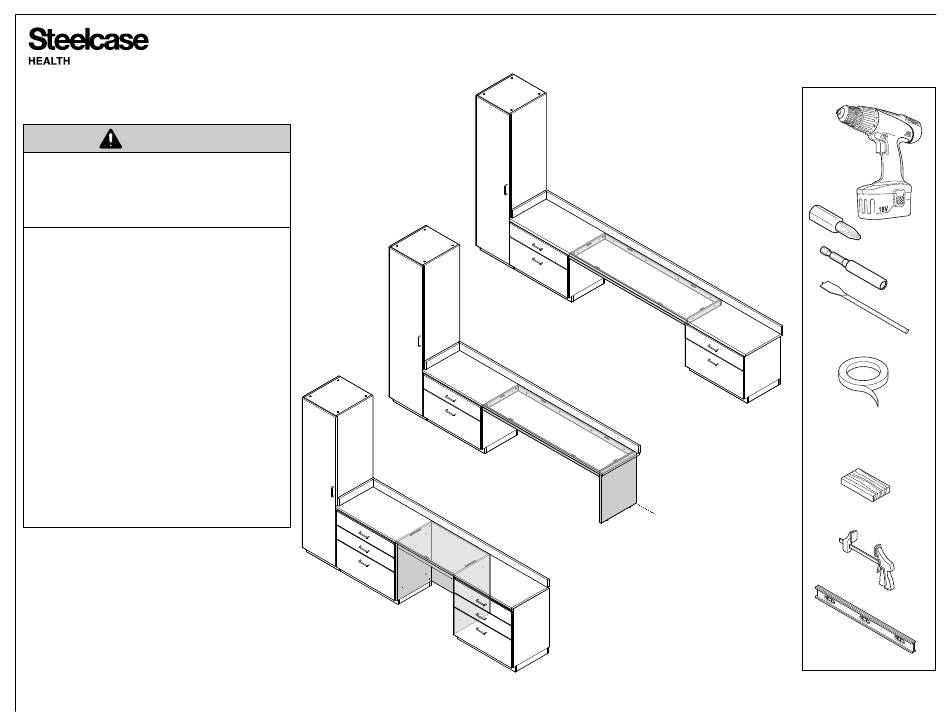

Folio™ Desk Frame, Desk Frame and End Panel
Desk Frame
with End Panel
Desk Frame
with Back Panel
(with or without Doors)
& Desk Frame with Back Panel
Desk Frame
3/8" SPADE BIT
MASKING TAPE
(Used to help prevent
any possible chipping
while drilling)
WOOD BLOCK
CLAMP
Page 1 of 14
939500540 Rev F
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Steelcase Folio Desk Frame
Summary of Contents for Steelcase Folio Desk Frame
- Page 1 Codes and regulations. If you have a problem, question, or request, call CLAMP your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you. (Outside the U.S.A., Canada, Mexico, Puerto Rico, Desk Frame and the U.S.
- Page 2 Installing a Desk Between Two Cabinets onto Drywall Pull drawer(s) forward from the base cabinet(s) (1a). Remove drawer(s) completely by one of the methods shown below (1b). Push slide rails back into base cabinet(s). TIP: Mark all drawers so they can be easily re-installed in their original positions.
- Page 3 WOOD BLOCK Clamp a wood block on other side of panel to Use existing clearance holes in desk frame sides for prevent excessive blowout. drilling location. Drill two (2) holes through side of desk Use a sharp 3/8" drill bit frame assembly and into cabinet.
- Page 4 Installing a Desk with an End Panel onto Drywall Pull drawer(s) forward from the base cabinet (1a). Remove drawer(s) completely by one of the methods shown below (1b). Push slide rails back into base cabinet(s). TIP: Mark all drawers so they can be easily re-installed in their original positions.
- Page 5 WOOD BLOCK Clamp a wood block on other side of panel to Secure end panel to desk frame with two (2) 5/16-18 x 1-1/4" bolts (4a). prevent excessive Use existing clearance holes in desk frame sides for drilling location (4b). blowout.
- Page 6 Installing a Desk Frame with Back Panel (with or without Doors) onto Drywall Pull drawers forward from the base cabinet (1a). Remove each drawer completely by one of the methods shown below (1b). Push slide rails back into base cabinets. TIP: Mark all drawers so they can be easily re-installed in their original positions.
- Page 7 WOOD BLOCK Clamp a wood block on Use existing clearance holes in desk frame sides for drilling other side of panel to locations. Drill four (4) 3/8" diameter holes through side of desk prevent excessive frame assembly and into cabinet. blowout.
- Page 8 Installing a Desk Frame Between Two Hardware BRACKET Cabinets onto V.I.A. On-Module (LEFT HAND) ITEM Qty. SCREW-TAPPING NOTE: The following steps assume that all V.I.A. CTSK. HEAD, 12-14 x .750 vertical structure has been plumbed and leveled with skins installed. BRACKET-LOWER, FOLIO-VIA, LH Pull drawers forward from the base cabinet(s) (1a).
- Page 9 HEALTH Locate slot in vertical post closest to 34-1/2” from the floor. (31-1/2” for ADA cabinets). Install brackets by inserting the top hook (RH BRACKET SHOWN) into slot from step 3 (4a), then rotate remaining hooks into slots and slide down (4b). NOTE: Use the LH and RH brackets in the proper orientation.
- Page 10 WOOD BLOCK Use existing clearance holes in desk frame sides for drilling locations. Drill two (2) 3/8" diameter holes through side of desk frame assembly and into cabinet. NOTE: Use masking tape to prevent any possible chipping while drilling and backup with clamped wood block. MASKING TAPE Secure desk frame assembly to base cabinet using two (2) Clamp a wood block on...
- Page 11 Installing End Panel onto V.I.A. - On-Module TOP HOOK Hardware Secure end panel to desk frame using two (2) 5/16-18 x 1-1/4” fasteners. ITEM Qty. SCREW-TAPPING, HEX WASHER HEAD, Locate slot in vertical post closest to 8” from the floor. WORK .312-18 x 1.250 SURFACE...
- Page 12 Installing a Desk Frame with Back Panel (with BRACKET Hardware or without Doors) Between Two Cabinets onto (LEFT HAND) ITEM Qty. V.I.A. On-Module SCREW-TAPPING CTSK. HEAD, NOTE: The following steps assume that all V.I.A. vertical structure 12-14 x .750 has been plumbed and leveled with skins installed. BRACKET-LOWER, FOLIO-VIA, LH Pull drawer(s) forward from the base cabinet(s) (1a).
- Page 13 Install brackets and desk frame by inserting the top hook into slot from step 3 (4a), then rotate the remaining hooks into slots and slide down (4b). Make sure the top and back of the units are flush. NOTE: Use the LH and RH brackets in the proper orientation.
- Page 14 Using existing clearance holes in desk frame sides for drilling locations. Drill (4) 3/8” diameter holes through side of desk frame assembly and into cabinet. NOTE: Use masking tape to prevent any possible chipping while drilling and backup with clamped wood block. Secure desk frame assembly to base cabinet using four 1-1/2"...
