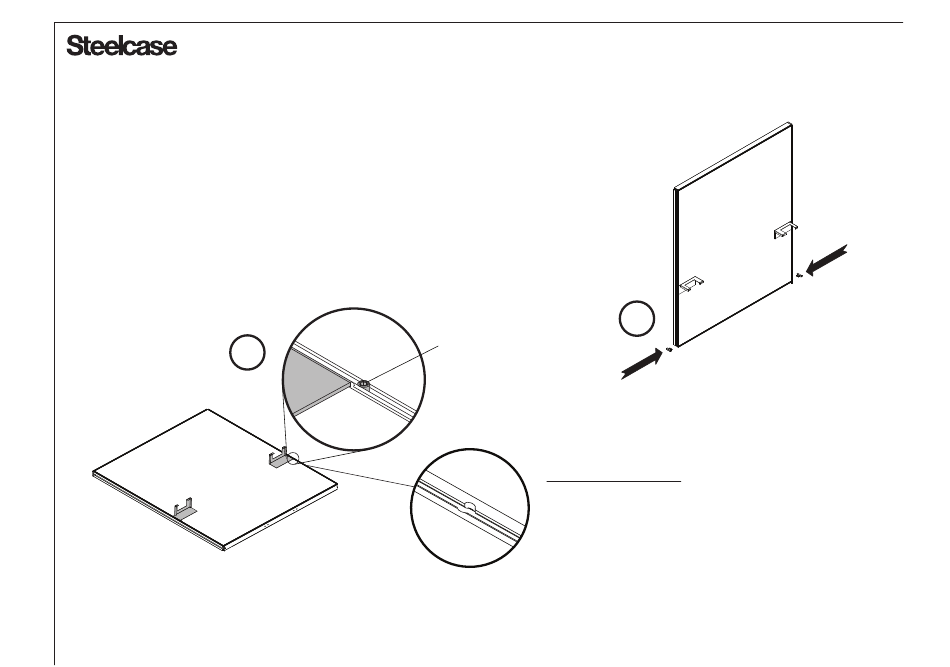

3. Align the Set Screw to the desired Screen height
guide hole. Tighten this screw to lock it to the guide hole.
Align the other bracket to the same height and repeat this step.

4. Re-install both bottom caps of the Screen.

3
July 2009
Set Screw
Screen Height Guide Hole
This hole functions as a guide to
determine the overall height of the
screen/panel installed to the FrameOne desk.
Note:
Lowest Guide Hole = Highest Screen Position
Screen Height
Guide Hole
FRAMEONE
Assembly Instruction - Side Screen
