Summary of Contents for Steelcase Flex 120 Straight

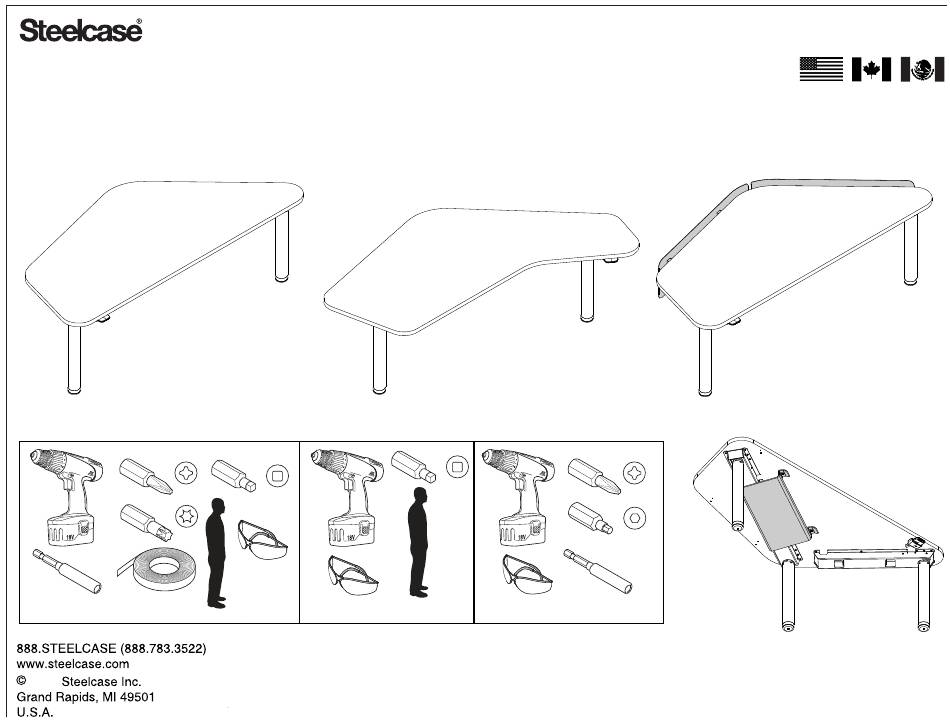

- Page 1 Steelcase ® Flex Collection - 120˚ Height Adjustable Desk 120 Straight 120 Corner 120 with Modesty Panel Cable Tray T-27 Height Adjustable Desk Modesty Panel Cable Tray 2021 Page 1 of 20 Doc # 160355 Rev A...
-
Page 2: Important Safety Instructions
HEIGHT AND BETWEEN THE DESK & ADJACENT OBJECTS. 1/888-783-3522 Steelcase.com NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interface when the equipment is operated in a commercial environment. - Page 3 IMPORTANT SAFETY INSTRUCTIONS PLEASE SAVE THESE INSTRUCTIONS, AND THE USER GUIDE, IN AN OBVIOUS PLACE FOR THE END USER AFTER ASSEMBLY. Products with Polarized Plugs WARNING To reduce the risk of burns, fire, electric shock or injury to persons: Products with Grounded Plugs The desk or table shall be installed near power socket &...
- Page 4 These drawings identify the parts included with your Height Adjustable Table. Some of these parts are considered by regulatory bodies to be critical components. If any parts shown here do not match your order, please contact Steelcase at www.steelcase.com/contact-us Desk Component List...
- Page 5 Page 5 of 20 Doc # 160355 Rev A...
- Page 6 7.5 Nm (66.38 in-lbs) Page 6 of 20 Doc # 160355 Rev A...
- Page 7 Desk With Under Worksurface Power LH Shown 4x 4x LH Under Worksurface Power Orientation RH Under Worksurface Power Orientation Page 7 of 20 Doc # 160355 Rev A...
-
Page 8: Cable Routing
Cable Routing NOTE: See following two pages for all cable routing options NOTE: Place control box in understructure as shown and tape across the control unit to hold in place when flipped. Page 8 of 20 Doc # 160355 Rev A... - Page 9 120 Straight LH Desk w/ Power RH Desk w/ Power LH Desk w/o Power RH Desk w/o Power Page 9 of 20 Doc # 160355 Rev A...
- Page 10 120 Corner RH Desk w/ Power LH Desk w/ Power RH Desk w/o Power LH Desk w/o Power Page 10 of 20 Doc # 160355 Rev A...
- Page 11 A / B Above Worksurface Mounted Power Cable Routing NOTE: To optimize the above worksurface power block reach, follow the Blue/A and Green/B diagrams. NOTE: The above worksurface power block needs to be mounted to the worksurface before installing a 120 Straight Modesty Panel or Privacy Wrap.
- Page 12 120 Left-hand Straight Desk 120 Left-hand Corner Desk Page 12 of 20 Doc # 160355 Rev A...
- Page 13 120 Left-hand Straight Desk 120 Right-hand Straight Desk 120 Left-hand Corner Desk 120 Right-hand Corner Desk Page 13 of 20 Doc # 160355 Rev A...
- Page 14 NOTE: Use provided cable clips to manage wires. The “yellow” clip is for the switch cable. The “purple” clip is for the leg or power cables. The “green” clip can be adhered to the understructure surface to route cable optimized for desk power cord. TIP: Keep cables close to understructure.
- Page 15 Optional Cable Tray Page 15 of 20 Doc # 160355 Rev A...
- Page 16 Magnetic Cable Clips Cord Diameter 9.4mm to 10mm (12/32" to 13/32") Note: Magnetic cable clips can be used on the beam structure as well as the optional modesty panel. For smaller cords, apply adhesive foam strips to increase grip Page 16 of 20 Doc # 160355 Rev A...
- Page 17 Page 17 of 20 Doc # 160355 Rev A...
- Page 18 Optional Modesty Panel Privacy Wrap Pilot Holes Note: If a Privacy Wrap was previously installed there will be additional holes not shown in view above. Modesty panel always installs in the holes closest to the worksurface edge, and closest to the back corner/radius of the desk. Note: Reference the Privacy Wrap - Flex Personal Spaces assembly direction for Page 18 of 20 Privacy Wrap installation on 120 Height-Adjustable Desks.
- Page 19 Page 19 of 20 Doc # 160355 Rev A...
- Page 20 ® Page 20 of 20 Doc # 160355 Rev A...
