Kimball Canopy Assembly Instructions

End media wall

Advertisement

Canopy
®
End Media Wall

Tools Required

Box Cutter/Utility Knife
Cordless Drill w/#2 Phillips head bit drive
M4 & M5 Allen wrench drive (optional, supplied in box)
1/16" Allen wrench drive
Bubble Level
Carpenter Square
String line

Hardware Required

1 - Media Wall Static Leg Set (28F113018BEBFP)
1 - 25 H-Frame (28F25HW1C*P)
1 - crossrail (comes with h-frame)
1 - Canopy (28F6052CASE**)
2 - Canopy Flat Plates
1 - Plywood Seat Platform (28F1860SHLD2)
1 - Seat Cushion (28F1860BC) (optional)
36 - Flat Head Philips #10-32 X 5/8 machine screws
50 - Pan Head Phillips #10 X 3/4" wood screws
6 - Flat Head M6-1 X 12 machine screws
24 - Button Head M6-1 X 12 machine screws
8 - Flat Head Phillips #8 X 1-1/2" wood screws (seat assy)

Installation

Note: Bases installed 1st, trays 2nd, fixed screens 3rd and
tops/worksurface screens 4th.
1.
Using a knife open box removing all components carefully
and place aside. See components in Figure A.
2.
Thread glide into bottom of both static legs as shown in
Figure B upper right corner. Slide static legs together by
orienting legs correctly and sandwiching h-frame in be-
tween. Attach using M4 Allen wrench key/drive and flat
head screws on counter sink face side of tubes/button head
screws on bottom of tubes. See left hand corner of Figure
B.
3.
It is important to connect all bench bases to end units
using h-frames packed with end units. See respective
end unit AI for more information. Note: Figure C
shows h-frame can be attached in either direction de-
pending on where canopy is to be mounted, see step 4
below for canopy attachment.
4.
Insert canopy insert plates into bottom of canopy, aligning
holes on canopy with holes on threaded plates. See Figure
D
Figure D
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Office Customer Care.
Part 3024929, Revision A
Assembly Instructions

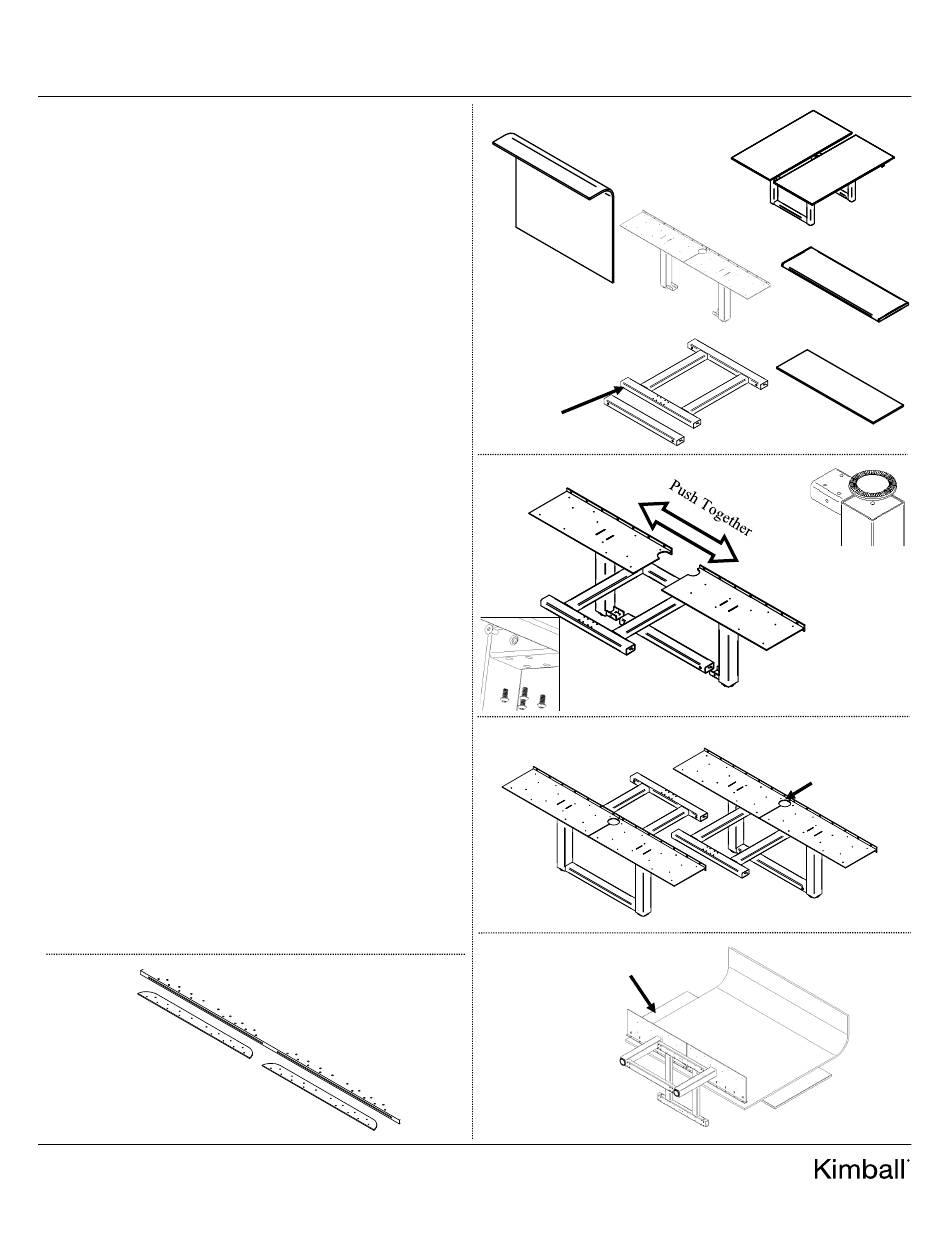

Figure A
Canopy
Static Legs
H-Frame
w/crossrail
Figure B
Figure C
Recommended
Figure E
Fixed Surface
1
Bench
*Refer to
Bench AI*
Cushion
Plywood
Platform
*Glide will be
packed with
static legs*
grommet
cutout
