Kimball Canopy Assembly Instructions

Media wall w/end base

Advertisement

Canopy
®
Media Wall w/End Base

Tools Required

Box Cutter/Utility Knife
Cordless Drill w/extension & #2 Phillips head bit drive
M4 & M5 Allen wrench drive (optional, supplied w/base)
1/16" Allen wrench drive
Bubble Level
String line

Hardware Required

1 - End base (28FBEBSEP***)
1 - 33 H-Frame dual (28F33HW2C*P) (tray is pre-attached)
2 - crossrails (comes with H-Frame above)
1 - Worksurface (round, half round, half ellipse)
1 - Plywood shelf (28F1160SHLD2)
1 - Canopy (28F6052CASE**)
1 - Static Leg set (2 legs) (28F113018BEBFP)
32 - M6 X 12 Button Head Machine screws
8 - M6 X 12 Flat Head Machine screws
36 - Flat Head Philips #10-32 X 3/4" machine screws
32 - Pan Head Phillips #10 X 3/4" wood screws

Installation

Note: Bases installed 1st, trays 2nd, fixed screens 3rd and
tops/worksurface screens 4th.
1.
Using a knife open box removing all components carefully
and place aside. See components in Figure A.
2.
Thread glides into bottom of static legs as shown in Figure
B top right corner.
3.
It is important to connect all bench bases to end units
using h-frames packed with end units. See respective
end unit AI for more information. Slide H-frame and
crossrail, over u-brackets on the inside of static legs and
push together. See Figure B. Note: threaded 8 holes on
face of H-frame will slide underneath static legs plates.
Attach using M4 Allen wrench key/drive and flat head
screws on face of tubes/button head screws on bottom of
tube. See Figure B.
4.
Slide flat plates into bottom routes of canopy orienting
holes with respect to plates holes. Use a pen if needed to
center plate hole threads with canopy holes. See Figure C.
5.
Lay canopy on a fixed non-marring surface, leaving base
attachment area of canopy hanging off surface as shown in
Figure D. Use drill w/Phillips bit, and provided #10-32 X
3/4" machine screws to thread into flat plates inside canopy
securing base to canopy.
Figure C
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Customer Care.
Part 3033327, Revision B
Assembly Instructions

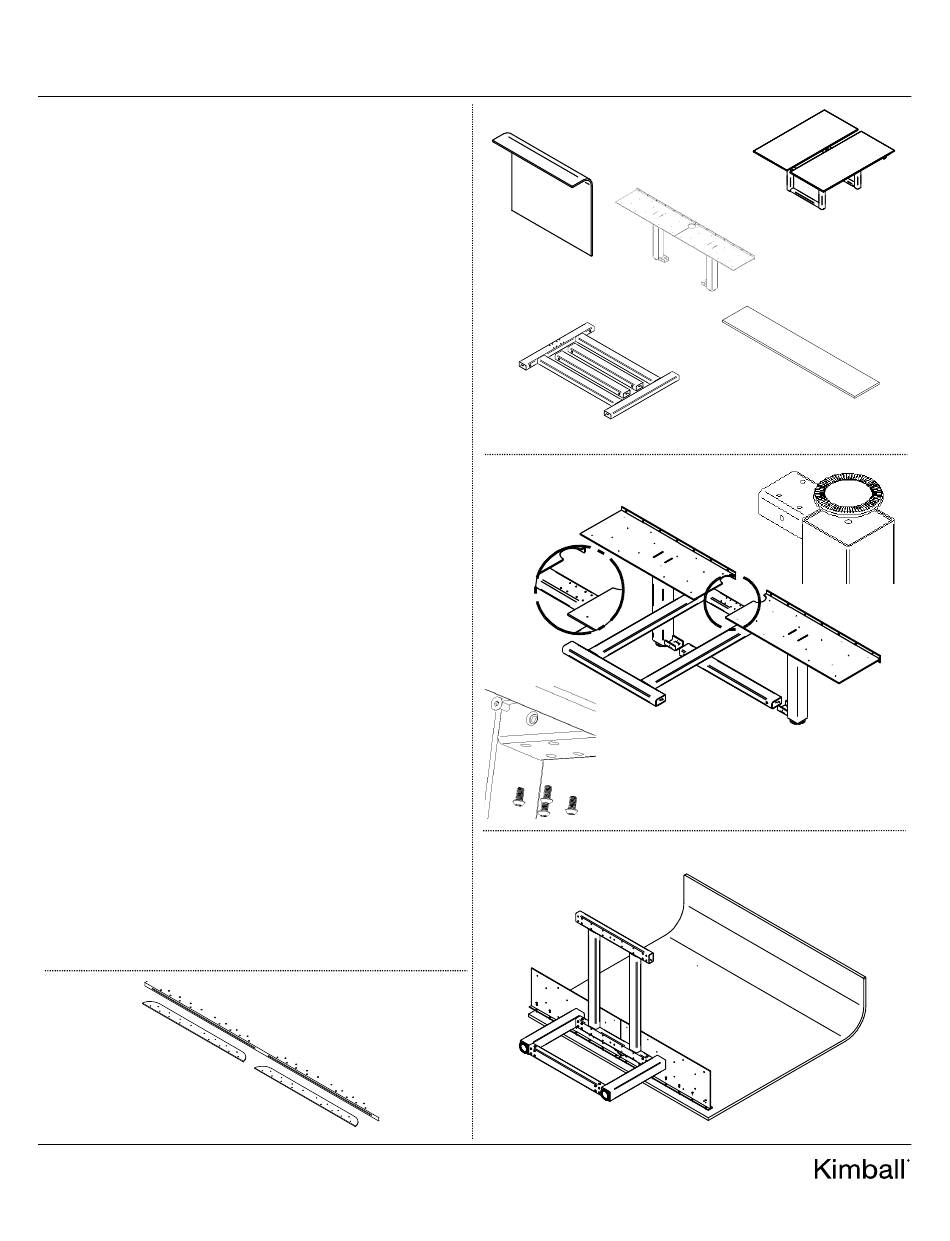

Figure A
Canopy
Static Legs
H-Frame w/
(2) crossrails
Figure B
Glide will be
packed with
static legs
DETAIL A
Figure D
Bench
*Refer to
Bench AI*
Plywood
Shelf
A
1
