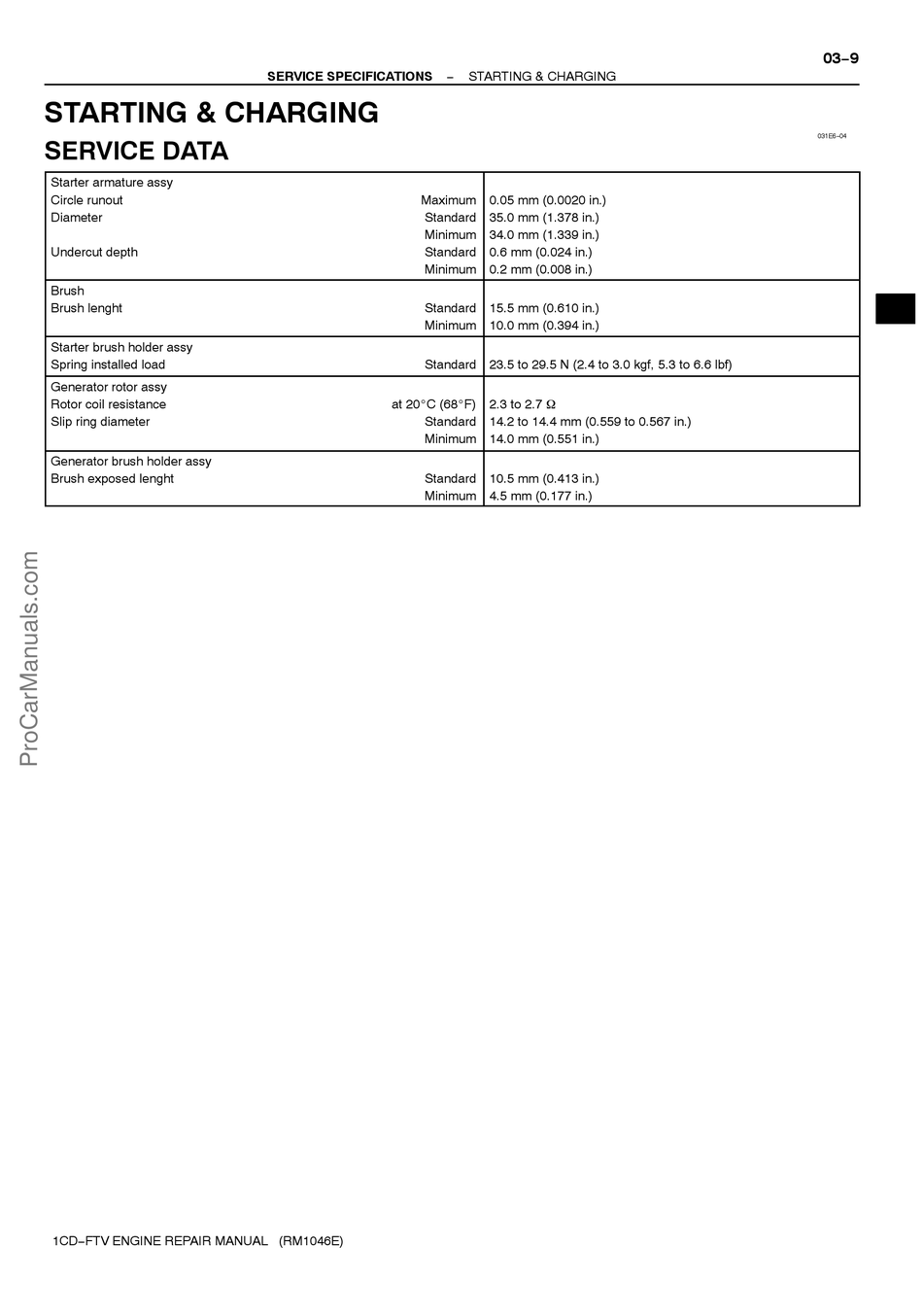

Toyota 1CD-FTV Manual page 31

STARTING & CHARGING
SERVICE DATA
Starter armature assy
Circle runout
Diameter
Undercut depth
Brush
Brush lenght
Starter brush holder assy
Spring installed load
Generator rotor assy
Rotor coil resistance
Slip ring diameter
Generator brush holder assy
Brush exposed lenght
1CD−FTV ENGINE REPAIR MANUAL (RM1046E)
SERVICE SPECIFICATIONS
Maximum
Standard
Minimum
Standard
Minimum
Standard
Minimum
Standard 23.5 to 29.5 N (2.4 to 3.0 kgf, 5.3 to 6.6 lbf)
at 20_C (68_F)
Standard
Minimum
Standard
Minimum
−
STARTING & CHARGING
0.05 mm (0.0020 in.)
35.0 mm (1.378 in.)
34.0 mm (1.339 in.)
0.6 mm (0.024 in.)
0.2 mm (0.008 in.)
15.5 mm (0.610 in.)
10.0 mm (0.394 in.)
2.3 to 2.7 W
14.2 to 14.4 mm (0.559 to 0.567 in.)
14.0 mm (0.551 in.)
10.5 mm (0.413 in.)
4.5 mm (0.177 in.)
03−9
031E6−04
