  • Page 1 BIPAC 7100S ADSL Modem/Router with 10/100M LAN Port User Manual...

  • Page 3: Table Of Contents

    1.3 BIPAC 7100S Features ...2 1.4 BIPAC 7100S Application...3 Chapter 2 ... 4 Using Billion ADSL Modem/Router...4 2.1 Cautions for Using Billion ADSL Modem/Router ...4 2.2 The Front LEDs ...4 2.3 The Rear Ports...4 2.4 Cabling ...5 Chapter 3 ... 7 Configuration ...7...
  • Page 4 Billion BIPAC 7100S ADSL Modem/Router 3.4.3.4.5 URL Blocking...36 3.4.3.5 VPN (Virtual Private Networks)...37 3.4.3.6 Virtual Server ...39 3.4.3.7 Advanced...40 3.4.3.7.1 ADSL ...40 3.4.3.7.2 DNS...40 3.4.3.7.3 Dynamic DNS ...41 3.4.3.7.4 NAT ...42 3.4.3.7.5 RIP ...44 3.4.3.7.6 SNMP ...45 3.4.3.7.7 Static Routing ...46 3.4.3.7.8 MISC Configuration ...47...

  • Page 5: Chapter 1

    Introduction 1.1 An Overview of BIPAC 7100S BIPAC 7100S ADSL Modem/Router provides a high-speed Ethernet port for high-speed Internet browsing. It can support downstream transmission rates of up to 8Mbps and upstream transmission rates of up to 1024Kbps. It is compliant with Multi-Mode standard (ANSI T1.413, Issue 2; G.dmt (G.992.1);...

  • Page 6: Package Contents

    One power adapter 1.3 BIPAC 7100S Features BIPAC 7100S ADSL Modem/Router provides the following features: ADSL Multi-Mode Standard: Supports downstream transmission rates of up to 8Mbps and upstream transmission rates of up to 1024Kbps. It is compliant with Multi-Mode standard (ANSI T1.413, Issue 2;...

  • Page 7: Bipac 7100S Application

    PPTP pass through function to establish a VPN connection if the user likes to run the PPTP client in his local computer. Simple Network Management Protocol (SNMP): It is an easy way to remotely manage the router via SNMP. 1.4 BIPAC 7100S Application...

  • Page 8: Chapter 2

    2.1 Cautions for Using Billion ADSL Modem/Router Do not place the router under high humidity and high temperature. Do not use the same power source for the device with other equipment. Do not open or repair the case yourself. If the device is too hot, turn off the power immediately and have a qualified serviceman repair it.

  • Page 9: The Rear Ports

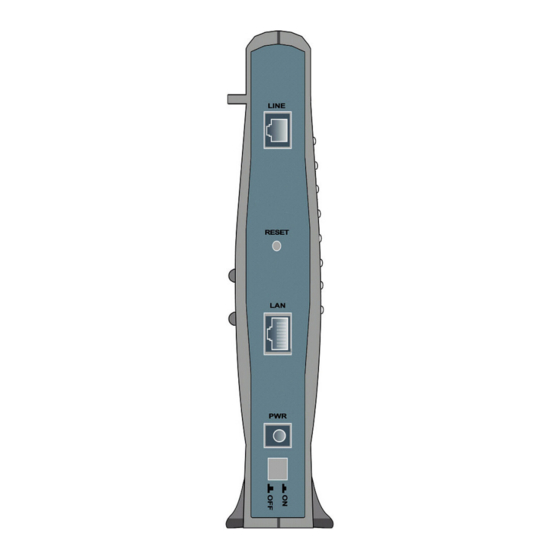

    2.3 The Rear Ports LINE (RJ-11 connector) Reset (RJ-45 connector) Power (jack) Power Switch 2.4 Cabling Through Ethernet Port The product’s LAN port is wired just like a Network Adapter’s port. From the product directly to a PC, the cable should be an Ethernet crossover cable. From the product to a hub or switch, the cable should be an Ethernet straight through cable to a normal hub/switch port, or an Ethernet crossover cable to an uplink port.
  • Page 10 Billion BIPAC 7100S ADSL Modem/Router So long as the cables are connected and the LEDs are lit normally, follow section “3.2 Configuring the Network Properties” below to modify the network settings. Since the product cannot auto-detect whether your cable is correct or not, please make...

  • Page 11: Chapter 3

    IP address through a DHCP server or a fixed IP address which must be in the same subnet of BIPAC 7100S. The default IP address of router is 192.168.1.254 and subnet mask is 255.255.255.0. The best and easy way is to configure the PC to get an IP address from BIPAC 7100S.
  • Page 12 Billion BIPAC 7100S ADSL Modem/Router 3. In the Local Area Connection Status window, click Properties. 4. Select Internet Protocol (TCP/IP) and click Properties.

  • Page 13: Configuring Pc In Windows 2000

    5. Select the Obtain an IP address automatically and the Obtain DNS server address automatically radio buttons. 6. Click OK to finish the configuration. Configuring PC in Windows 2000 1. Go to Start / Settings / Control Panel. In the Control Panel, double- click on Network and Dial-up Connections.
  • Page 14 Billion BIPAC 7100S ADSL Modem/Router 3. In the Local Area Connection Status window, click Properties. 4. Select Internet Protocol (TCP/IP) and click Properties.

  • Page 15: Configuring Pc In Windows 95/98/Me

    5. Select the Obtain an IP address automatically and the Obtain DNS server address automatically radio buttons. 6. Click OK to finish the configuration. Configuring PC in Windows 95/98/ME 1. Go to Start / Settings / Control Panel. In the Control Panel, double- click on Network and choose the Configuration tab.
  • Page 16 Billion BIPAC 7100S ADSL Modem/Router 4. Select the IP Address tab. In this page, click the Obtain an IP address automatically radio button. 5. Then select the DNS Configuration tab. 6. Select the Disable DNS radio button and click OK to finish the configuration.
  • Page 17 Configuring PC in Windows NT4.0 1. Go to Start / Settings / Control Panel. In the Control Panel, double- click on Network and choose the Protocols tab. 2. Select TCP/IP Protocol and click Properties. Chapter 3 Configuration...

  • Page 18: Factory Default Settings

    Billion BIPAC 7100S ADSL Modem/Router 3. Select the Obtain an IP address from a DHCP server radio button and click OK. 3.2 Factory Default Settings Before you configure this device, you need to know the following default settings. 1. Web Configuration Password: There are two levels of password protection, Administrator Level and User Level.

  • Page 19: Password

    3.2.1 Password The default username and password are admin and password respectively. If you ever forget the password to log in, you may press the RESET button up to 2 seconds to restore the factory default settings. 3.2.2 LAN and WAN Port Addresses The parameters of LAN and WAN ports are pre-set in the factory.

  • Page 20: Configuring With Web Browser

    Billion BIPAC 7100S ADSL Modem/Router VPI/VCI, VC-based/LLC-based multiplexing, IP address, Subnet mask, IPoA Gateway address, and Domain Name System (DNS) IP address (it is fixed IP address). 3.4 Configuring with Web Browser The ADSL Modem/Router can be configured with your Web browser. The web browser is included as a...

  • Page 21: Status

    At the configuration homepage, the left navigation pane where bookmarks are provided links you directly to the desired setup page, including: Quick Start Configuration (LAN, WAN, Firewall, System, VPN, Virtual Server, Advanced and Help) Status (System Status, Device Info, System Logs, Security Logs, ARP Cache Table, DHCP Table, Routing Table and VPN Connect Status) 3.4.1 Status The Status section provides and contains many items including device H/W and S/W information, LAN,...

  • Page 22: Status - Adsl Status

    Billion BIPAC 7100S ADSL Modem/Router 3.4.1.1 Status – ADSL Status Displays the status of your ADSL connection. It will refresh every two seconds. 3.4.1.1.1 ADSL Status – WAN Status...

  • Page 23: Adsl Status - Atm Status

    Chapter 3 Configuration 3.4.1.1.2 ADSL Status – ATM Status 3.4.1.2 Status – LAN Status Displays the status of your Local Area Network (LAN) connection.

  • Page 24: Lan Status - Tcp Status

    Billion BIPAC 7100S ADSL Modem/Router 3.4.1.2.1 LAN Status – TCP Status 3.4.1.3 Status- PPP Status Displays the status of your PPP connection. It will refresh every ten seconds.

  • Page 25: Status- Learned Mac Table

    3.4.1.4 Status- Learned MAC Table Aging Timeout: Enter the time period for the router to memorize MAC addresses. 3.4.1.5 Routing Table Display the current routing paths of BIPAC 7100S. Chapter 3 Configuration...

  • Page 26: System Log

    Billion BIPAC 7100S ADSL Modem/Router 3.4.1.6 System Log Display the system logs cumulated till the present time. You can trace the historical information through this function. 3.4.1.7 Security Logs Display the information of security logs. If hacker attacks your sever, he will be isolated by the firewall...

  • Page 27: Quick Start

    Internet immediately. If not, please refer to the sections below for more information. 3.4.3 Configuration When you click this item, you get following sub-items to configure BIPAC 7100S. LAN, WAN, Firewall, System, VPN, Virtual Server, Advanced and Help 3.4.3.1 WAN...
  • Page 28 Billion BIPAC 7100S ADSL Modem/Router Select the item of PVCs you want to configure. Then, press the Submit button.
  • Page 29 Chapter 3 Configuration Virtual Circuit Virtual Circuit: Enable/Disable the settings of this VC. Bridge: If you set this device to be bridge mode, select Enable; if not, please select Disable. IGMP: You can Enable or Disable this function. Encapsulation: There are eleven ways ─ PPPoE VC-Mux, PPPoE LLC, PPPoE None, PPPoA VC-Mux, PPPoA LLC, 1483 Bridged IP VC-Mux, 1483 Bridged IP LLC, 1483 Routed IP VC-Mux, 1483 Routed IP LLC, Classical IP over ATM, Native ATM ─...
  • Page 30 Billion BIPAC 7100S ADSL Modem/Router VCI: Consult the telephone company to get the Virtual Channel Identifier (VCI) number. The default value is 32. Service Category: Select UBR or CBR. DHCP Client DHCP Client: Check to enable the DHCP client function if you want the device to get an IP address automatically from your ISP.

  • Page 31: Lan

    Chapter 3 Configuration Automatic Reconnect: Check to enable this device to automatically re-establish the PPPoE session when disconnected by ISP. 3.4.3.2 LAN This screen contains settings for LAN interface attached to the LAN port. Device IP Address IP Address: Default at 192.168.1.254. This is the device IP address in LAN site.

  • Page 32: System

    Billion BIPAC 7100S ADSL Modem/Router With this case, the DHCP pool is from 192.168.1.100 to 192.168.1.199. Therefore, the local computer will get an IP address located at this range randomly. Lease Time: Set the lease time you required. User Mode: There are two selections, Single User and Multi-User, for this setting.

  • Page 33: Time Zone

    3.4.3.3.2 Time Zone BIPAC 7100S does not have a real time clock on board; instead, it uses the simple network time protocol (SNTP) to get the current time from the SNTP server in outside network. Please choose your local time zone and click Submit.

  • Page 34: Upgrade

    Billion BIPAC 7100S ADSL Modem/Router 3.4.3.3.3 Upgrade To upgrade the firmware of BIPAC 7100S, you should download or copy the firmware to your local environment first. Press the “Browse…” button to specify the path of the firmware file. Then, click “Upgrade”...

  • Page 35: Restart

    Chapter 3 Configuration 3.4.3.3.5 Restart In case the router stops responding correctly or in some other way stops functioning, you can perform the restart. Your setting won’t be changed. Performing the restart, click on the Submit button.

  • Page 36: Firewall

    Billion BIPAC 7100S ADSL Modem/Router 3.4.3.4 Firewall User can decide to enable this firewall function including Packet Filter, Block Hacker Attack, and Block WAN request features for better security control or not. But be noted, it wastes network processor computation power. The performance will be lower about 10% to 15%. More firewall features will be added continually, please visit our web site to download latest firmware.
  • Page 37 Outgoing Incoming: Determine whether the rule is for outgoing packets or for incoming packets. Active: Choose “Yes” to enable the rule, or choose “No” to disable the rule. Packet Type: Specify the packet type (TCP, UDP, ICMP or any) that the rule will be applied to. Select TCP if you want to scope for the connection-based application service on the remote server using the port number.

  • Page 38: Bridge Filtering

    Billion BIPAC 7100S ADSL Modem/Router 3.4.3.4.2 Bridge Filtering Enable Bridge Filtering: Check Yes to enable this function or check No to disable. Src MAC: Enter the source MAC address. Dest MAC: Enter the destination MAC address. Type: Enter the Ethernet type.

  • Page 39: Block Wan Request

    Snork Attack UDP port loop-back TCP NULL scan 3.4.3.4.4 Block WAN Request Check “Enable” if you want to exclude outside PING request from reaching on this router. Chapter 3 Configuration...

  • Page 40: Url Blocking

    Billion BIPAC 7100S ADSL Modem/Router 3.4.3.4.5 URL Blocking URL blocking function enables you to avoid your LAN PCs from accessing some URLs. You must check the “Enable” radio button to make the following figure appear for further configuration. Always Block: Check this will block all browsing requests from PCs Block: to specify the time period when you want this function activated.

  • Page 41: Vpn (Virtual Private Networks)

    Chapter 3 Configuration 3.4.3.5 VPN (Virtual Private Networks) we will introduce the VPN settings to establish a secure communication path with remote site based on IPsec. Please check “Enable” and click “Add” button. Then you will see IKE Setup page as below figure. Then, you can configure the rule as your security plan.
  • Page 42 Billion BIPAC 7100S ADSL Modem/Router Remote Subnet Mask: The range of remote IPs can be communicated. For example, it is 255.255.255.0. Proposal: There are two methods to check the authentication information, AH (authentication header) and ESP (Encapsulating Security Payload). ESP: Data will be encrypted and/or authentic. DES and 3DES encryption methods are supported. The DES uses 56 bits as an encryption method.

  • Page 43: Virtual Server

    Chapter 3 Configuration 3.4.3.6 Virtual Server Being a natural Internet firewall, the ADSL Router protects your network from being accessed by outside users. When it needs to allow outside users to access internal servers, e.g. Web server, FTP server, E- mail server or News server, this product can act as a virtual server.

  • Page 44: Advanced

    Billion BIPAC 7100S ADSL Modem/Router Port Type: Select TCP if you want to scope for the connection-based application service on the remote server using the port number. Or select UDP if you want to scope for the connectionless application service on the remote server using the port number.

  • Page 45: Dynamic Dns

    Chapter 3 Configuration You can obtain Domain Name System (DNS) IP address automatically if ISP provides it when you logon. Or your ISP may provide you with an IP address of DNS. If this is the case, you must enter the DNS IP address.

  • Page 46: Nat

    Password: Enter the password used for sign-up. Period: Set the time period for the Router to exchange information with the DDNS server. In addition to update periodically according to this period setting, BIPAC 7100S will take the same action automatically whenever the assigned IP changes 3.4.3.7.4 NAT...
  • Page 47 Chapter 3 Configuration User’s IP: Allows the user to assign the IP address to map the corresponding NAT/NAPT sessions. Session Name status will be displayed at the middle of this page to show the corresponding Session Name with its IP address. Click Session Name Configuration, the following screen displays.

  • Page 48: Rip

    Billion BIPAC 7100S ADSL Modem/Router 3.4.3.7.5 RIP RIP: Default is Disabled. Border Gateway: Default is Enabled. Supply Interval seconds: The default value is 30 seconds. Expire Timeout seconds: The default value is 180 seconds. Garbage Timeout seconds: The default value is 120 seconds.

  • Page 49: Snmp

    Chapter 3 Configuration 3.4.3.7.6 SNMP Simple Network Management Protocol (SNMP) is an optional feature that may or may not be supported by your ADSL Bridge/Router. SNMP is an application layer protocol that is used for managing networks. SNMP is an optional feature that may or may not be in the specific firmware that you are working with.

  • Page 50: Static Routing

    Billion BIPAC 7100S ADSL Modem/Router 3.4.3.7.7 Static Routing If you have another router with a LAN-to-LAN connection, you may create a static routing on the router that is the gateway to Internet. Add: Click this button to add a new static routing. When you click this button, the next figure appears.

  • Page 51: Misc Configuration

    3.4.3.7.8 MISC Configuration HTTP server access: Default at Restricted. HTTP server port: Default at 80. FTP server: Default at Enabled. TFTP server: Default at Disabled. DMZ: Regarding the DMZ Host, it is a local computer exposed to the Internet. Therefore, an incoming packet will be checked by NAT algorithms in the ADSL Router, then passed to the DMZ host when the packet is not sent by hacker or not limited by the virtual server list.
  • Page 52 Billion BIPAC 7100S ADSL Modem/Router Checking LAN Connection Testing Ethernet LAN connection This test passes if the Ethernet LAN interface is working properly. Checking ADSL Connection Testing ADSL Synchronization This test checks your DSL modem to see if it can successfully negotiate and establish a DSL connection with your service provider's central office equipments.
  • Page 53 Chapter 3 Configuration Test ATM OAM End-to-End Loop Back This test sends ATM OAM F5 End-to-End loop back request cells to the central office equipments through your DSL connection. This test returns PASS if response cell is received. Since your service provider might not support this test, your DSL modem could still work even if this test fails.

  • Page 54: Save Config

    3.4.4 Save Config Click the Submit button to write settings to flash. Then, the system will reboot for changes to take effect.

  • Page 55: Chapter 4

    If the ADSL Router is not functioning properly, you can refer first to this chapter for simple troubleshooting before contacting your service provider. This could save your time and effort but if the symptoms persist, then consult your service provider. Problems Starting Up the ADSL Router Problem None of the LEDs are on...

  • Page 56: Appendix

    Most problems can be solved by referring to the Troubleshooting section in the User’s Manual. If you cannot resolve the problem with the Troubleshooting chapter, please contact the dealer where you purchased this product. Contact Billion AUSTRALIA http://www.billion.com.au/ ©2004 Billion Electric Co., Ltd. PC Range P/L. All Rights Reserved. WORLDWIDE http://www.billion.com/ APPENDIX...
