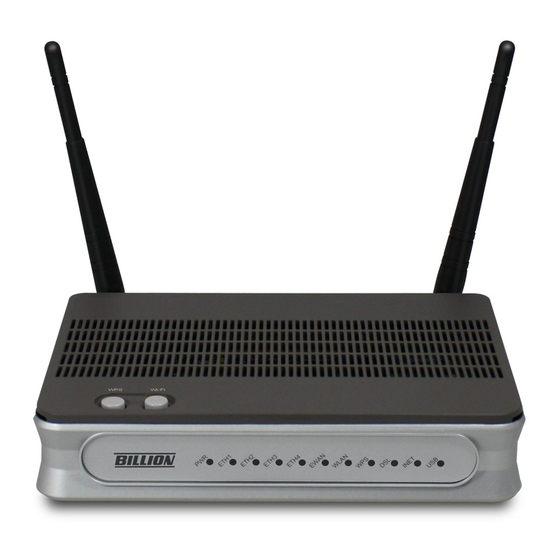

BiPAC 8800NL
ADSL2/2+ Modem
VDSL2 Modem (FFTC Fibre)
Wireless N Router
3 x10/100 switch plus 1 x GigaPort
UK Quick Install Guide
This guide covers only the initial
Internet set-up and other basic
configuration. Please refer to the
full User Manual on the CD-
ROM for more advanced
settings. Screen shots in this
guide may vary slightly from the
actual router. Telephone Support
is available during office hours
from Mon-Fri 10am–5pm on
0203 372 0120.
www.billion.uk.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the BiPAC 8800NL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Billion BiPAC 8800NL

Summary of Contents for Billion BiPAC 8800NL

  • Page 1 BiPAC 8800NL ADSL2/2+ Modem VDSL2 Modem (FFTC Fibre) Wireless N Router 3 x10/100 switch plus 1 x GigaPort UK Quick Install Guide This guide covers only the initial Internet set-up and other basic configuration. Please refer to the full User Manual on the CD- ROM for more advanced settings.
