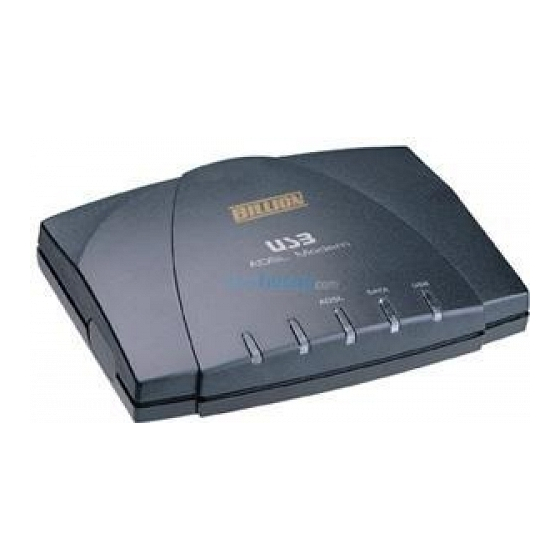

BIPAC 7000
ADSL USB Modem
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BIPAC 7000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Billion BIPAC 7000

Summary of Contents for Billion BIPAC 7000

  • Page 1 BIPAC 7000 ADSL USB Modem User’s Manual...

  • Page 3: Table Of Contents

    Chapter 1 ...1 Introduction ... 1 1.1 Billion ADSL USB Modem Features ... 1 1.2 Package Contents 1.3 The Front Panel LEDs 1.4 Information from ISP Chapter 2 ...3 Installation ... 3 2.1 Installing Billion ADSL USB Modem 2.2 Installing Billion ADSL USB Modem Drivers 2.2.1 For Windows: ...4 2.2.2 For Mac OS 9...5 2.2.3 For Mac OS X ...6...
  • Page 4 BILLION BIPAC-7000 ADSL USB Modem 4.4.11 Advance – ATM Status...24 4.4.12 Advance – TCP Status ...25 4.4.13 Advance – ADSL Configuration...25 4.4.14 Save Settings ...26 APPENDIX A...27 Product Support... 27...

  • Page 5: Chapter 1

    1.1 Billion ADSL USB Modem Features Billion ADSL USB Modem provides the following features: ♦ Bus-powered USB modem for broadband ADSL. ♦ Downstream data rate up to 8 Mbps and upstream up to 1 Mbps. ♦ No external power supply is required. ♦...

  • Page 6: The Front Panel Leds

    BILLION BIPAC-7000 ADSL USB Modem 1.3 The Front Panel LEDs DATA ADSL 1.4 Information from ISP Before start installing this device, you have to check with your ISP on what kind of service (connection method) is provided such as PPPoE, PPPoA, RFC1483 bridged or routed, IPoA.

  • Page 7: Chapter 2

    2.1 Installing Billion ADSL USB Modem Please refer to the following instructions and figures: 1. Connect ADSL telephone cable to the LINE RJ-11 jack. 2. Connect the USB cable to the USB port and connect the other end to the PC. Chapter 2 Installation...

  • Page 8: Installing Billion Adsl Usb Modem Drivers

    BILLION BIPAC-7000 ADSL USB Modem 2.2 Installing Billion ADSL USB Modem Drivers 2.2.1 For Windows: Simply follow the instructions below which outline what you need to do. This section is described based on Windows XP/ 2000/Me/98 and the systems will automatically acknowledge the modem has been connected to your computer.

  • Page 9: For Mac Os 9

    5. The Status Task Bar will appear on the System Tray. 2.2.2 For Mac OS 9 If you connect the ADSL Modem/Router through USB port, for the first time the USB cable is connected to the PC, the host PC OS will automatically detect the device. Follow the steps to install the USB driver.

  • Page 10: For Mac Os X

    BILLION BIPAC-7000 ADSL USB Modem 2.2.3 For Mac OS X 1. Insert the installation CD into the CD-ROM drive, click the driver installer. 2. Input the user name and password of your Mac system. 3. Click “Continue”.
  • Page 11 4. Select a destination to install the driver, choose Mac X. 5. Click “Continue”. 6. Click “Continue Installation” to end the installation.

  • Page 12: For Linux Redhat 7.1/7.2/8.0/9.0

    BILLION BIPAC-7000 ADSL USB Modem 2.2.4 For Linux Redhat 7.1/7.2/8.0/9.0: nstall the driver (Redhat 7.1) #rpm –ivh BIPAC-7000-REDHAT-7.1.i386.rpm (Redhat 7.2) #rpm –ivh BIPAC-7000-REDHAT-7.2.i386.rpm (Redhat 8.0) #rpm –ivh BIPAC-7000-REDHAT-8.0.i386.rpm (Redhat 9.0) #rpm –ivh BIPAC-7000-REDHAT-9.0.i386.rpm 2. Launch the driver #cd /usr/local/e2 #insmod e2.o #ifconfig hsb0 up(Note: run this command after the READY LED blinks) #dhcpcd hsb0 (Note: run this command after the READY LED blinks) 3.

  • Page 13: Chapter 3

    Chapter 3 Configuration (For Windows) 3.1 Billion ADSL USB Modem Configuration Follow the instructions below to configure your Billion ADSL USB Modem first. 1. Click Billion ADSL USB Modem icon in the Control Panel or ADSL Configuration icon on the desktop. The status of ADSL connection will be displayed.
  • Page 14 BILLION BIPAC-7000 ADSL USB Modem 3. Select the Protocol Setup tag, please set the value of “VPI”, “VCI” and “Encapsulation Mode”. Then, click “OK”. （Note：Be sure to use the correct VPI and VCI numbers supplied by your telephone company.）...

  • Page 15: Adsl Usb Wan Adapter Configuration

    3.2 ADSL USB WAN Adapter Configuration 1. After clicking on the ADSL Easy Dialup icon on the desktop, the following window will appear. Enter the “Username” and “Password” provided by your ISP. Let the Phone number field be blank. 2. Click Connect and get ready to surf the Internet!

  • Page 16: Chapter 4

    4.1 Configuring the Network Properties The ADSL USB Modem can be configured with your web browser, the default IP address of the ADSL USB Modem is 192.168.1.254 and subnet mask is 255.255.255.0. The ADSL USB Modem uses “Emulate USB port to Ethernet” technology to emulate the USB port to Ethernet port, the terminology “LAN”...

  • Page 17: Information From Isp

    4.3 Information from ISP Before start configuring this device, you have to check what kind of service is provided by your ISP, including the following: PPPoE VC-Mux PPPoE LLC PPPoE None PPPoA VC-Mux PPPoA LLC 1483 Bridged IP VC-Mux 1483 Bridged IP LLC 1483 Routed IP VC-Mux 1483 Routed IP LLC 10.

  • Page 18: Configuring With Web Browser

    BILLION BIPAC-7000 ADSL USB Modem PPPoA LLC 1483 Bridged IP LLC 1483 Bridged IP VC- 1483 Routed IP LLC 1483 Routed IP VC- Classical over 4.4 Configuring with Web Browser The ADSL USB Modem can be configured with your Web browser. Open the web browser, enter the local port IP address of the ADSL Router, which default at 192.168.1.254, and click “Go”...

  • Page 19: Status - Home Page

    Then, click “OK” to log in. You can modify the passwords for security and management purpose. At the configuration homepage, the left navigation pane where bookmarks are provided links you directly to the desired setup page. Click on the desired item to expand the page in the main navigation pane.

  • Page 20: Status - Ppp

    BILLION BIPAC-7000 ADSL USB Modem 4.4.3 Status – PPP Displays the status PPP for each PPP interface.

  • Page 21: Configuration - Wan Configuration

    4.4.4 Configuration – WAN Configuration The screens below contain settings for the WAN interface toward Internet. VPI: Consult the telephone company to get the Virtual Path Identifier (VPI) number. The default value is 8. VCI: Consult the telephone company to get the Virtual Channel Identifier (VCI) number. The default value is 35.
  • Page 22 BILLION BIPAC-7000 ADSL USB Modem If your encapsulation is set to be PPPoE or PPPoA, the following fields must be entered. Service Name: This item is for identification purpose. If it is required, your ISP will provide you the information. Maximum input is 31 alphanumeric characters. Username: Enter the username provided by your ISP.

  • Page 23: Configuration - Lan Configuration

    4.4.5 Configuration – LAN Configuration This screen contains settings for USB interface attached to the USB port. IP Address: Default at 192.168.1.254. This is the device IP address in LAN site. If you plan to change it to another IP address to a different range of IP subnet.

  • Page 24: System - Password Configuration

    BILLION BIPAC-7000 ADSL USB Modem You can obtain Domain Name System (DNS) IP address automatically if ISP provides it when you logon. Or your ISP may provide you with an IP address of DNS. If this is the case, you must enter the DNS IP address. 4.4.7 System –...
  • Page 25 Checking LAN Connection Testing Ethernet LAN connection This test passes if the Ethernet LAN interface is working properly. Checking ADSL Connection Testing ADSL Synchronization This test checks your DSL modem to see if it can successfully negotiate and establish a DSL connection with your service provider's central office equipments.
  • Page 26 BILLION BIPAC-7000 ADSL USB Modem If this test fails consistently and your DSL modem seems not working, check to make sure the VPI and VCI are configured correctly. This test returns FAIL if the DSL synchronization test failed. Test ATM OAM End-to-End Loop Back This test sends ATM OAM F5 End-to-End loop back request cells to the central office equipments through your DSL connection.
  • Page 27 your service provider through DHCP or your DSL modem is assigned a valid IP address statically. If this test returns FAIL, run this test again a few minutes after this test is completed. If this test returns FAIL consistently and DHCP client is turned on in your DSL modem, check with your service provider.

  • Page 28: System - System Log

    BILLION BIPAC-7000 ADSL USB Modem 4.4.9 System – System Log Display the system logs cumulated till the present time. You can trace the historical information through this function. It refreshes every five seconds. 4.4.10 Advance – WAN Status Each VC setting you enabled in the WAN Configuration section except that uses the PPP encapsulation will be displayed in this table.

  • Page 29: Advance - Tcp Status

    4.4.12 Advance – TCP Status Display the status of TCP. This screen will automatically refresh every two seconds. 4.4.13 Advance – ADSL Configuration Trellis: Default at Enabled. Handshake Protocol: Default at Autosense – G.dmt first. You can also choose other...

  • Page 30: Save Settings

    BILLION BIPAC-7000 ADSL USB Modem protocols, such as Autosense – T1.413 first, G.dmt/G.lite, T1.413, G.dmt, G.lite. Wiring Selection: Default at Tip/Ring. Select Auto or A/A1 if necessary. 4.4.14 Save Settings Click the Submit button to write settings to flash. Then, the system will reboot for changes to take effect.

  • Page 31: Appendix A

    Most problems can be solved by referring to the Troubleshooting section of this manual. If you cannot resolve the problem with the Troubleshooting chapter, please contact the dealer where you purchased this product. Contact Billion WORLDWIDE http://www.billion.com/ APPENDIX A Product Support...
