- Page 1 INSTALLATION, SERVICE AND MAINTENANCE INSTRUCTIONS CENTRIFUGAL PUMP WITH HELICOIDAL IMPELLER Original Instructions 01.214.30.03EN (0) 2021/04...
- Page 2 INOXPA S.A.U. Telers, 60 17820 - Banyoles (España) hereby declare under our sole responsibility that the CENTRIFUGAL PUMP WITH HELICOIDAL IMPELLER Machine: Model: RV-65, RV-80, RV-100 Type: IXXXXXX IXXXXXX Serial number: XXXXXXXXXIIN XXXXXXXXXIIN fulfills all the relevant provisions of the following directive: Machinery Directive 2006/42/EC Regulation (EC) nº...
-
Page 3: Table Of Contents
8.6. Cleaning ..............................15 8.7. Disassembly and assembly of the pump ....................16 9. Technical Specifications 9.1. Weights ..............................18 9.2. Dimensions ............................18 9.3. Exploded drawing ..........................19 9.4. Technical section and parts list ......................20 INOXPA S.A.U. 01.214.30.03EN · (0) 2021/04... -
Page 4: Generalities
The non-compliance of the prescribed indications in this manual means misuse of this gear on the technical side and the personal safety and this, exempt INOXPA of all responsibility in case of accidents and personal injuries and/or property damage. Also, excluded from the warranty all ... -
Page 5: Safety
ATTENTION 3.2. GENERAL SAFETY INSTRUCTIONS Read the instruction manual carefully before installing and starting the pump. Contact INOXPA in case of doubt. 3.2.1. During installation Always take into account the Technical Specifications of chapter 9. Never start the pump before connecting it to the lines. - Page 6 ALWAYS disconnect the electrical power to the pumps prior to carrying out any mainte- nance. Remove the fuses and disconnect the cable from the motor’s terminals. All electrical work must be carried out by authorized personnel. INOXPA S.A.U. 01.214.30.03EN · (0) 2021/04...
-
Page 7: General Information

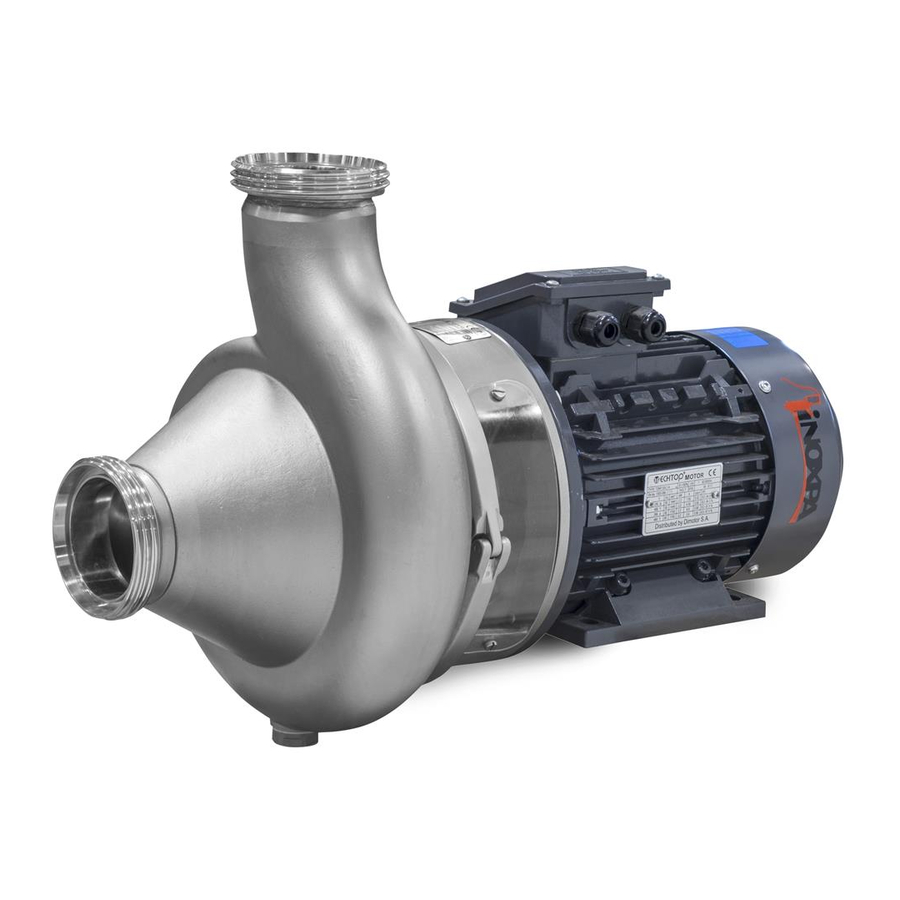

The centrifugal pumps with helicoidal impeller RV are monobloc pumps with axial suction and radial discharge and sanitary connections. The RV range is designed for continuous operation. The main components of the RV pump are a pump casing with drainage, a helicoidal impeller and a single mechanical seal in silicon carbide with EPDM seals. -
Page 8: Installation
Instalación 5. Installation 5.1. RECEPTION OF THE PUMP INOXPA cannot be held responsible for the damage sustained by the equipment during transport or unpacking. Please visually check that the packaging is not damaged. The pump package includes the following documents:... -
Page 9: Transport And Storage
Instalación 5.3. TRANSPORT AND STORAGE ATTENTION The RV pumps are often too heavy to be stored manually. Use an appropriate means of transport. Use the points which are indicated in the drawing for lifting the pump. Only authorized personnel should transport the pump. -
Page 10: Pipes
If the pump rotates in the wrong direction it could cause serious damage. ATTENTION See indicator label on the pump. ALWAYS check the direction of rotation of the motor with liquid inside the pump. INOXPA S.A.U. 01.214.30.03EN · (0) 2021/04... -
Page 11: Start-Up
Puesta en marcha 6. Start-up Before starting the pump, carefully read the instructions in section 5. Installation. Carefully read section 9. Technical Specifications. INOXPA will not be liable for impro- per use of the equipment. NEVER touch the pump or the lines of hot liquids are being pumped. 6.1. CHECKS BEFORE STARTING THE PUMP Before starting the pump:... - Page 12 Puesta en marcha Use special protection when the sound pressure in the operation area exceeds 85 dB(A). INOXPA S.A.U. 01.214.30.03EN · (0) 2021/04...
-
Page 13: Troubleshooting
The following table provides solutions to problems that might arise during the operation of the pump. The pump is assumed to have been properly installed and be suitable for the relevant application. Please contact INOXPA if technical assistance is required. Motor overload The pump does not provide enough flow or pressure... -
Page 14: Maintenance
During assembly, use soapy water or oil compatible for the Lubrication food industry when fitting the different gaskets to allow them to slide better. The period between each preventive maintenance service will vary depending on the operating condition of the pump: temperatures, flow, number of operating hours, cleaning solutions used, etc. 8.4. TIGHTENING TORQUE Size lbf·ft INOXPA S.A.U. 01.214.30.03EN · (0) 2021/04... -
Page 15: Storage
1) only use chlorine-free water to mix with the cleaning agents ATTENTION Check the concentration of the cleaning solutions. Incorrect concentrations may lead to the deterioration of the pump seals. To remove any traces of cleaning products ALWAYS perform a final rinse with clean water at the end of the cleaning process. INOXPA S.A.U. 01.214.30.03EN · (0) 2021/04... -
Page 16: Disassembly And Assembly Of The Pump
Incorrect assembly or disassembly may cause damage in the pump’s operation and lead to high repair costs and a long period of downtime. INOXPA is not responsible for accidents or damages cause by a failure to comply with the instructions in this manual. - Page 17 8.4. Tightening torque. 2. Slide the splash ring (82) over the pump shaft (05) without pushing it to the end. 3. Mount the lantern (04) and fix it with the hexagonal screws (52) and their grower washers (53). 4. Place the stationary part of the mechanical seal (08) in the lantern (04) taking into account the position of the impeller knob. 5. Mount the rotary part of the mechanical seal (08) by entering the seal through the pump shaft (05). 6. Check that the assembly dimension “A” of the following figure like the same detailed in the next table. Pump Seal RV-65 Ø25 40,5±0,5 RV-80 Ø30 42,5±0,5 RV-100 7. Place the key (61) and continue with the assembly of the pump casing and impeller according to chapter 8.7.1. Pump casing and impeller. INOXPA S.A.U.
-
Page 18: Technical Specifications
60-80 dB(A) Suction/discharge connections DIN 11851 Materials Parts in contact with the product 1.4404 (AISI 316L) Other parts in stainless steel 1.4301 (AISI 304) Seals in contact with the product EPDM - standard Other materials for the seal consult with INOXPA Internal surface finish polished or matt External surface finis matt Mechanical seal Type single mechanical seal Material of stationary part silicon carbide (SiC) Material of rotary part ... -
Page 19: Exploded Drawing
Especificaciones Técnicas 9.3. EXPLODED DRAWING INOXPA S.A.U. 01.214.30.03EN · (0) 2021/04... -
Page 20: Technical Section And Parts List
1.4404 (AISI 316L) shaft 1.4404 (AISI 316L) mechanical seal Si/Si/EPDM retention ring 1.4301 (AISI 304) protection methacrylate hexagonal screw allen screw allen screw hexagonal screw grower washer flat washer 1.4404 (AISI 316L) O-ring EPDM gasket PTFE splash ring drain plug motor 1) recommended spare parts INOXPA S.A.U. 01.214.30.03EN · (0) 2021/04... - Page 21 NOTES ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________...
- Page 22 NOTES ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________...
- Page 23 NOTES ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________...
- Page 24 How to contact INOXPA S.A.U.: Contact details for all countries are continually updated on our website Please visit www.inoxpa.com to acces the information. INOXPA S.A.U. Telers, 60 - 17820 - Banyoles - Spain...
