Hioki RM2610 Instruction Manual

Hioki RM2610 Instruction Manual

Electrode resistance measurement system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

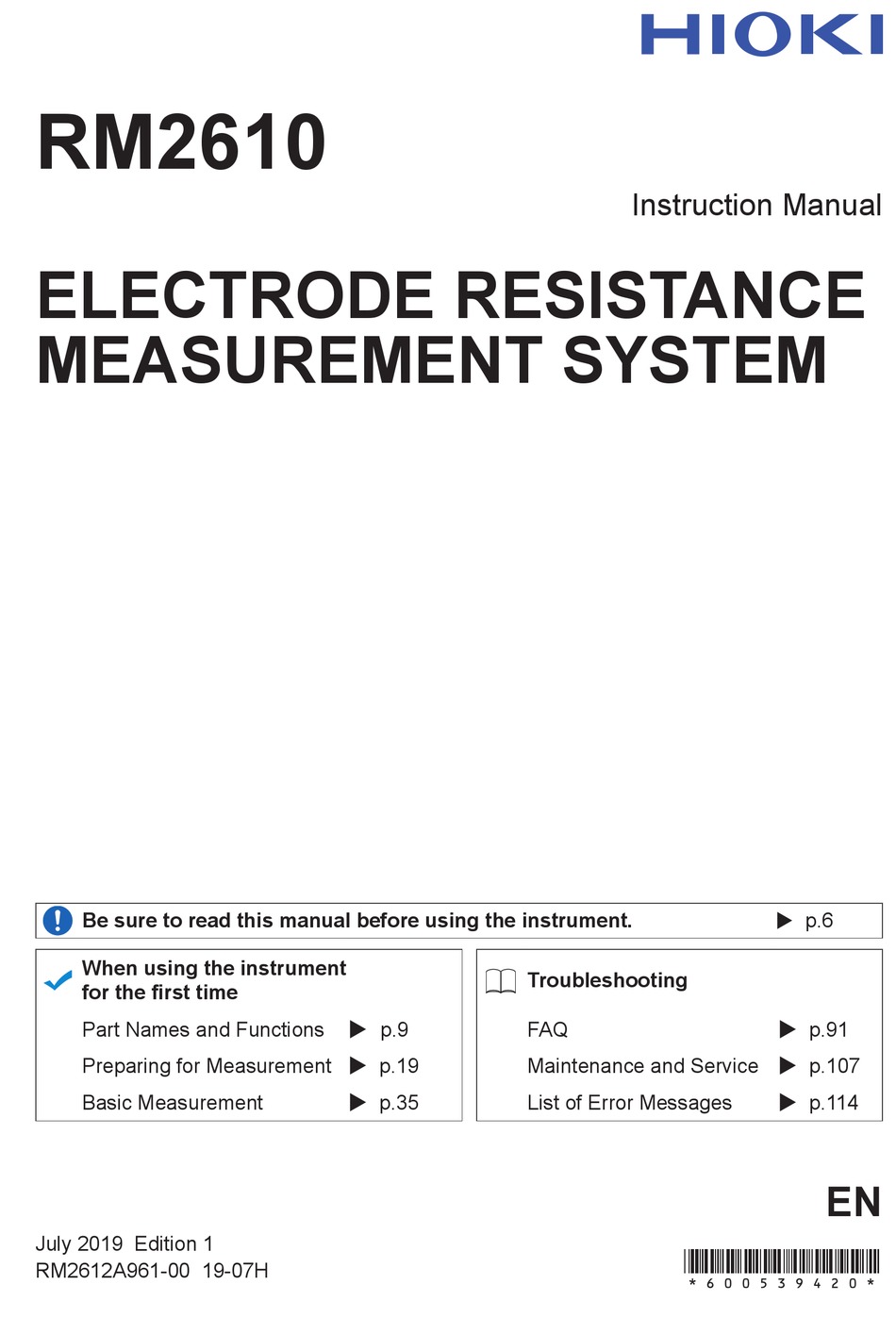

RM2610
ELECTRODE RESISTANCE
MEASUREMENT SYSTEM
Be sure to read this manual before using the instrument.
When using the instrument
for the first time
Part Names and Functions
Preparing for Measurement
Basic Measurement
July 2019 Edition 1
RM2612A961-00 19-07H
p.9
p.19
p.35
Instruction Manual
Troubleshooting
FAQ
Maintenance and Service
List of Error Messages
 p.6
p.91
p.107
p.114
EN

Advertisement

Table of Contents
loading

Related Manuals for Hioki RM2610

Summary of Contents for Hioki RM2610

  • Page 1 RM2610 Instruction Manual ELECTRODE RESISTANCE MEASUREMENT SYSTEM Be sure to read this manual before using the instrument.  p.6 When using the instrument Troubleshooting for the first time Part Names and Functions p.91   Preparing for Measurement p.19 Maintenance and Service p.107...

  • Page 3: Table Of Contents

    Basic Measurement Product Overview and Features ...9 Setting the Operating Mode ....35 Part Names and Functions ....9 Setting the Resistance Range ....37 RM2610 Electrode Resistance 3.3 Configuring the Contact Check .........9 Measurement System Function ..........38 ..10 RM2611 Electrode Resistance Meter 3.4 Saving Contact Check Results ...40 ........12...
  • Page 4 Contents Analysis Maintenance and Service Analyzing One Potential Measurement under Multiple Troubleshooting ........109 Conditions ..........69 ..109 Before having your product repaired Updating the Software .......110 Saving and Loading Initializing the Software ...... 111 ......112 Factory default settings Measurement Conditions List of Error Messages .......114 ..114 RM2611 Electrode Resistance Meter...

  • Page 5: Measurement Process

    USB cable. Connecting the equipment (p.  2 4) • Turn on the RM2611 Electrode Resistance Meter. Check to ensure the RM2610 Electrode Resistance Measurement Completing the pre-start System and optional equipment are not experiencing any inspection (p.  3 2) malfunctions or failures.

  • Page 6: Introduction

    Introduction Introduction Thank you for choosing the Hioki RM2610 Electrode Resistance Measurement System. Preserve this manual carefully and keep it handy to make full use of this product for a long time. Familiarize yourself with the separate document entitled “Operating Precautions” before using the product.

  • Page 7: About The Notations Used In This Manual

    About the Notations Used in This Manual About the Notations Used in This Manual Safety notations This manual classifies seriousness of risks and hazard levels as described below. Indicates an imminently hazardous situation that will result in death of or serious DANGER injury to the operator.
  • Page 8 About the Notations Used in This Manual Accuracy notations Hioki defines measurement tolerances in terms of f.s. (full scale), rdg. (reading), dgt. (digit), and setting values, as indicated below. (Maximum display value) f.s. The maximum displayable value or scale length. This is usually the name of the currently selected range.

  • Page 9: Product Components

    • Instruction manual*  Options are subject to change. Please check Hioki’s website for the latest information. The latest version of each instruction manual can be downloaded from Hioki’s website. The PC application software can be updated to the latest version (p.  1 10).

  • Page 10: Operating Precautions

    • Place the disc in a protective case and avoid exposure to direct sunlight as well as high temperature and humidity. • Hioki is not liable for any computer system issues arising from, or accompanying, use of this disc.
  • Page 11 • Always use the test fixture case when storing or transporting the test fixture. • Electrode sheets that have been measured by the instrument cannot be used in production batteries due to pressure marks left by the probes. Hioki is not liable for use of electrode sheets after measurement.
  • Page 12 Operating Precautions...

  • Page 13: Overview

    Probes can easily be inspected and cleaned since the system is designed so that the tips of the probes can be rotated to face forward without removing the RM9004 Test Fixture from the RM9003 Press Unit. 1.2 Part Names and Functions RM2610 Electrode Resistance Measurement System RM2612 Resistance Calculation Software RM9005 Connection Cable...

  • Page 14: Rm2611 Electrode Resistance Meter

    Part Names and Functions RM2611 Electrode Resistance Meter CAUTION Do not connect anything to the maintenance ports (labeled “6” and “7” in the figure below). Connecting a cable to the maintenance ports could cause instrument malfunction or damage. (Rear) (Front) Keys (Front) (Rear)
  • Page 15 Fuse holder Holds the fuse that protects the measurement circuit. This is not a customer-replaceable part. Please contact your authorized Hioki – distributor or reseller if you have an issue with the fuse.

  • Page 16: Rm9003 Press Unit

    Part Names and Functions RM9003 Press Unit CAUTION To avoid equipment damage, turn off the RM2611 Electrode Resistance Meter before connecting or disconnecting the RM9005 Connection Cable. IMPORTANT • When connecting the RM9005 Connection Cable, insert the cable into the connector firmly and tighten it in place with screws.
  • Page 17 Part Names and Functions Name Description Up/down lever Raises and lowers the RM9004 Test Fixture. – Test fixture clamp knob Rotates the RM9004 Test Fixture’s probe toward the front. (The p.  1 18 knob is used when cleaning the RM9004 Test Fixture.) Test fixture insertion rail Guides the RM9004 Test Fixture as it is inserted.

  • Page 18: Rm9004 Test Fixture

    The RM9004 Test Fixture’s probes are consumable parts. They require periodic replacement but are not customer-replaceable. Please contact your authorized Hioki distributor or reseller for more information. It is recommended to purchase a spare RM9004 Test Fixture since the probe replacement process is time- consuming.
  • Page 19 Part Names and Functions Bottom and rear of the RM9004 Test Fixture (Rear) (Bottom) Name Description Connector Connect the RM9005 Connection Cable here. p.  2 5 Ground terminal Connect the RM9003 Press Unit’s grounding cable here. It is recommended to connect the cable to the terminal in order to p. ...

  • Page 20: Usb License Key And Screens (Rm2612 Resistance Calculation 3.6 Software)

    USB License Key and Screens (RM2612 Resistance Calculation Software) 1.3 USB License Key and Screens (RM2612 Resistance Calculation Software) USB license key CAUTION Exercise care when using the USB license key because static electricity could damage the USB license key or cause a malfunction of the product. IMPORTANT License authentication is performed when the RM2612 Resistance Calculation Software is launched and when measurement is started.

  • Page 21: Settings Screen

    USB License Key and Screens (RM2612 Resistance Calculation Software) Settings screen The Settings screen is used to configure detailed settings such as the operating mode and measurement conditions.
  • Page 22 USB License Key and Screens (RM2612 Resistance Calculation Software)

  • Page 23: Preparing For Measurement

    PC application can be updated. For more information, see “9.2 Updating the Software” (p.  1 10). Installation confirmation items and precautions What the RM2612 Resistance Calculation Software includes • Dedicated Hioki USB driver • RM2612 Resistance Calculation Software: setup_RM2612App_v(version number)*.exe * The version number enclosed in the parentheses indicates the software version number.

  • Page 24: Installation Procedure

    Installing the RM2612 Resistance Calculation Software Installation procedure Install all of the following: • Microsoft .NET Framework 4.8 or later • USB driver • RM2612 Resistance Calculation Software Installing Microsoft .NET Framework 4.8 ® Download and install the Microsoft .NET Framework from the Microsoft website (see URL below) (download the runtime version).
  • Page 25 PC for the first time. The following procedure can be skipped if the dedicated USB driver has already been installed on your PC. The USB driver can be found on the RM2612 Resistance Calculation Software’s PC application CD or downloaded from the Hioki website (http://www.hioki.
  • Page 26 Installing the RM2612 Resistance Calculation Software Installing the RM2612 Resistance Calculation Software Log in to the PC with administrative privileges, for example as “administrator.” Exit all applications running on the PC. Double-click on [setup_RM2612App_ v (version number).exe] on the RM2612 Resistance Calculation Software’s PC application CD.
  • Page 27 Installing the RM2612 Resistance Calculation Software Choose [Create a desktop icon] and click [Next]. Review the settings and click [Install]. The installation will continue. Click [Finish]. An icon will be created on the desktop. Installation is complete IMPORTANT The RM2612 Resistance Calculation Software will not launch without a USB license key (p. ...

  • Page 28: Mounting The Rm9004 Test Fixture On The Rm9003 Press Unit

    Mounting the RM9004 Test Fixture on the RM9003 Press Unit 2.2 Mounting the RM9004 Test Fixture on the RM9003 Press Unit IMPORTANT Exercise care not to lose the test fixture case’s mounting screws, which you will need in order to store the RM9004 Test Fixture during transport.

  • Page 29: Connecting The Rm9005 Connection Cable

    Connecting the RM9005 Connection Cable 2.3 Connecting the RM9005 Connection Cable CAUTION To avoid damaging the cable, connect and disconnect the RM9005 Connection Cable only after turning off the RM2611 Electrode Resistance Meter. IMPORTANT When connecting the RM9005 Connection Cable, tighten the screws after securely inserting the connector. Loose screws could result in incomplete contact, causing measurement errors.

  • Page 30: Connecting The Rm2611 Electrode Resistance Meter's Power Cord

    Connecting the RM2611 Electrode Resistance Meter’s Power Cord 2.4 Connecting the RM2611 Electrode Resistance Meter’s Power Cord Verify that the RM2611 Electrode Resistance Meter’s main power switch (on the rear of the instrument) is in the OFF (○) position. Verify that the outlet provides the correct supply voltage and connect the power cord to the power inlet on the instrument.

  • Page 31: Connecting The Rm2611 Electrode Resistance Meter To A Pc With A Usb Cable

    Connecting the RM2611 Electrode Resistance Meter to a PC with a USB Cable 2.5 Connecting the RM2611 Electrode Resistance Meter to a PC with a USB Cable CAUTION • Before connecting the USB cable to the PC, be sure that you have installed the RM2612 Resistance Calculation Software.

  • Page 32: Connecting The Z2001 Temperature Sensor

    Connecting the Z2001 Temperature Sensor 2.6 Connecting the Z2001 Temperature Sensor Connecting the Z2001 Temperature Sensor to the RM2611 Electrode Resistance Meter When connecting the Z2001 Temperature Sensor to the RM2611 Electrode Resistance Meter, insert the connector firmly as far as it will go. Verify that the RM2611 Electrode Resistance Meter’s main power switch (on the rear of the instrument) is in the OFF (○)

  • Page 33: Turning The Rm2611 Electrode Resistance Meter On And Off

    Turning the RM2611 Electrode Resistance Meter On and Off 2.7 Turning the RM2611 Electrode Resistance Meter On and Off Turning the main power switch on and off Place the RM2611 Electrode Resistance Meter’s main power switch (on the rear of the instrument) in the ON (|) or OFF (○) position.

  • Page 34: Launching The Rm2612 Resistance Calculation Software

    Launching the RM2612 Resistance Calculation Software 2.8 Launching the RM2612 Resistance Calculation Software IMPORTANT The RM2612 Resistance Calculation Software will not launch if the USB license key has not been inserted. Insert the USB license key into a USB port on the PC on which you wish to launch the RM2612 Resistance Calculation Software.

  • Page 35: Verify The Connection Between The Rm2611 Electrode Resistance Meter And The Pc

    If the instrument has not been connected to the PC with a USB cable, nothing will be displayed in the [Communications settings] field. • Have you installed the dedicated Hioki USB driver? (p.  1 9) If the USB driver has not been installed, nothing will be displayed in the [Communications settings] field.

  • Page 36: Pre-Use Inspection

    When you turn on the RM2611 Electrode If the HIOKI logo is not displayed on the screen, there Resistance Meter, is the HIOKI logo may be a wiring break in the power cord or internal displayed on the screen? damage in the RM2611 Electrode Resistance Meter.

  • Page 37: Short Inspection Method

    Pre-use Inspection SHORT inspection method You will need: The probe check board Verify that the up/down lever is in the raised position. Place the probe check board’s gold- plated conductive surface (the board came with the RM9004 Test Fixture) on the measurement stage.

  • Page 38: Open Inspection Method

    Pre-use Inspection OPEN inspection method You will need: The probe check board Verify that the up/down lever is in the raised position. Place the probe check board’s non- conductive surface (the board came with the RM9004 Test Fixture) on the measurement stage.

  • Page 39: Basic Measurement

    Basic Measurement 3.1 Setting the Operating Mode Choose [Settings]. Choose [Measurement]. Choose the [Mode] from the following options: Meas.+Analysis Perform potential measurement and analysis and save the results to a file. Meas. Perform potential measurement and save the results to a file. One file will be created for each measurement.
  • Page 40 Setting the Operating Mode About operating modes Start of measurement End of measurement Potential measurement Analysis Meas. Analysis Meas. + Analysis You can choose the operating mode in order to streamline measurement work. When measuring a [Meas.+Analysis] small number of electrode sheets, it is recommended to set the mode to so that potential measurement and analysis are performed for each sheet.

  • Page 41: Setting The Resistance Range

    Setting the Resistance Range 3.2 Setting the Resistance Range Auto range Select the optimal resistance range automatically (recommended). Resistance range When [Auto range] is disabled, allows you to select the resistance range you wish to use. The measurement current (output current) is displayed next to the resistance range.

  • Page 42: Configuring The Contact Check Function

    Configuring the Contact Check Function 3.3 Configuring the Contact Check Function The contact check function measures the contact resistance of the measurement target and probes before measurement to detect probe contact errors and prevent decreased reliability of measured values due to incomplete probe contact. The function can identify pins with incomplete contact and prevent measurement errors.
  • Page 43 Configuring the Contact Check Function Using the contact check function The contact check function improves the accuracy of potential measurement by detecting incomplete probe contact. Ordinarily you should enable the function, although you can shorten measurement times by disabling it. Change the setting as necessary. •...

  • Page 44: Saving Contact Check Results

    Saving Contact Check Results 3.4 Saving Contact Check Results Contact check results can be output to a file. The filename is generated by adding “CC_” to the beginning of the filename set as the analysis results path. Results will be appended to the file if the name of an existing file is entered as the analysis results path.

  • Page 45: Entering Electrode Sheet Information

    Entering Electrode Sheet Information 3.5 Entering Electrode Sheet Information In order to calculate electrode resistance, you will need to enter information about the electrode sheet being measured. Analysis cannot be performed without this information. IMPORTANT If the operating mode is set to [Analysis], the electrode sheet information stored in the specified potential data for analysis file will be used instead of the electrode sheet information on the screen.
  • Page 46 Entering Electrode Sheet Information Enter a comment if desired in the [Comment] field (up to 30 characters). The comment entered here will be added to the output file. Please note that commas (“,”) and semicolons (“;”) cannot be entered in this field.

  • Page 47: Saving Measured Values

    Saving Measured Values 3.6 Saving Measured Values Measurement results and potential distribution data for analysis are saved in the CSV format. If you choose the data you wish to output before measurement, a CSV file will be created when measurement ends. IMPORTANT Measurement results will not be saved if you do not choose which data to output.

  • Page 48: Saving The Current Measurement Results

    Saving Measured Values Saving the current measurement results Even if you did not choose data to save under [File output] before measurement, you can save the last analysis results and potential distribution data for analysis as a CSV file by choosing [Save file] on the [File]...

  • Page 49: Loading An Electrode Sheet Into The Rm9003 Press Unit

    Loading an Electrode Sheet into the RM9003 Press Unit 3.7 Loading an Electrode Sheet into the RM9003 Press Unit CAUTION Do not move the electrode sheet if the RM9004 Test Fixture is in contact with it. Doing so may damage the probes. Start measurement after verifying that the RM9004 Test Fixture is in contact with the electrode sheet.

  • Page 50: Operating The Rm9004 Test Fixture Using Only The Up/Down Lever (Disabling The Lock Release Lever)

    Loading an Electrode Sheet into the RM9003 Press Unit Operating the RM9004 Test Fixture using only the up/down lever (disabling the lock release lever) IMPORTANT When the lock release lever is disabled, the RM9004 Test Fixture can be raised and lowered using only the up/down lever.

  • Page 51: Starting Measurement

    Starting Measurement 3.8 Starting Measurement IMPORTANT • Allow the instrument to warm up for at least 60 minutes to ensure measurement accuracy. • Do not touch the RM9004 Test Fixture or other system components during measurement. Start Starts measurement. Abort Aborts measurement.

  • Page 52: Checking Measurement Results

    Checking Measurement Results 3.9 Checking Measurement Results Once potential measurement and analysis have completed normally, the measurement results will be displayed. IMPORTANT If the error rejection function is enabled, measured values will be shown in red if error data has been rejected.
  • Page 53 Checking Measurement Results Pin contact Result Indicates FAIL if there was a contact error or PASS if there was no contact error. Error count Indicates the number of probes exhibiting a contact error. Potential meas. reliability Consistency Indicates PASS if the relative magnitudes of the potential measurement results suggest the proper potential gradient near the center.
  • Page 54 Checking Measurement Results...

  • Page 55: Customizing Measurement Conditions

    Customizing Measurement Conditions 4.1 Choosing the Measurement Speed You can choose the measurement speed from four options: FAST, MEDIUM, SLOW1, and SLOW2. Choose [Settings]. Choose [Measurement]. Choose one of the following settings for [Speed]: FAST The measurement speed can be set to any of the following four values: FAST, MEDIUM, SLOW1, and SLOW2.

  • Page 56: Auto Start Function

    Auto Start Function 4.2 Auto Start Function The auto start function allows you to start measurement automatically when the probes make contact with an electrode sheet. Since measurement starts without requiring you to click [Start], this function is convenient when you need to measure multiple electrode sheets in a row. You can set the time (delay time) allowed to elapse from the time the probes make contact with the electrode sheet until measurement begins.

  • Page 57: Rejecting Error Data During Measurement (Error Data Rejection Function)

    Rejecting Error Data during Measurement (Error Data Rejection Function) 4.3 Rejecting Error Data during Measurement (Error Data Rejection Function) You can reject error data during measurement. Measurement will continue until a set threshold is exceeded, even if current errors, over-range errors, or contact errors are encountered. Rejected error data •...
  • Page 58 Rejecting Error Data during Measurement (Error Data Rejection Function) Enter the error data threshold at which you wish to stop measurement in the [Tolerance [%]] field. Valid setting range Initial value Format 0.1 to 100.0 20.0 1 significant decimal digit (0.0) Threshold (reference) Potential measurement will stop when an error exceeding the tolerance occurs.

  • Page 59: Choosing The Unit For Composite Layer Resistance

    Choosing the Unit for Composite Layer Resistance 4.4 Choosing the Unit for Composite Layer Resistance Ω You can set the unit used to measure composite layer resistance to either Volume resistivity [ Surface resistivity [ Ω cm ^2 Choose [Settings]. Choose [Measurement].

  • Page 60: Setting The Limit Iteration Number

    Setting the Limit Iteration Number 4.5 Setting the Limit Iteration Number This section describes how to set the limit on how many times analysis is performed. Choose [Settings]. Choose [Analysis]. Enter the upper limit for iterative calculations in the [Limit iteration number] field.

  • Page 61: Setting The Reduction Factor

    Setting the Reduction Factor 4.6 Setting the Reduction Factor You can set the magnitude of the correction applied during iterative calculation of interface resistance (i.e., the reduction factor) to a value from 0.0001 to 1.0000. Choose [Settings]. Choose [Analysis]. Enter the desired value in the [Reduction factor] field.

  • Page 62: Entering The Initial Iteration Value

    Entering the Initial Iteration Value 4.7 Entering the Initial Iteration Value This section describes how to enter the initial value for iterative calculations. 3, 4 Choose [Settings]. Choose [Analysis]. Choose one of the following initial resistance values for [Initial iteration value]: Auto calc....

  • Page 63: Choosing The Model Area

    Choosing the Model Area 4.8 Choosing the Model Area This section describes how to choose a model area according to the measurement precision you require. Although measurement precision increases in proportion to the model area, measurement times will increase as well. Choose [Settings].

  • Page 64: Choosing The Element Size (Resolution)

    Choosing the Element Size (Resolution) 4.9 Choosing the Element Size (Resolution) This section describes how to choose the element size (resolution). Choose [Settings]. Choose [Analysis]. Choose one of the following settings for [Element size]: NORMAL Perform measurements at the standard resolution. FINE Perform measurements at 4 times the standard resolution (NOMAL).

  • Page 65: Switching The Display Language

    Switching the Display Language 4.10 Switching the Display Language This section describes how to choose the display language used by the RM2612 Resistance Calculation Software. Japanese and English are available. Language 日本語 (Japanese) Use Japanese as the display language. English Use English as the display language.

  • Page 66: Checking The Software Version

    Checking the Software Version 4.11 Checking the Software Version This section describes how to check the PC application’s software version. IMPORTANT If you have Internet connectivity and can download files, the RM2612 Resistance Calculation Software’s PC application can be updated. For more information, see “9.2 Updating the Software” (p.  1 10). Choose [Version].

  • Page 67: Outputting A 2D Potential Distribution File

    It can be used when you wish to perform analysis using a method other than the RM2610 Electrode Resistance Measurement System. The output file uses a filename derived by adding “vpot_” to the beginning of the filename specified as the analysis results path.

  • Page 68: Choosing The Csv Save Format

    Choosing the CSV Save Format 4.13 Choosing the CSV Save Format This section describes how to set the decimal symbol and choose the data delimiter for analysis results files and 2D potential distribution files. IMPORTANT You cannot choose the comma (“,”) as both the decimal symbol and the data delimiter. Choose [Settings].

  • Page 69: Setting Whether To Beep At Measurement Completion

    Setting Whether to Beep at Measurement Completion 4.14 Setting Whether to Beep at Measurement Completion This section describes how to set whether to beep when measurement completes. Choose [Settings]. Choose [Measurement]. Choose one of the following settings for [Beep at finish]: Beep when measurement completes.

  • Page 70: Setting Administrator Mode

    This functionality is not ordinarily used. Configure this setting only when you need to perform a special operation or verify system operation. IMPORTANT Follow instructions from Hioki when inspecting the RM2611 Electrode Resistance Meter. Choose [Settings]. Choose [Administrator]. Enter the [Password] (default password: rm2612).
  • Page 71 Inspection results are output to a file, and you may be asked to send it to Hioki for examination. (A special jig is needed in order to inspect the RM2611.) Password Set the password for accessing administrator mode.
  • Page 72 Setting Administrator Mode...

  • Page 73: Analysis

    Analysis 5.1 Analyzing One Potential Measurement under Multiple Conditions Analysis can be performed continuously simply by specifying multiple analysis conditions for a single potential measurement datafile. When determining the analysis conditions, there is no need to perform multiple manual steps. The software can store up to 100 sets of conditions. Choose [Settings].
  • Page 74 Analyzing One Potential Measurement under Multiple Conditions Choose [Analysis]. Choose [Multiple]. Click [Settings]. Change the settings. The following four settings can be changed: Model area NORMAL, MEDIUM, WIDE Element size NORMAL, FINE, SUPER FINE Limit iteration number 1 to 999 (valid setting range) Reduction factor 0.0001 to 1.0000 (valid setting range)
  • Page 75 Analyzing One Potential Measurement under Multiple Conditions Cursor • Adding rows Click [Add Row] to add a row at the end of the list. • Deleting rows Move the cursor ( ) to the row you wish to delete and click [Del Row] to delete the selected row.
  • Page 76 Analyzing One Potential Measurement under Multiple Conditions Click [Apply] [OK] to accept the settings. (Clicking [OK] will cause you to return to the main screen.) Click [Start] to open a dialog box that will ask you to choose a file and start analysis. Number of multiple analysis Number of file being analyzed conditions set...

  • Page 77: Saving And Loading Measurement Conditions

    Saving and Loading Measurement Conditions 6.1 Saving Measurement Conditions This section describes how to save the current measurement conditions in a user-specified folder on the PC. Choose [Settings]. Choose [File]. Click [Save Configuration] to display the [Save settings file] dialog box. Provide a name for the file and choose a location in which to save the file.

  • Page 78: Loading Measurement Conditions

    Loading Measurement Conditions 6.2 Loading Measurement Conditions This section describes how to load previously saved measurement conditions. Choose [Settings]. Choose [File]. Choose [Load Configuration] to display the [Load settings file] dialog box. Choose the file you wish to load. Click [Open].

  • Page 79: Specifications

    Specifications Product components: See p.  5 . For more information about RM9003 Press Unit, RM9004 Test Fixture, and RM9005 Connection Cord specifications, please see those products’ respective instruction manuals. 7.1 RM2611 Electrode Resistance Meter General specifications Operating environment Indoors, Pollution Degree 2, altitude of up to 2000 m (6562 ft.) Operating temperature and humidity 0°C to 40°C (32°F to 104°F), 80% RH or less (no condensation) Storage temperature and humidity...
  • Page 80 RM2611 Electrode Resistance Meter Constant current generation range 10 μA (min.) to 10 mA (max.) For more information about range parameters, see “Table 1. RM2611 Electrode Resistance Meter Measurement Ranges” (p.  7 6). Test fixture connector D-sub 50-pin receptacle Temperature measurement terminal TEMP.SENSOR terminal (for connecting the instrument to the Z2001 Temperature Sensor) Test fixture connector pin assignments...
  • Page 81 Resistance measurement accuracy is defined when using the test fixture connector. conditions Guaranteed accuracy period: 1 year Guaranteed accuracy period after adjustment made by Hioki: 1 year Temperature and humidity for guaranteed accuracy: 23°C ±5°C (73°F ±9°F), 80% RH or less Warm-up time: 60 min.

  • Page 82: Rm2612 Resistance Calculation Software

    RM2612 Resistance Calculation Software 7.2 RM2612 Resistance Calculation Software General specifications ® Operating requirement CPU: Intel Core™ i7, 2.4 GHz, 4 threads or better (recommended) (PC) RAM: 8 GB or more recommended (4 GB available RAM required) Hard disk: 2 GB or more available space Display: 1024 ×...
  • Page 83 RM2612 Resistance Calculation Software Operating modes Operating modes (initial value: potential measurement + analysis) • Potential measurement + analysis • Potential measurement • Analysis Explanation of operation • Potential measurement + analysis: Instrument performs potential measurement and then analysis. • Potential measurement: Instrument saves measured potential data to a file (one file per measurement).
  • Page 84 RM2612 Resistance Calculation Software Entry of analysis conditions • Upper limit on iterative calculations: 1 to 999 calculations Initial value: 30 [calculations] Input format: 3-digit integer “000” • Reduction factor: 1.0E-4 to 1 Initial value: 1.0 Input format: Decimal, up to 4 decimal places, “0.0000” •...
  • Page 85 RM2612 Resistance Calculation Software Measurement start/stop Methods for starting measurement: • Click [Start] in the application. • Press the [F5] key. Methods for stopping measurement: [Abort] • Click in the application. Re-analysis function Re-analysis after changing analysis conditions and measurement target information Previously measured potential data is used to repeat the analysis process.
  • Page 86 1.50 Minimum 1.00 element size 0.50 0.00 0.01 Element size (where NORMAL = 1) Minimum element size is set internally by Hioki. ) v ( − δ V × 0 0 % The potential difference is defined as follows: ) v ( −...
  • Page 87 MEDIUM WIDE Maximum area: 0.20 Model area = 64 0.00 Model area (where NORMAL = 1) Maximum area size is set internally by Hioki. ) v ( − δ V × 0 0 % The potential difference is defined as follows: ) v ( −...
  • Page 88 RM2612 Resistance Calculation Software Comparison of potential values for the finite volume model and an analytical solution The following table compares calculated potential values from an analytical solution and calculated potential values from the finite volume model for a single-layer substance: Parameters of the electrode sheet used as a model Ω...

  • Page 89: Output File Formats

    Output File Formats 7.3 Output File Formats Analysis results file format Header Description Counter Counter [measurements] Date Measurement start date Time Measurement start time Comment Comment (up to 30 characters) Ω Composite volume resistivity [ohm cm] Composite layer volume resistivity [ Ω...
  • Page 90 Output File Formats 2D Potential distribution file format Header Description Counter Counter [measurements] Date Measurement start date Time Measurement start time Comment Comment (up to 30 characters) Range [ohm] Resistance range Speed Potential measurement speed TF-Type Fixed value of 1 Composite layer thickness [um] Composite layer thickness [μm] Collector layer thickness [um]...

  • Page 91: Contact Check Bit Pattern

    Output File Formats Contact check bit pattern Analysis results files and 2D potential distribution files output contact check results for potential followed by current along with measurement results. Probes that exhibited a contact error are indicated by a bit with the value 1, while normally functioning probes are indicated by a bit with the value 0.

  • Page 92: Contact Check Results File Output Format

    Contact Check Results File Output Format 7.4 Contact Check Results File Output Format Ω The time, date, and contact resistance [ ] resulting from a simple measurement of each probe are output to the file. If the analysis results file has the same name, this data is appended to that file. IMPORTANT Output resistance values are the result of a simple measurement process and as such differ from the true probe contact resistance.

  • Page 93: Inspection Results File Format

    Inspection Results File Format 7.5 Inspection Results File Format When a SHORT inspection (p.  3 3) and OPEN inspection (p.  3 4) are performed for the RM9004 Test Fixture, the results are output to a file in the same folder as the analysis results file. RM9004 SHORT inspection results file format (Filename: CHECK_RM9004_SHORT.csv) Contact resistance inspection...
  • Page 94 Inspection Results File Format RM9004 Test Fixture OPEN inspection results file format (Filename: CHECK_RM9004_OPEN.csv) Header Description Date Inspection start date Time Inspection start time Ω Threshold RM9004 OPEN judgment threshold [ Result RM9004 OPEN inspection result Ω Probe insulation resistance values [ *A measured value of 1.00E+30 indicates sufficiently high insulation resistance.

  • Page 95: Faq

    About the reduction factor (p.  9 4) The reduction factor is a parameter for adjusting the magnitude of the correction applied during iterative calculation of interface resistance. Use of a small value results in a more stable convergence process but incurs longer calculation times. How is interface resistance calculated? (p. ...
  • Page 96 What precautions apply when performing maintenance of probe tips? For more information about probe maintenance, refer to “RM9004 Test Fixture” (p.  1 18). Performing measurements while the tips of the probes are dirty will lead to probe wear and greater measurement error. Consequently, the probe tips should be cleaned regularly with air. Is it possible to verify that the system is making the same measurements every day? Yes.
  • Page 97 Why am I encountering frequent contact errors and measurement reliability errors? The instrument may not be properly acquiring the potential distribution. Possible causes include cases in which measurement current pathways are not well-formed in the test area, for example due to there being only a small amount of conductive auxiliary agent, or a mixture of locations where there is conductive auxiliary agent and other locations where there is none.

  • Page 98: About The Reduction Factor

    About the reduction factor 8.1 About the reduction factor In iterative calculations performed as part of an inverse problem analysis, calculations exhibit unstable convergence if the initial value differs greatly from the solution (making it more likely to encounter an error in which the interface resistance or composite layer volume resistivity is reported as a negative value).

  • Page 99: How Is Interface Resistance Calculated

    How is interface resistance calculated? 8.2 How is interface resistance calculated? By combining multipoint potential measurement (resistance measurement) and inverse analysis calculations, it is possible to isolate and calculate the composite layer volume resistivity and interface resistance for lithium-ion battery electrode sheets. In this way, it is possible to calculate interface resistance by means of a simple series of operations: configuring several settings, placing probes in contact with the surface of the electrode sheet, and stating measurement.
  • Page 100 How is interface resistance calculated? Modeling Composite layer Interface Collector Potential Composite layer measurement Interface Surface potential Update Collector distribution resistance (representative) Electrode sheet value Calculation of potential using a Don’t simulation agree Surface potential distribution Virtual electrode (representative) as sheet calculated by simulation Comparison...

  • Page 101: What Is The Finite Volume Model

    What is the finite volume model? 8.3 What is the finite volume model? The finite volume model signifies a calculation domain that has been segregated into a finite number of elements (known as a mesh) in order to perform numerical calculations using the finite volume method (FVM).

  • Page 102: Can Electrode Sheets Coated On Both Sides Be Measured

    Can electrode sheets coated on both sides be measured? 8.4 Can electrode sheets coated on both sides be measured? It makes no difference whether the electrode sheet being measured is coated on one side or both sides. However, exercise caution with regard to the following: •...

  • Page 103: What Is Volume Resistivity

    What is volume resistivity? 8.5 What is volume resistivity? Volume resistivity is a physical property that indicates the comparative difficulty with which electricity passes through a material. It is also known as resistivity, specific resistance, and Ω electrical resistivity. Volume resistivity is measured in [ Each material has a characteristic volume resistivity that does not depend on its shape or size.

  • Page 104: What Is Surface Resistivity? How Do Composite Layer Volume Resistivity And Composite Layer Surface Resistivity Differ

    What is surface resistivity? How do composite layer volume resistivity and composite layer surface resistivity differ? 8.6 What is surface resistivity? How do composite layer volume resistivity and composite layer surface resistivity differ? Surface resistivity indicates the difficulty with which electricity flows perpendicularly to a surface that has no thickness or that is thin enough that its thickness can be ignored.

  • Page 105: How Should I Configure The

    How Should I Configure the Settings for a Collector with an Undercoat? Additionally, Is It Possible to Evaluate an Undercoat + Collector Sheet That Lacks a Composite Layer? 8.7 How should I configure the settings for a collector with an undercoat? Additionally, is it possible to evaluate an undercoat + collector sheet that lacks a composite layer? When the collector has an undercoat, it is recommended to measure the sheet by ignoring the...

  • Page 106: What Are Analysis Results

    What are analysis results? 8.8 What are analysis results? Analysis reliability provides an indicator of whether the inverse problem was performed correctly. Although the value is not intended to serve as an indicator of the absolute value or accuracy of the interface resistance or composite layer volume resistivity, it does offer a way to check the status of analysis.

  • Page 107: What Is Measurement Reliability

    What is measurement reliability? 8.9 What is measurement reliability? Measurement reliability provides an indicator of whether potential measurement has been performed correctly. It allows you to check the status of potential measurement. Measurement reliability is indicated by three values. Consistency [PASS/FAIL] Consistency provides a judgment of whether the magnitude of the gradient in the potential distribution accords with the theoretical result that would be expected.

  • Page 108: How Much Does Entering An Incorrect Value For The Composite Layer Thickness Affect Analysis Results

    Hioki evaluated the effect of entering an incorrect thickness when measuring a standard positive electrode sheet (with a composite thickness of 77 μm). This evaluation showed that the incorrectly entered thickness produced an error in analysis results on par with the ratio indicating the extent to which it differed from the correct thickness value.

  • Page 109: Under What Circumstances Do Contact Errors Occur

    Under what circumstances do contact errors occur? 8.11 Under what circumstances do contact errors occur? Contact errors are reported more often when the effect on measurement of the contact resistance between the probes and the measurement target becomes more pronounced. In terms of specific operation, 2-terminal resistance measurement is used to measure the resistance between the probes and the measurement target, and a contact error is concluded to have occurred if a certain threshold is exceeded.
  • Page 110 Under what circumstances do contact errors occur?

  • Page 111: Maintenance And Service

    Maintenance and Service Precautions when transporting the product Be sure to follow these precautions when transporting the product: • Remove accessories and options from the product in order to avoid damaging it. Additionally, use the packaging in which the product was packed when you purchased it, and be sure to double- box it.
  • Page 112 The performance of some parts used in the product may degrade during the course of extended use. To ensure your ability to use the product into the indefinite future, Hioki recommends regular replacement of these parts. Please contact your authorized Hioki distributor or reseller when you need to do so.

  • Page 113: Troubleshooting

    If you believe the product may be broken, please review the suggestions described under “Before having your product repaired.” If those steps fail to resolve the issue, please contact your authorized Hioki distributor or reseller. If you are unsure of the cause of the issue, initialize the RM2612 Resistance Calculation Software to revert all settings to their factory default (p. ...

  • Page 114: Updating The Software

    Updating the Software 9.2 Updating the Software If you have an Internet connection and can download files, you can update the RM2612 Resistance Calculation Software’s PC application. Choose [Settings]. Choose [System]. Click [Update to Latest Version]. If there is a new version available, the [ELECTRODE RESISTANCE MEASUREMENT SYSTEM] dialog box will be displayed.

  • Page 115: Initializing The Software

    Initializing the Software 9.3 Initializing the Software This section describes how to reset the RM2612 Resistance Calculation Software to its factory defaults. IMPORTANT Clicking [Initialize configuration] will reset all settings other than those listed below to the factory defaults. Follow the instructions in “6.1 Saving Measurement Conditions” (p.  7 3) as necessary before initializing the software.

  • Page 116: Factory Default Settings

    Initializing the Software Factory default settings Setting Initial value Measurement conditions Auto range Ω Resistance range 1000 k (10 μA) Electrode sheet information Composite layer thickness [μm] Collector thickness [μm] Ω Collector volume resistivity [ 2.7000E-06 Comment (Blank) File output Analysis results Potential for analysis Analysis results path...
  • Page 117 Initializing the Software Analysis Initial value Automatic calculation Ω Composite layer volume resistivity [ 1.000E+00 Ω Interface resistance [ cm^2] 1.000E+00 Conditions Single Multiple settings Model area: NORMAL Element size: NORMAL Limit iteration number: 30 Reduction factor: 1.0000 Model area NORMAL Element size NORMAL...

  • Page 118: List Of Error Messages

    9.4 List of Error Messages The table below lists messages displayed on the screen in the event of the product or measurement state error. If repair is necessary, please contact your authorized Hioki distributor or reseller. RM2611 Electrode Resistance Meter...

  • Page 119: Rm2612 Resistance Calculation Software

    List of Error Messages RM2612 Resistance Calculation Software Dialog box message Solution Check the connection with the The RM2611 Electrode Resistance Meter and PC are not connected. RM2611. • Check the communications settings under [Settings]-[System] (p.  3 1). Verify that the RM2611 Electrode Resistance Meter and PC are connected with a USB cable.
  • Page 120 List of Error Messages Dialog box message Solution RM2612 application requires Please download and install Microsoft .NET Framework 4.8 (p.  2 0). Microsoft .NET Framework 4.8. Please use Windows Update to install this version and then re- launch the RM2612 application setup program.

  • Page 121: Cleaning The System

    Cleaning the System 9.5 Cleaning the System RM2611 Electrode Resistance Meter If the RM2611 Electrode Resistance Meter becomes dirty, slightly moisten a soft cloth with water or a neutral detergent and wipe it clean. RM9003 Press Unit If the RM9003 Press Unit becomes dirty, wipe it gently with a soft cloth. Do not wipe moving parts such as the shaft or up/down lever as they are coated with oil.

  • Page 122: Rm9004 Test Fixture

    • The probes are extremely thin. Do not clean them with anything other than air. • The RM9004 Test Fixture’s probes are consumable parts. They require periodic replacement but are not customer-replaceable. Please contact your authorized Hioki distributor or reseller for more information. You will need:...

  • Page 123: Calibration

    The calibration period varies with the conditions and environment of use. It is recommended to determine a calibration period based on those factors and to have the instrument regularly calibrated by Hioki. 9.7 Disposing of the RM2611 Electrode Resistance Meter The RM2611 Electrode Resistance Meter uses a lithium battery to back up its clock.
  • Page 124 Disposing of the RM2611 Electrode Resistance Meter Necessary tools: Philips screwdriver (No. 1 size) and pair of tweezers (for removing the lithium battery) Verify that the RM2611 Electrode Resistance Meter’s main power switch (on the rear of the instrument) is in the OFF (○) position and disconnect all cords.
