2.3. Set the ramp on the hangers. The hangers should be positioned as close as possible to the ramp side rails.
The procedure is the same at both the top and bottom of ramp runs which end at a platform unless a
transition plate is used (FIG. 2.2).
Do not attempt to walk on ramps until installation is complete.
2.4. Proceed with the system installation as described in the main PATHWAY® Modular Access System Manual
and secure all ramps to platforms as described in the 'Ramp End Clip Installation Instructions Addendum'
as part of the final steps.

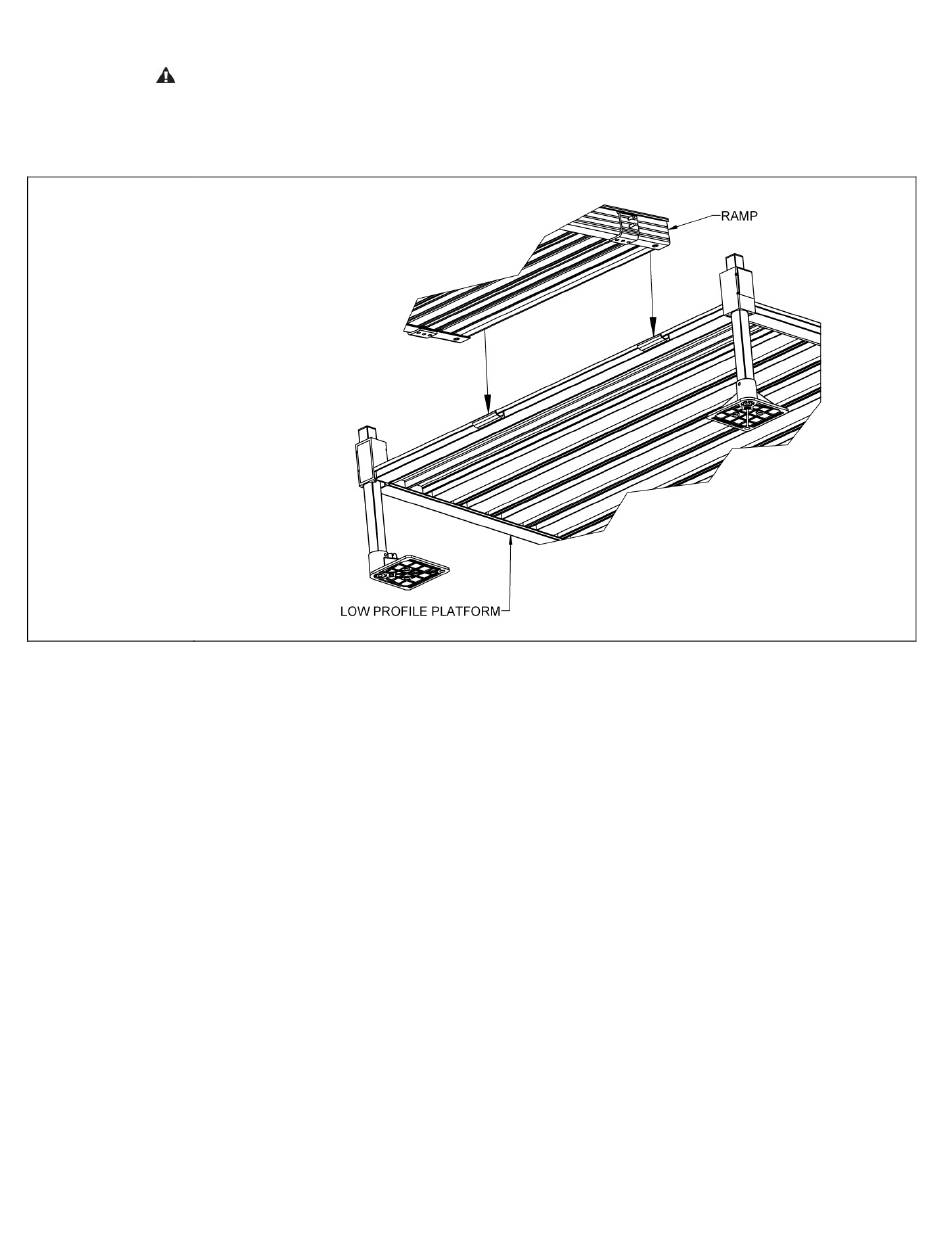

FIG. 2.2
- 6 -
