LOW PROFILE PLATFORMS
1.
1.1.
INSTALL PLATFORMS: It is strongly suggested that all platforms and ramps be installed before installing
handrails (see 'HANDRAILS' in the main PATHWAY® Modular Access System Manual).
1.1.1.
FIG. 1.1
There are three types of platforms (one or more of these platform arrangements may be
used in an installation). All three require the same procedure for assembly except for
FIG.1.3 which requires an additional MPPC (PLATFORM TO PLATFORM CONNECTOR).

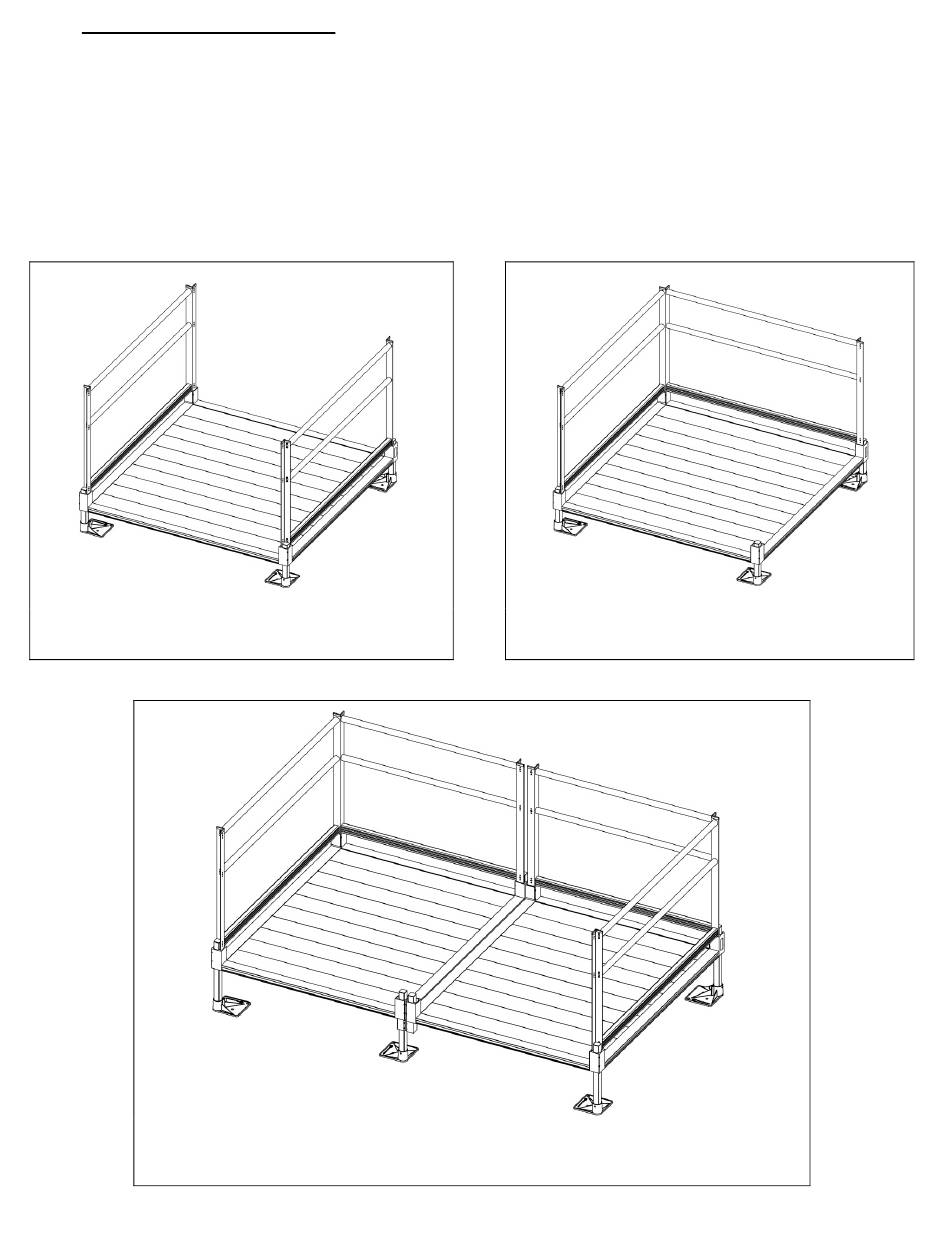

FIG. 1.1
Low profile platform straight configuration.
FIG. 1.2
Low profile platform turn configuration.
FIG. 1.3
Low profile platform turn back configuration (two 5' x 4' platforms
shown combined to make 5' x 8' turn back platform).
FIG. 1.3
- 4 -
FIG. 1.2
