ALI-NS1102VR 2.0 Megapixel
IP Dome Camera
Quick Installation Guide
This document guides you through the basic steps to install and configure the ALI-NS1102VR camera. This
camera features:
2 Megapixel 1/2.8" CMOS progressive scan sensor, 1920 × 1080 pixels @ 30 fps
•
Dual-stream video support
•
Video stream compression: H.265+, H.265, H.264+, H.264 standard and MJPEG
•
Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON) minimum illumination
•
3D-DNR noise reduction and Digital Wide Dynamic Range (WDR) and BLC
100 ft Smart IR range
•
Dual power capable - Power over Ethernet (PoE) or 12 Vdc
•
IP67 weatherproof rated, IK10 impact resistance rated, TVS 2000V lightning protection
•
Compatible with ALI-AF4 junction box.
•
For more information about the features of these cameras, please refer to the ALIBI IP Camera
Software V2 User Manual. This document and other supporting publications can be downloaded from
AlibiSecurity.com/resources.

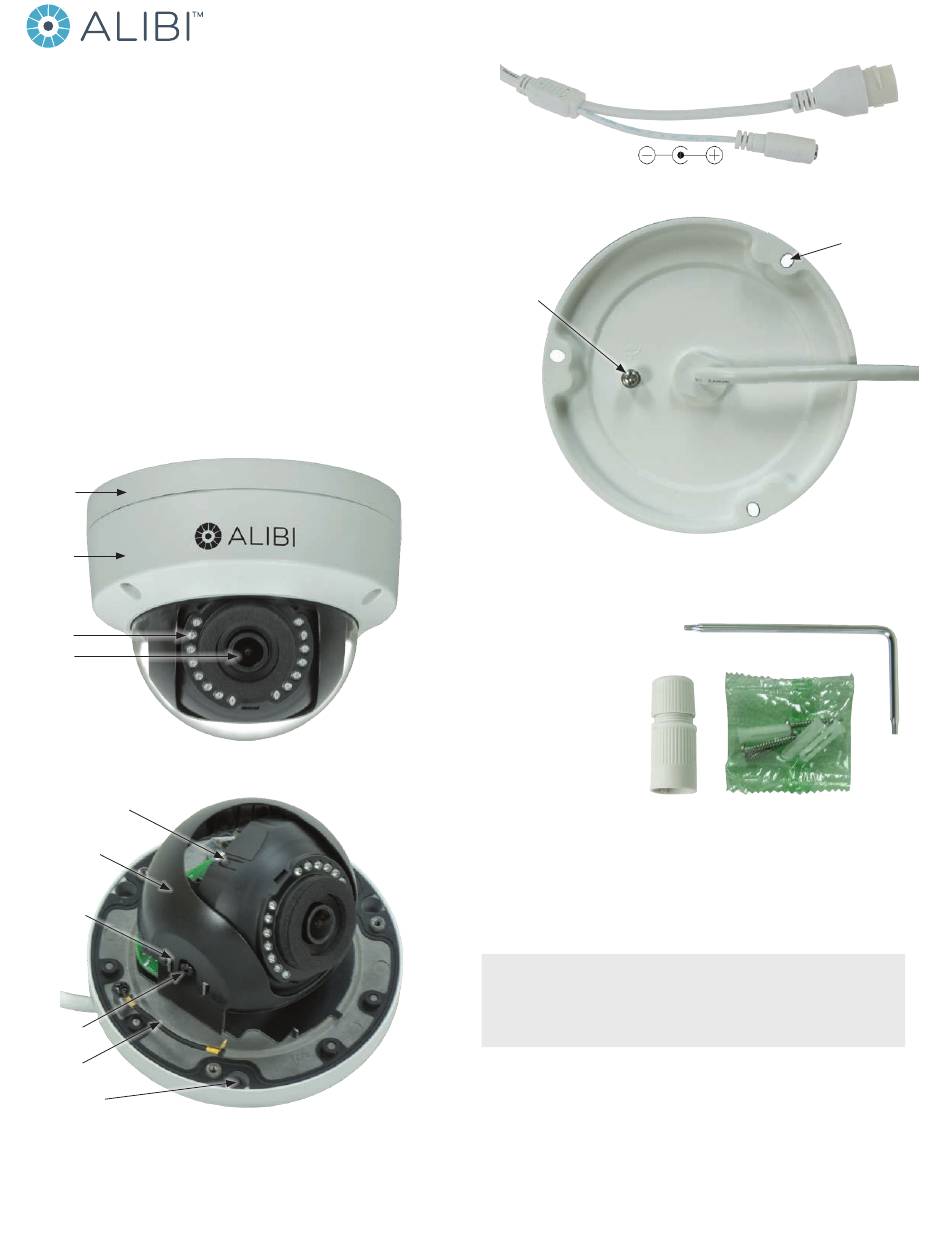

Mounting
base
Dome
Assembly
IR array
Lens
Reset button*
Black plastic
liner
Gimbal
assembly
Drop
cable
Tilt lock
screw
Dome
cable
Mounting
screw hole (3)
ALI-NS1102VR camera without the dome cover
* To RESET the camera to its default settings, press and hold the RESET button for 10 seconds while powering on the camera.
This resets the user name, password, IP address, port No., etc. to the factory settings.
www.observint.com
1
Camera drop cable connectors
Camera
ground
terminal
Camera base (mounting surface side)
What's in the box
Box contains:
This document
Weatherproof fitting
•
for Ethernet cable
Drill template
•
Weatherproof Ethernet
•
fitting
Security L-wrench
•
Mounting screws and
•
wall inserts
Step 1.
Route interface cables to the camera
Ethernet and power interface cables connect directly to the camera drop cable (see photo above). A ground
terminal is provided on the mounting surface side of the camera base (see photo above).
The ALI-AF4 junction box is compatible with the camera. If using this junction box, all connecting cables
should be routed into this junction box and attached to the camera within it.
When selecting a mounting location for the camera
• Make sure that there are no reflective surfaces near to the camera lens. IR light from the camera may
bounce back onto the lens causing reflections.
NOTE
• Determine how wiring is routed into the camera. The cable can be routed through conduit (a
threaded conduit adapter is provided), through the mounting surface and access hole in the
mounting plate, or through the side inlet.
The camera includes connectors for the following:
Ethernet (required): The Ethernet drop cable can connect to a LAN extension cable from a switch
•
or Network Video Recorder. The camera can be powered across the LAN using power over Ethernet
(PoE) injection. See the Specifications section at the end of this document for power requirements.
12 Vdc power input (optional if PoE powered, required if not): 12 Vdc drop cable includes
•
screw-down connectors, with the polarity embossed on the cable. ALWAYS COMPLY WITH THE
POLARITY INDICATED. Voltage input at the camera must be within the range 12 Vdc ± 25%.
Ethernet connector -
PoE capable
12 Vdc Power
connector
Mounting
screw holes (3)
Drop cable
L-wrench
Mounting
screws and
wall inserts
ALI-NS1102VR_CQ
190604
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ALIBI ALI-NS1102VR
Summary of Contents for ALIBI ALI-NS1102VR
- Page 1 Quick Installation Guide 12 Vdc Power connector This document guides you through the basic steps to install and configure the ALI-NS1102VR camera. This Camera drop cable connectors camera features: 2 Megapixel 1/2.8" CMOS progressive scan sensor, 1920 × 1080 pixels @ 30 fps Mounting •...
- Page 2 Connect the camera to the LAN, ground and power Attach a ground cable to the camera in accordance with local electrical codes. In the screen above, the tool can discover devices on other sub-nets. It will also list other Alibi compatible NOTE devices on the LAN, and devices with the address 192.168.1.64 (an inactive Alibi device).
-
Page 3: Step 7. Login To The Camera
Refer to the documentation available for your NVR firmware for the procedure to activate the camera, if necessary. When an Alibi device is first installed, or reset to its factory configuration, it must be “Activated” before it can be used. In the Alibi Configuration Tool, “Inactive” devices have a Security status of Inactive, and In the popup window, edit the current network parameters, and then enter the Administrator an IPv4 address of 192.168.1.64. -
Page 4: Logout Button
Find MS IE in the start menu. Usually this is found in the Windows Accessories group. Pin the entry to Start. Right click on the Internet Explorer tile, and then select More | Run as administrator. Run as administrator In the message bar at the bottom of the screen, click Run. Follow the on-screen instructions to install WebComponents. -
Page 5: Specifications
ONVIF (PROFILE S, PROFILE G), ISAPI Simultaneous Live View Up to 6 channels User/Host Up to 32 users 3 levels: Administrator, Operator and User Client Alibi Central Management Software (ACMS) v3.1 or later, ACMS-XP Web Browser Microsoft Internet Explorer 7 and later ©... -
Page 6: Wire Gauge Standards
TVS 2000V Lightning and Surge Protection Feature Guidelines 12 Vdc Wire Gauge and Transmission Distance The following table shows the recommended maximum distance adopted for the different wire sizes when This product includes TVS plate lightning protection technology to prevent damage caused by a pulse the 12 Vdc voltage loss is less than 15%.
