Summary of Contents for ALIBI ALI-NS7004R

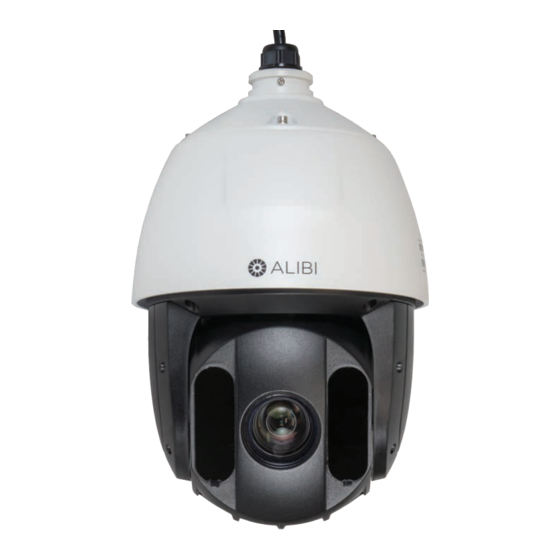

- Page 1 ALI-NS7004R 4 MP 25x 492 ft IR Network PTZ Camera Installation Guide PLEASE READ THIS MANUAL BEFORE USING YOUR CAMERAS, and always follow the instructions for safety and proper use. Save this manual for future reference. ALI-NS7004R_CM 190917...
- Page 2 ALIBI and the ALIBI logo are trademarks of Observint. Microsoft, Windows, and Internet Explorer are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
- Page 3 Please make sure that the power has been disconnected before you wire, install or dismantle the camera. • If smoke, odors or noise rise from the device, turn off the power at once and unplug the power cable, and then please contact • the service center. ALI-NS7004R IP PTZ Camera Installation Guide...
- Page 4 If the product does not work properly, please contact your dealer or the nearest service center. Never attempt to disassemble • the speed dome yourself. (We shall not assume any responsibility for problems caused by unauthorized repair or maintenance.) Cautions Do not drop the dome or subject it to physical shock, and do not expose it to high electromagnetism radiation.
-
Page 5: Table Of Contents
3.1 Install the Alibi Config Tool software ........ - Page 6 NOTES...
-
Page 7: Overview
SECTION 1: OVERVIEW SECTION 1 Overview Congratulations on purchasing your new ALIBI™ Network PTZ Dome Camera! This installation guide includes procedures for installing and performing the initial setup of the camera. The ALI-NS7004R camera includes to capture high quality images in low light environment. The black STARLIGHT TECHNOLOGY anti-reflective glass increase the luminousness for an IR reach of up to nearly 500 feet. - Page 8 SECTION 1: OVERVIEW Scan Modes The camera provides 5 scan modes: auto scan, tilt scan, frame scan, random scan and panorama scan. Presets A preset is a predefined image position. When the preset is called, the camera will automatically move to the defined position. The presets can be added, modified, deleted and called.
- Page 9 A pattern is a memorized series of pan, tilt, zoom, and preset functions. By default the focus and iris are in auto status during the pattern is being memorized. Power Off Memory The camera supports the power off memory capability with the predefined resume time. It allows the camera to resume its previous position after power is restored. ALI-NS7004R IP PTZ Camera Installation Guide...
-
Page 10: Optional Accessories
The camera allows you to edit users with different levels of permission, in the admin login status. Multiple users are allowed to access and control the same network camera via network simultaneously. 1.2 Optional Accessories The following accessories are available for the ALIBI ALI-NS7004R camera. Mounting bracket detail is shown below. Model Type... - Page 11 SECTION 1: OVERVIEW ALI-PTZCL: Ceiling Mount Bracket The Ceiling Mount Bracket is suitable for outdoor ceiling mounting. 2.24" 0.39" dia. (4) 4.57" dia. 3.52" dia. ALI-NS7004R IP PTZ Camera Installation Guide...
- Page 12 SECTION 1: OVERVIEW ALI-PTZCM: Corner Mount PTZ Bracket The Corner Mount Bracket is suitable for outdoor pole mounting to a 90˚ corner. 16.52" 6.96" G 1.5"...
- Page 13 SECTION 1: OVERVIEW ALI-PTZPM: Pole Mount PTZ Bracket The Pole Mount Bracket is suitable for outdoor pole mounting. The straps can attach to a 2.64” ~ 5.00” diameter pole. 3.94" dia. 5.63" 12.2" 4.61" G 1.5" ALI-NS7004R IP PTZ Camera Installation Guide...
- Page 14 SECTION 1: OVERVIEW ALI-PTZPPT: Outdoor Parapet Roof Mount Bracket This Alibi parapet wall mount bracket is suited for use with all Alibi PTZ cameras and provides easy mounting of the cameras onto a roof. 31.4" ALI-PTZPPT Parapet bracket assembled 7.09"...
- Page 15 SECTION 1: OVERVIEW ALI-PTZWB: Wall Mount Bracket The Wall Mount Bracket is suitable for indoor and outdoor wall mounting. 3.82" 12.2" 2.95" G 1.5" 0.33" dia. (4) ALI-NS7004R IP PTZ Camera Installation Guide...
- Page 16 SECTION 1: OVERVIEW ALI-PTZWBJ: Wall Mount Bracket with Junction Box The Wall Mount Bracket is suitable for indoor and outdoor wall mounting. It includes a junction box for connections to extension cables. 3.0" 14" 0.35" 2.6" 5.6" 6.7"...
-
Page 17: Installation
Lightning and Surge Protection” on page 30 for additional installation considerations. 2.1 Remove the camera from the packaging 1. Remove the camera from the protective packaging. 2. Remove tape from the dome drive, if attached. Tape ALI-NS7004R IP PTZ Camera Installation Guide... -
Page 18: Install A Microsd Card In The Camera (Optional)
SECTION 2: INSTALLATION 2.2 Install a microSD card in the camera (optional) The microSD card in the provides in-camera (local) storage for log information and locally stored video and capture files. Cameras without an SD card cannot provide camera log information, which is valuable for maintenance purposes. Your camera will accommodate a microSD card with up to 256 GB of storage. - Page 19 6. Route the drop cable through the mounting surface, or through the cable channel at the bottom of the bracket, as preferred, and then secure the mounting bracket, with the camera to the wall. Retention screw (2) Drop cable Coupling with slot Safety cable ALI-NS7004R IP PTZ Camera Installation Guide...
-
Page 20: Connecting The Cables
WARNING the warranty. Drop cables connectors for the ALI-NS7004R are shown below. Each wire is color-coded and labeled with its purpose. Connect the camera to other devices as needed in the order shown below. Alarm Input/Output cables The alarm input/output drop cable bundle provides five wires, ALARM_IN1, ALARM_IN2, ALARM_OUT1, ALARM_COM1 and ALARM_GND. - Page 21 Failure of the Ethernet connector due to moisture or another contaminant is considered an installation error, which voids the warranty. If installing this camera in a location such as an overhang, shop, garage, kitchen, WARNING etc. where high humidity or dust is present, seal these connections adequately. ALI-NS7004R IP PTZ Camera Installation Guide...
- Page 22 SECTION 2: INSTALLATION Power cables, PoE Injector You can power the camera through the Ethernet cable using the Hi-PoE Injector provided, or directly by applying 24 Vac power to the drop cable power screw-down connectors (refer to “APPENDIX D 24 Vac Wire Gauge and Transmission Distance” on page 31 for more information). To use the injector: 1.
-
Page 23: Configure Network Access
1. Download the Alibi Config Tool from the Supercircuits.com or AlibiSecurity.com/Resources website. At the time when this document was published, the file is named: alibi-config-tool.zip and is about 80MB. 2. Un-zip the file on a computer with Microsoft Windows (Windows 7 or newer) that is connected to the LAN where your Alibi camera is connected. -
Page 24: Activate Inactive Alibi Device
NVR firmware for the procedure to activate the camera, if necessary. When an Alibi device is first installed, or reset to its factory configuration, it must be “Activated” before it can be used. In the Alibi Configuration Tool, “Inactive” devices have a Security status of Inactive, and an IPv4 address of 192.168.1.64. A device is “Activated”... -
Page 25: Modify Network Parameters
IP address, you can use DHCP to acquire compatible network settings, and then uncheck Enable DHCP and save that configuration to retain the new network parameters. b. In the example below, Enable DHCP was checked to acquire compatible network settings from the DHCP server. ALI-NS7004R IP PTZ Camera Installation Guide... - Page 26 SECTION 3: CONFIGURE NETWORK ACCESS 3. Click OK to save your settings. The parameter change(s) will be shown device’s network parameters (see below).
-
Page 27: Remote Login
1. Find MS IE in the start menu. Usually this is found in the Windows Accessories group. 2. Pin the entry to Start. 3. Right click on the Internet Explorer tile, and then select More | Run as administrator. ALI-NS7004R IP PTZ Camera Installation Guide... - Page 28 SECTION 4: REMOTE LOGIN Run as administrator To login to the camera from a computer on the same LAN: 1. Open your Microsoft Internet Explorer (IE) browser on your computer and enter the IP address of the camera in the URL field. In the example below, the IP address of the camera is 192.168.3.100.
- Page 29 Click on the message to install the plugin. b. In the message bar at the bottom of the screen, click Run. Follow the on-screen instructions to install WebComponents. When the following screen opens, click Finish. ALI-NS7004R IP PTZ Camera Installation Guide...
-
Page 30: Additional Configuration Steps
The Live View screen with the camera video image should appear. Screen select tabs Live View image Logout button Capture, Record, Zoom icons 4.2 Additional configuration steps Refer to the document ALIBI™ IP Camera Software User Manual provided at at www.alibisecurity.com/resource to customize the configuration of your camera. -
Page 31: Appendix A Specifications
Pan Speed Preset speed: 120° / seconds Movement Range (Tilt) From -15° ~ 90° (auto-flip) Configurable, from 0.1° / seconds to 80°/ seconds Tilt Speed Preset Speed: 80° / seconds Proportional Zoom Supported Presets ALI-NS7004R IP PTZ Camera Installation Guide... - Page 32 APPENDIX A: SPECIFICATIONS Patrol Scan 8 patrols, up to 32 presets for each patrol Pattern Scan 4 pattern scans, record time over 10 minutes for each scan Power-off Memory Supported Park Action Preset / Pattern Scan / Patrol Scan / Auto Scan / Tilt Scan / Random Scan / Frame Scan / Panorama Scan 3D Positioning Supported PTZ Position Display...
- Page 33 User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network Security Measures access control; IP address filtering Client Alibi Central Management Software (ACMS) 3.2, ACMS-XP Web Browser Microsoft Internet Explorer (IE) 8 to 11 Interface...
-
Page 34: Appendix B Definitions
APPENDIX B: DEFINITIONS APPENDIX B Definitions Comparing with the general 2D digital noise reduction, the 3D digital noise reduction function processes the noise 3D Digital Noise Reduction between two frames besides processing the noise in one frame resulting in clearer video. In the client software, use the click left mouse button on the desired position in the video image, and then drag a rectangle area in the lower right direction. - Page 35 The WDR function helps the camera provide clear images even with back lit environments. When there are both very Wide Dynamic Range (WDR) bright and very dark areas in the field of view, WDR balances the brightness level of the whole image and provide clearer images and details. ALI-NS7004R IP PTZ Camera Installation Guide...
-
Page 36: Appendix C Lightning And Surge Protection
APPENDIX C: LIGHTNING AND SURGE PROTECTION APPENDIX C Lightning and Surge Protection This product includes TVS plate lightning protection technology to prevent damage caused by a pulse signal that is below 3000 watts from sources such as lighting, surging, etc. Protection measures must be taken to ensure electrical safety. The distance between signal transmission line and high-voltage equipment or high-voltage cable is at least 50 m. -
Page 37: Appendix D 24 Vac Wire Gauge And Transmission Distance
113 (34) 16 (4) 26 (7) 42 (12) 106 (32) 15 (4) 25 (7) 39 (11) 100 (30) 14 (4) 23 (7) 37 (11) 95 (28) 14 (4) 22 (6) 35 (10) 90 (27) ALI-NS7004R IP PTZ Camera Installation Guide... - Page 38 APPENDIX D: 24 VAC WIRE GAUGE AND TRANSMISSION DISTANCE Table 2. Wire Gauge Standards American Wire Gauge Cross-sectional Area of Bare Wire Gauge (mm) Bare Wire (mm 0.750 0.4417 0.800 0.5027 0.900 0.6362 1.000 0.7854 1.250 1.2266 1.500 1.7663 2.000 3.1420 2.500 4.9080...
-
Page 39: Appendix E Using The Waterproof Ethernet Fitting
9. Screw the lock nut onto the network cable end cap until it is fully seated. Rubber gasket Network drop cable Network cable from from camera Ethernet Fitting installed router or switch Lock nut Ethernet Fitting assembled and connected Network cable from router or switch ALI-NS7004R IP PTZ Camera Installation Guide...
