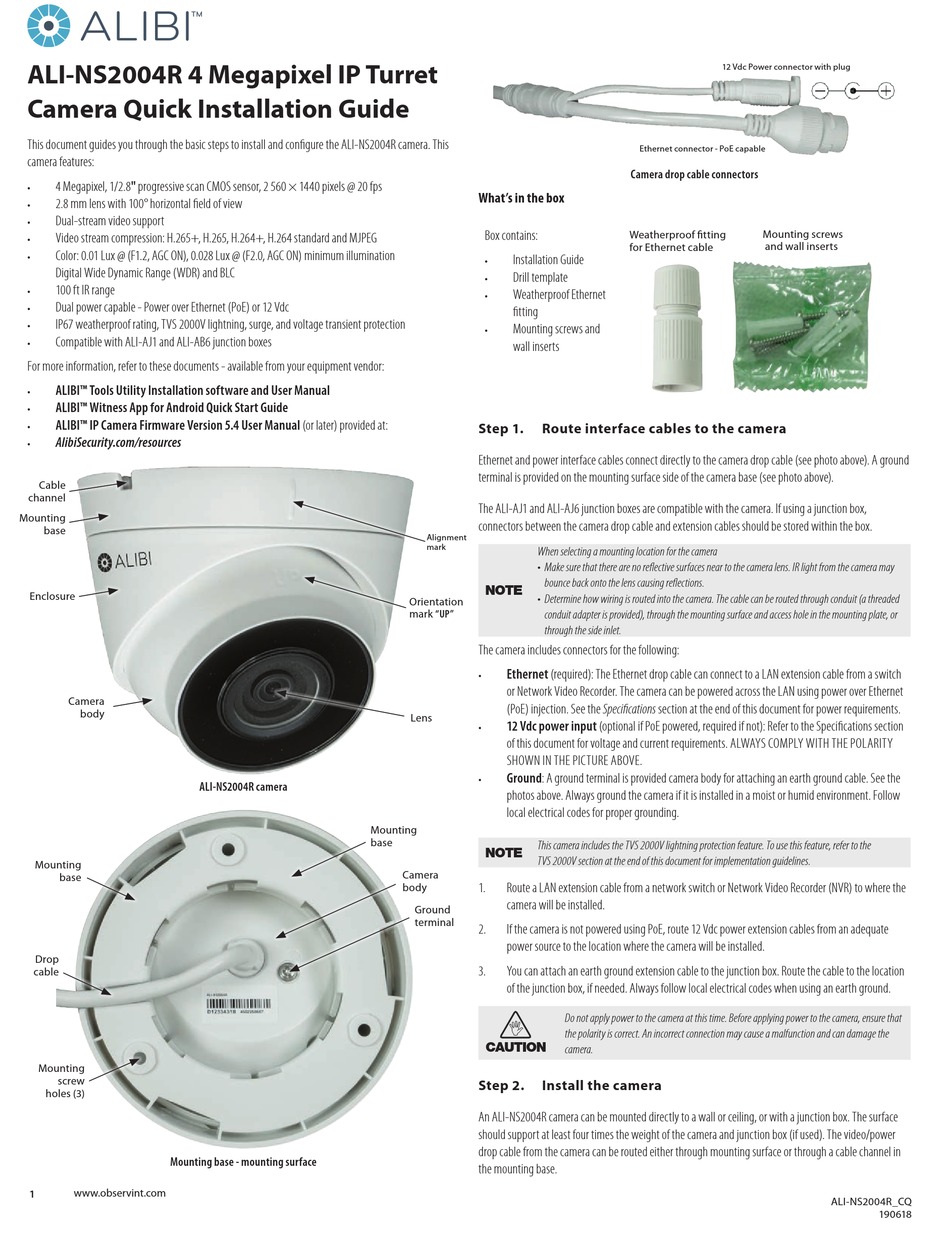

ALIBI ALI-NS2004R Quick Installation Manual

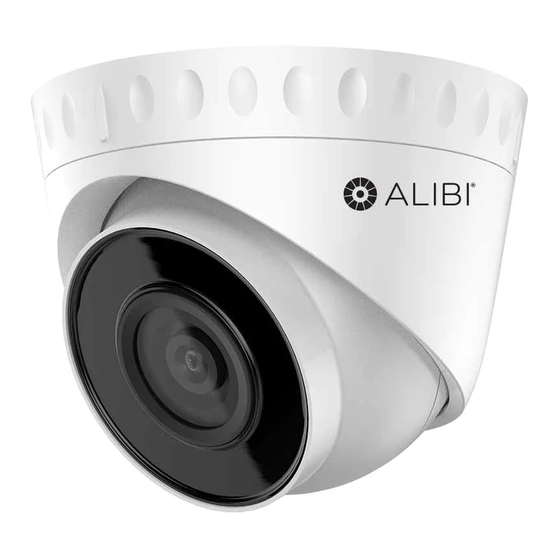

ALI-NS2004R 4 Megapixel IP Turret
Camera Quick Installation Guide
This document guides you through the basic steps to install and configure the ALI-NS2004R camera. This
camera features:
4 Megapixel, 1/2.8" progressive scan CMOS sensor, 2 560 × 1440 pixels @ 20 fps
•
2.8 mm lens with 100° horizontal field of view
•
Dual-stream video support
•
Video stream compression: H.265+, H.265, H.264+, H.264 standard and MJPEG
•
Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON) minimum illumination
•
Digital Wide Dynamic Range (WDR) and BLC
100 ft IR range
•
Dual power capable - Power over Ethernet (PoE) or 12 Vdc
•
IP67 weatherproof rating, TVS 2000V lightning, surge, and voltage transient protection
•
Compatible with ALI-AJ1 and ALI-AB6 junction boxes
•
For more information, refer to these documents - available from your equipment vendor:
ALIBI™ Tools Utility Installation software and User Manual
•
ALIBI™ Witness App for Android Quick Start Guide
•
ALIBI™ IP Camera Firmware Version 5.4 User Manual (or later) provided at:
•
AlibiSecurity.com/resources
•
Cable
channel
Mounting
base
Enclosure
Camera
body
Mounting
base
Drop
cable
Mounting
screw
holes (3)
Mounting base - mounting surface
www.observint.com
1
ALI-NS2004R camera
Mounting
base
What's in the box
Box contains:
Installation Guide
•
Drill template
•
Weatherproof Ethernet
•
fitting
Mounting screws and
•
wall inserts
Step 1. Route interface cables to the camera
Ethernet and power interface cables connect directly to the camera drop cable (see photo above). A ground
terminal is provided on the mounting surface side of the camera base (see photo above).
The ALI-AJ1 and ALI-AJ6 junction boxes are compatible with the camera. If using a junction box,
connectors between the camera drop cable and extension cables should be stored within the box.
Alignment
mark
When selecting a mounting location for the camera
• Make sure that there are no reflective surfaces near to the camera lens. IR light from the camera may
bounce back onto the lens causing reflections.
NOTE
• Determine how wiring is routed into the camera. The cable can be routed through conduit (a threaded
Orientation
mark "UP" conduit adapter is provided), through the mounting surface and access hole in the mounting plate, or
through the side inlet.
The camera includes connectors for the following:
Ethernet (required): The Ethernet drop cable can connect to a LAN extension cable from a switch
•
or Network Video Recorder. The camera can be powered across the LAN using power over Ethernet
(PoE) injection. See the Specifications section at the end of this document for power requirements.
Lens
12 Vdc power input (optional if PoE powered, required if not): Refer to the Specifications section
•
of this document for voltage and current requirements. ALWAYS COMPLY WITH THE POLARITY
SHOWN IN THE PICTURE ABOVE.
Ground: A ground terminal is provided camera body for attaching an earth ground cable. See the
•
photos above. Always ground the camera if it is installed in a moist or humid environment. Follow
local electrical codes for proper grounding.
This camera includes the TVS 2000V lightning protection feature. To use this feature, refer to the
NOTE
TVS 2000V section at the end of this document for implementation guidelines.
Camera
1. Route a LAN extension cable from a network switch or Network Video Recorder (NVR) to where the
body
camera will be installed.
Ground
terminal
2. If the camera is not powered using PoE, route 12 Vdc power extension cables from an adequate
power source to the location where the camera will be installed.
3. You can attach an earth ground extension cable to the junction box. Route the cable to the location
of the junction box, if needed. Always follow local electrical codes when using an earth ground.
Do not apply power to the camera at this time. Before applying power to the camera, ensure that

the polarity is correct. An incorrect connection may cause a malfunction and can damage the
CAUTION
camera.
Step 2. Install the camera
An ALI-NS2004R camera can be mounted directly to a wall or ceiling, or with a junction box. The surface
should support at least four times the weight of the camera and junction box (if used). The video/power
drop cable from the camera can be routed either through mounting surface or through a cable channel in
the mounting base.
12 Vdc Power connector with plug
Ethernet connector - PoE capable
Camera drop cable connectors
Mounting screws
Weatherproof fitting
for Ethernet cable and wall inserts
ALI-NS2004R_CQ
190618
