2.1.2 Interface Attributes

The interface attributes of SIC-1FEA are given in the following table:
Table 2-1 Interface attributes of SIC-1FEA
Connector type
Interface type
Number of connectors
Cable type
Operating mode
Note:
MDI stands for Media Dependent Interface of the Ethernet. Normally, the interfaces on
the network cards belong to this type. MDIX stands for Cross Media Dependent
Interface, which is usually adopted on HUBs or LAN Switches.

2.1.3 Interface LEDs

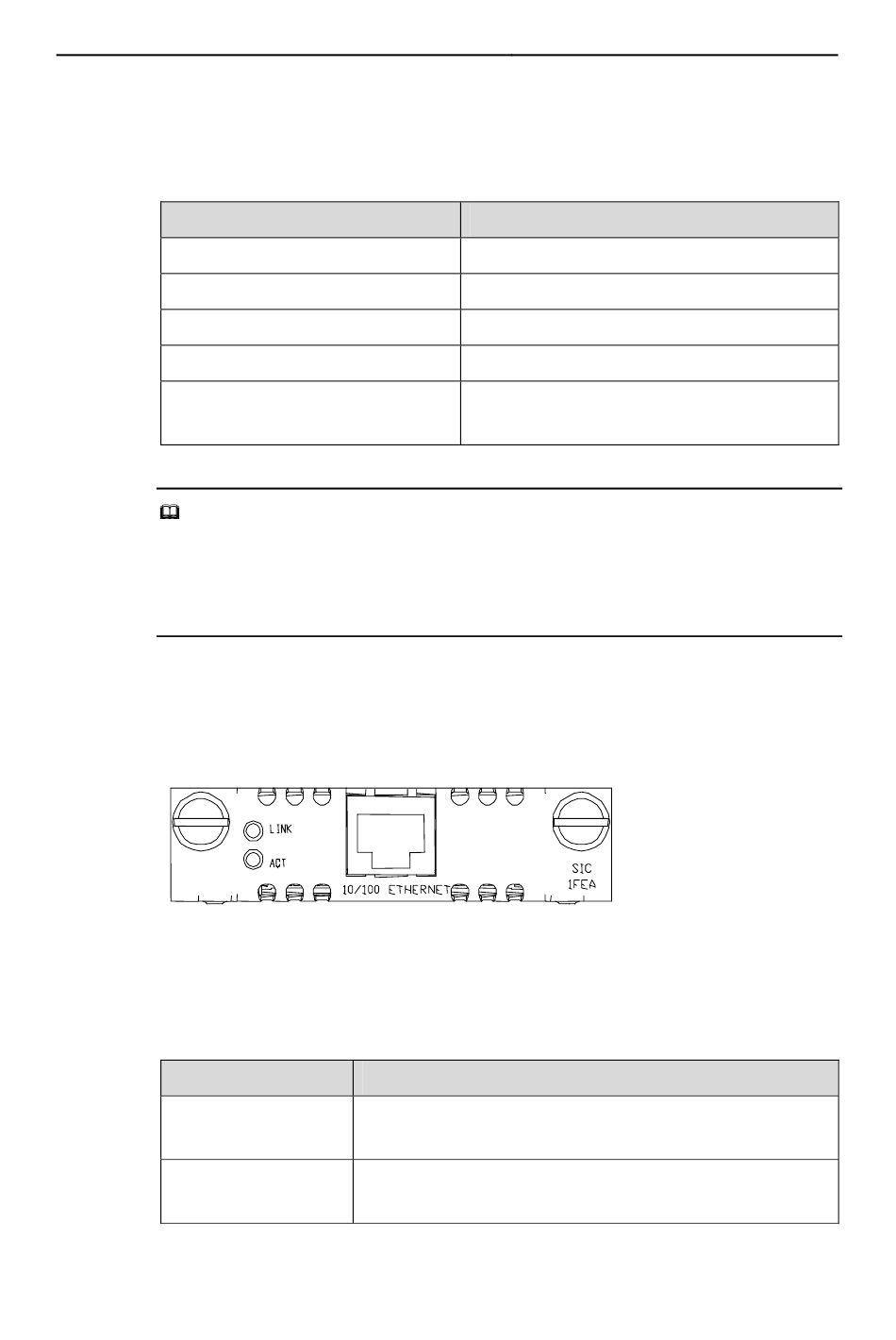

SIC-1FEA panel is shown in the following figure:
Figure 2-1 SIC-1FEA panel
The status description of the LEDs on SIC-1FEA panel is listed in the following table:
Table 2-2 Description of the LEDs on SIC-1FEA panel
LINK
ACT
Attribute
LED
OFF means no link is present;
ON means a link is present.
OFF means no data is being transmitted or received;
Blinking means data is being received or/and transmitted.
Chapter 2 Smart Interface Cards
RJ-45
MDI
1
Straight-through Ethernet cable
10/100 Mbps autosensing
Full duplex/half duplex
Description
2-2
SIC-1FEA
