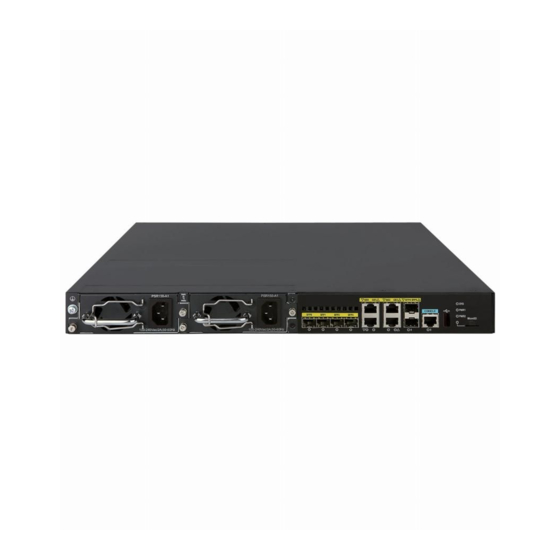

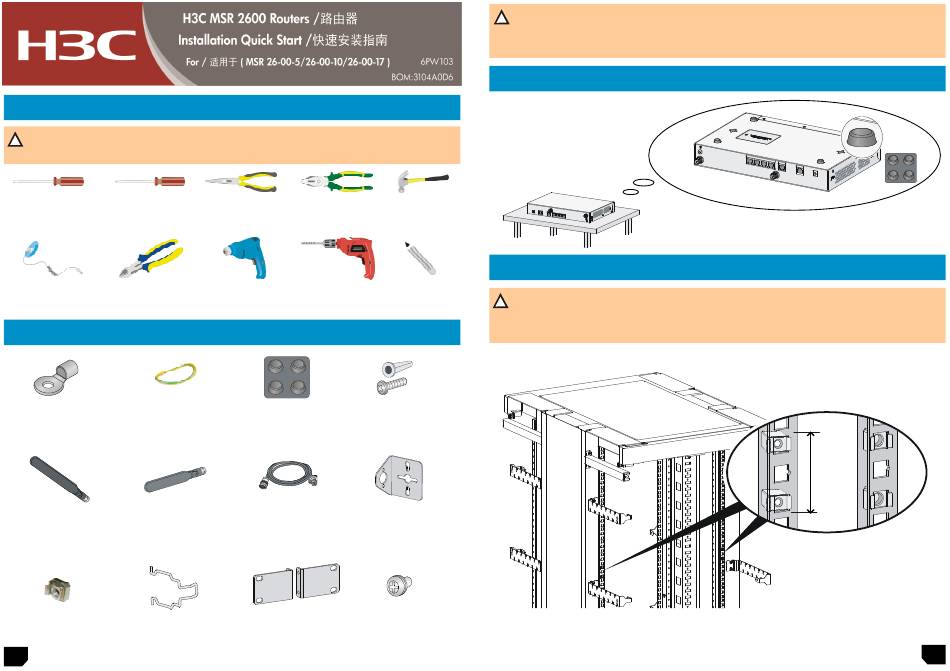

H3C MSR 2600 Installation, Quick Start

Tool List 工具参考
The installation tools are not provided with the router. Prepare them yourself.
路由器不随机提供安装工具，请用户根据实际安装需求自己准备安装工具。
Flathead screwdriver Phillips screwdriver
一字螺丝刀 十字螺丝刀
ESD-preventive wrist strap Diagonal pliers
防静电腕带 斜口钳
Introduction of Installation Accessories 安装附件介绍
Ring terminal Grounding cable
( 26-00-5 supplied ) ( 26-00-10/17 supplied )
接地端子 地线
( 26-00-5提供 ) ( 26-00-10/17提供 )
4G antenna 3G antenna
( 26-00-5-LM supplied ) ( 26-00-5-GU/GT supplied )
4G天线 3G天线
( 26-00-5-LM提供 ) ( 26-00-5-GU/GT提供 )
Cage nut (user supplied) 26-00-10/17 Bail latch (required)
浮动螺母(需自备) 26-00-10/17电源线卡勾(标配)
1
Needle-nose pliers Wire-stripping pliers
尖嘴钳 剥线钳
Blow dryer Drill
热吹风 电钻
Screw and anchor kit
Rubber pads
( User supplied )
胶垫贴
螺钉和安装导管(用户自备)
3G/4G extender cable
3G/4G antenna bracket
( User-supplied ) ( User-supplied )
3G/4G天线延长线
3G/4G天线支架
（用户自备）
（用户自备）
26-00-10/17Mounting
M4 screw
bracket ( required ) ( required )
M4 螺钉(标配)
26-00-10/17挂耳(标配)
Wear an ESD-preventive wrist strap, and make sure that the wrist strap has a good skin
contact and is well grounded. 操作者需佩戴防静电腕带，确保防静电腕带与皮肤良好
接触，并确认防静电腕带已经良好接地。
Mounting the Router to a Workbench 安装路由器到工作台
Stick the rubber pads to the
appropriate positions on the
router bottom
将脚垫粘贴到路由器底部
Claw hammer
羊角锤
Mounting the Router to a Rack 安装路由器到机柜
Marker
Supplied mounting brackets and the installation modes depend on your device model.
记号笔
对于不同款型的设备，标配挂耳及挂耳的安装方式不同，安装挂耳到路由器时请按照
实际情况进行选择。
Install cage nuts. 安装浮动螺母
This section is only applicable to the MSR 26-00-10 and MSR 26-00-17 router.
本节内容仅适用于MSR 26-00-10和MSR 26-00-17款型。
1U
2
