Interface Card and Interface Module Manual
H3C MSR 20/30/50 Series Routers
Step 5: Fasten the SIC into the Router with captive screws;
Step 6: Power on the Router, and check the LEDs of the corresponding slot on the front
panel: after the initialization of the SIC, ON means that the SIC is operating normally
and OFF means that its Power-On Self-Test (POST) has failed. In the latter case,
please contact your agent.

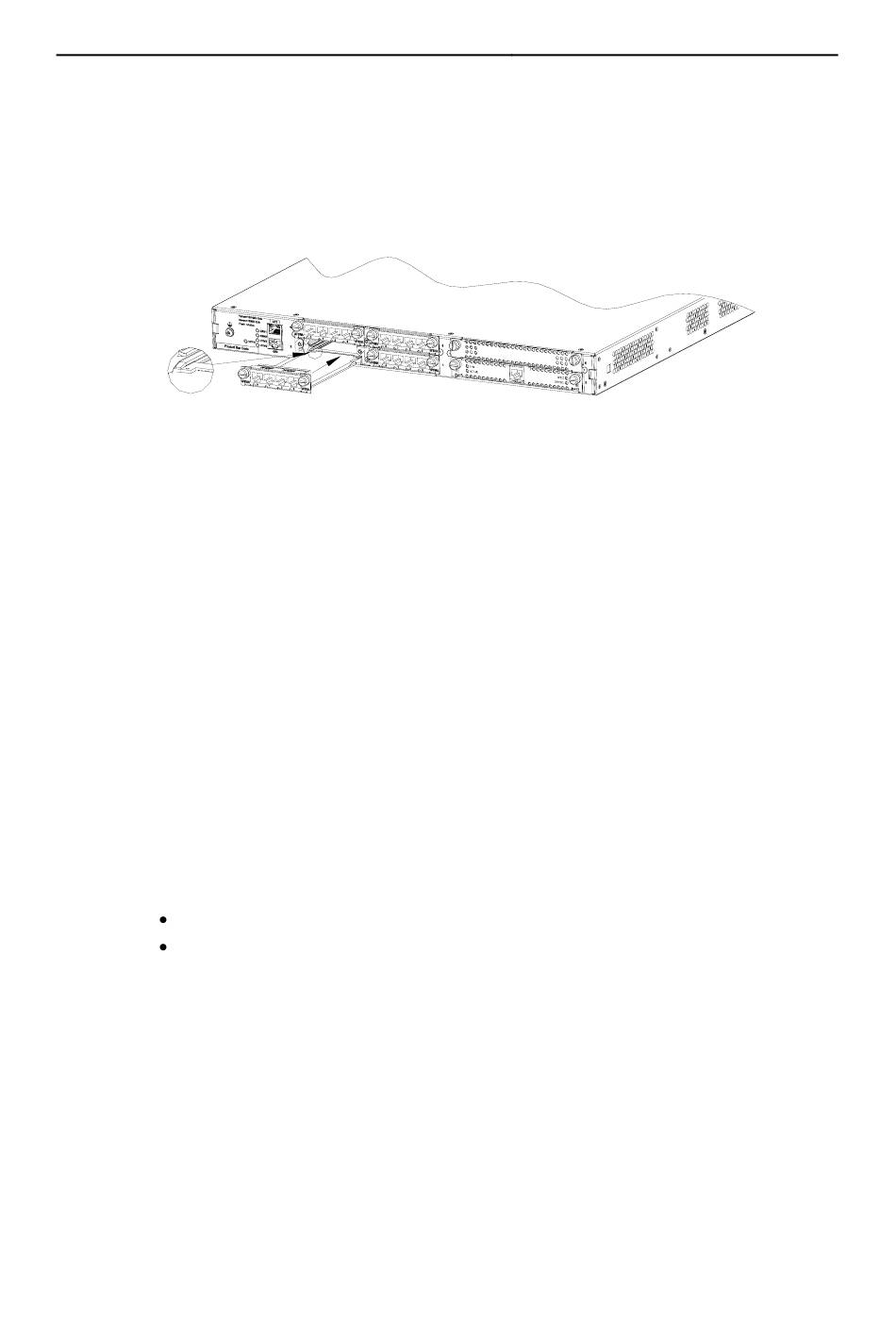

Figure 1-2 Installing SIC
IV. Removing a SIC
Follow these steps to remove a SIC:
Step 1: Place the rear panel of the Router towards you;
Step 2: Turn off the power switch of the Router and unplug the power cord;
Step 3: Unplug all the network interface cables connected to the rear panel of the
Router;
Step 4: Remove the captive screws on both sides of the SIC using the flat-blade
screwdriver;
Step 5: Pull the SIC outward until it is completely taken out of the Router chassis.

1.5.2 Installing/Removing a MIM

I. Tools required
Flat-blade screwdriver
ESD-preventive wrist strap and ESD-preventive glove
II. Installing a MIM
Follow these steps to install a MIM:
Step 1: Place the rear panel of the Router towards you;
Step 2: Turn off the power switch of the Router and unplug the power cord;
Step 3: Select a slot and insert the MIM along the guides in the slot until it contacts the
rear panel of the Router;
Step 4: Fix the MIM into the Router with captive screws;
1-9
Chapter 1 Overview
