Interface Card and Interface Module Manual
H3C MSR 20/30/50 Series Routers
Minimum baud rate (bps)
Maximum baud rate (bps)
Service supported
3.5.3 Interface LEDs

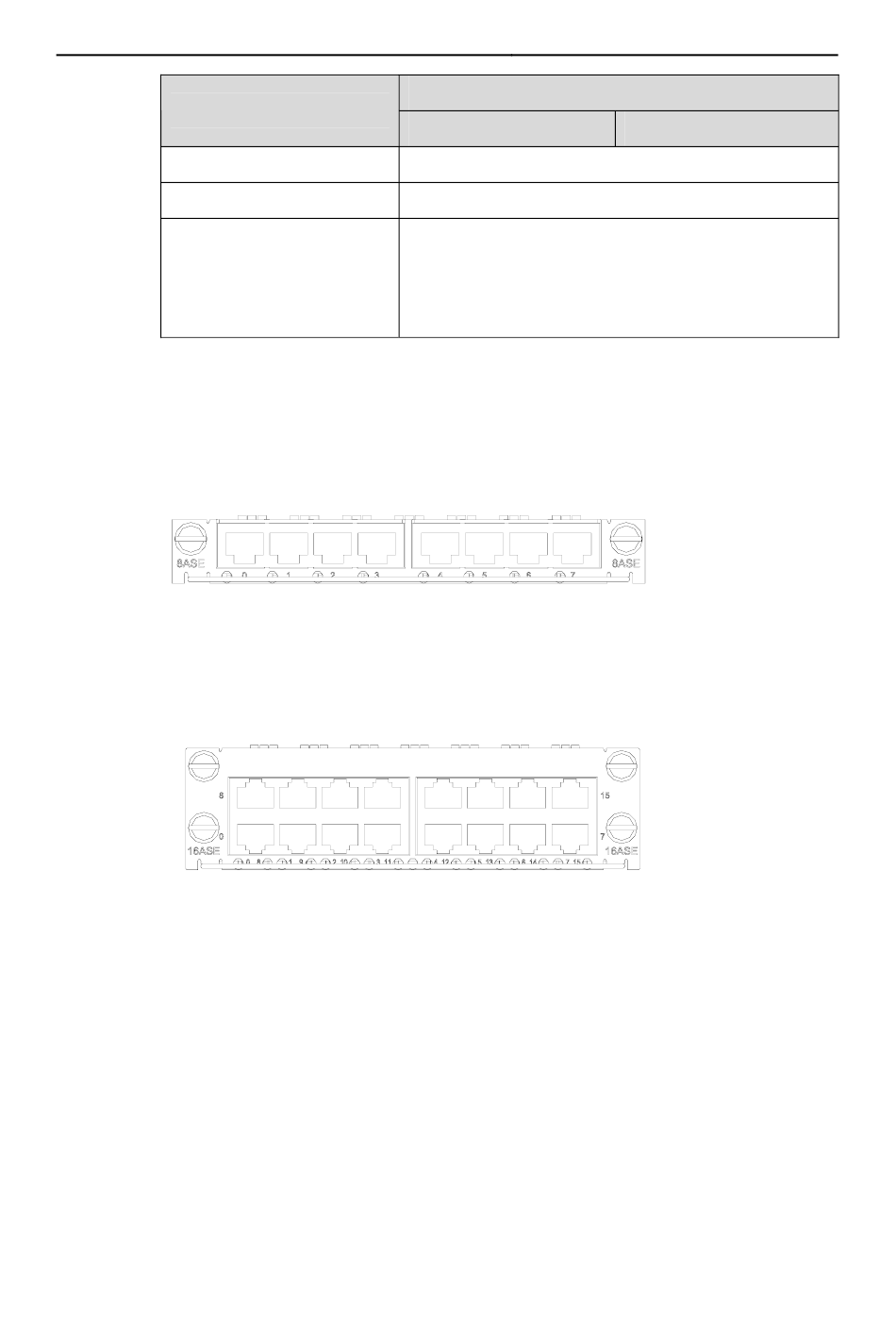

MIM-8ASE panel is shown in the following figure:
Figure 3-24 MIM-8ASE panel
MIM-16ASE panel is shown in the following figure:
Figure 3-25 MIM-16ASE panel
Each channel on MIM-8ASE/MIM-16ASE has only one LED. It is ON when the link is
connected, and blinks when the link is active (that is, transmitting/receiving data).
3.5.4 Interface Cable
There are two types of interface cables for MIM-8ASE and MIM-16ASE: AUX cable and
dumb terminal cable (RJ-45-RJ-45), which can be made on site using a network cable.
See Low-End and Mid-Range Series Routers Cable Manual for their pinouts.
Attribute
300
115.2 k
1) Dialup through Modem
2) Backup
3) Terminal access service
4) Asynchronous leased line service
Chapter 3 Multifunctional Interface Modules
Description
MIM-8ASE module
3-16
MIM-16ASE module
