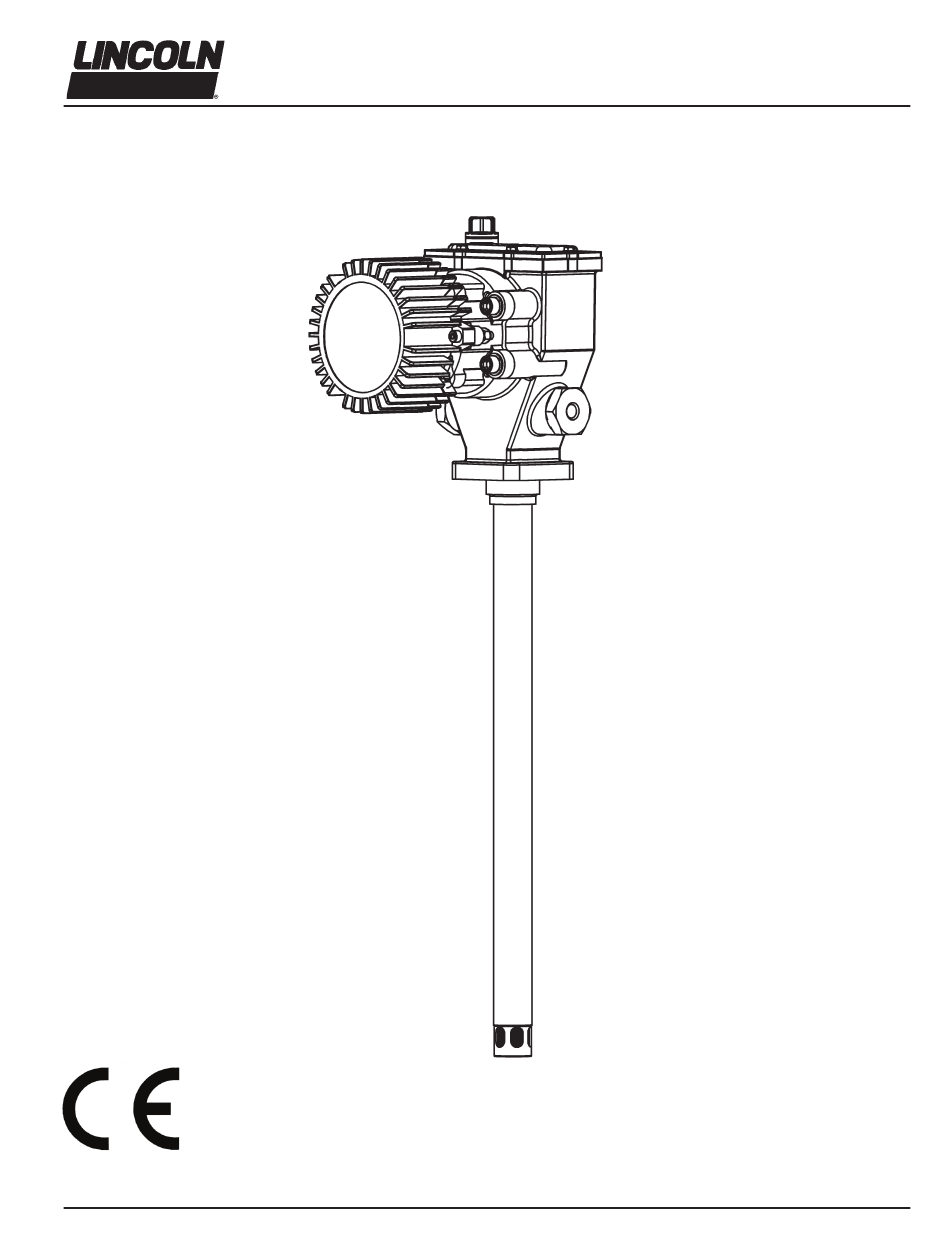

- Page 1 FlowMaster 12 VDC - Rotary Driven Electric Pump - Series “A” ® - Model 276041 (5 Gal. Size) U.S. Patent Pending Foreign Patent Pending This FlowMaster™ Conforms to the European Directive for Product Safety. - C8 - 323A JULY - 2008 Form 403751 Section Page...
-
Page 2: Table Of Contents
Local safety regula- General Description tions regarding installation, operation and maintenance must The Lincoln Industrial rotary DC electric pump uses a 12VDC be followed. motor and a two stage planetary gear drive. Grease output is proportional to the pump RPM. -
Page 3: Pump Performance And Specifications
Operating Temperature, °F (°C)- -40 to +150 (-40 to 65) Typical installation is shown only as a guide for selecting and Operating Voltage, VDC - installing system components. Contact your Lincoln Motor, HP (kW) 1/3 (0.25) Industrial representative for assistance in designing a Current draw, AMPS system to suit your specific needs. -
Page 4: Crank Case Oil
FlowMaster™ Rotary Driven Electric Pump 1A). The motor is polarity sensitive and will not run if improperly wired. Fuse the motor at 20 amps. Mount the pump securely on the drum cover. Failure to do so could result in personal injury and equipment damage. Always install a relief valve in the pump outlet to insure pump pres- Illustration 2 A - Safety Unloader 272722 or 272572... -
Page 5: Pump Dimensions
FlowMaster™ Rotary Driven Electric Pump Illustration #3 Page Number - 5 Form 403751... - Page 6 FlowMaster™ Rotary Driven Electric Pump [42 - 51 Page 8] Illustration #4 Page Number - 6 Form 403751...
- Page 7 FlowMaster™ Rotary Driven Electric Pump Illustration #5 Page Number - 7 Form 403751...
- Page 8 FlowMaster™ Rotary Driven Electric Pump (Final Stage) (First Stage) Illustration #6 Page Number - 8 Form 403751...
-
Page 9: Repair Parts List
FlowMaster™ Rotary Driven Electric Pump Repair Parts Item No. Qty Description All Models Item No. Qty Description All Models Flat Head Screw (1/4 x 1-3/4) 270635 O-Ring Counter Weight 272197 O-Ring Retaining Ring 270609 Backup Washer Crankrod 270665 O-Ring 272567 Retaining Ring 270608 Pump Shaft... -
Page 10: Troubleshooting
FlowMaster™ Rotary Driven Electric Pump Troubleshooting Condition Possible Cause Corrective Action Pump does not run. Pump is seized or damaged. Dismantle the pump and repair defective or seized component. See disassembly and assembly procedure. Incorrect polarity. Check to ensure red motor lead is connected to the positive battery terminal. - Page 11 FlowMaster™ Rotary Driven Electric Pump Declaration of Conformity as Defined by Machinery Directive 98/37/EC This is to declare that the design of the DC FlowMaster Lubrication Pump in the version supplied by us complies with the provision of the Directive 98/37/EC. Applied Harmonized Standards: EN 292-1 Safety of Machinery Part 1 Basic Terminology , Methodology.
- Page 12 (5) years following the date of purchase. If equipment is determined by Lincoln, in its sole discretion, to be defective during the first year of the warranty period, it will be repaired or replaced at Lincoln’s discretion, without charge.
