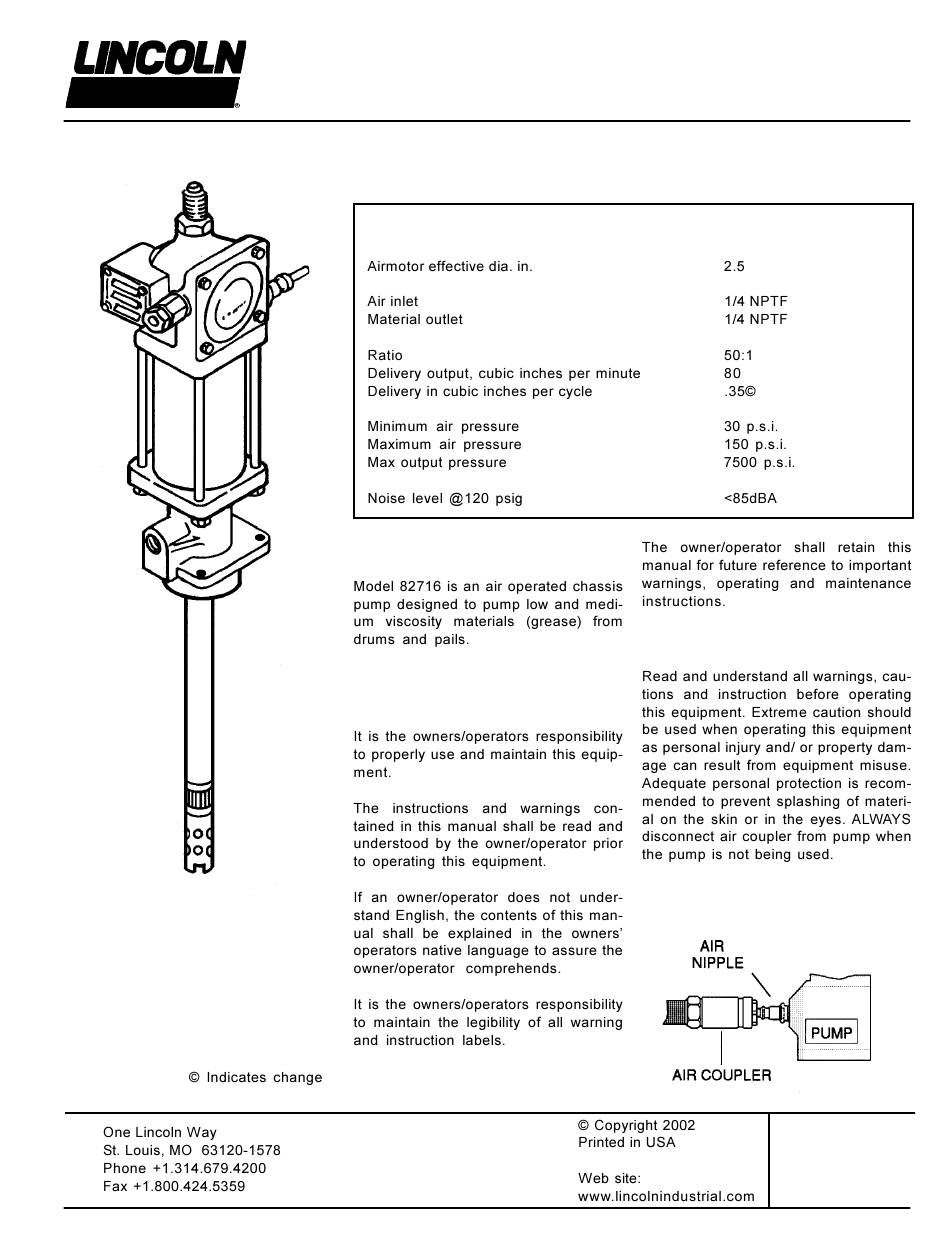

- Page 1 MODEL 82716 AIR OPERATED CHASSIS PUMP SERIES “F” OWNER/OPERATOR MANUAL SPECIFICATIONS DESCRIPTION SAFETY INFORMATION OWNER/OPERATOR RESPONSIBILITY - A5 Section - 54F Page July 2002 Form 403232...
- Page 2 FAILURE TO HEED THE FOLLOWING WARNINGS INCLUDING MISUSE, OVER PRESSURIZING, MODIFYING PARTS, USING INCOMPATIBLE CHEMICALS AND FLUIDS, OR USING WORN OR DAMAGED PARTS, MAY RESULT IN EQUIPMENT DAMAGE AND/OR SERIOUS PERSONAL INJURY, FIRE, EXPLOSION, OR PROPERTY DAMAGE. · · · ·...
- Page 3 ACCESSORIES PRESSURE RELIEF PROCEDURE MAINTENANCE To prevent personal injury, perform PRESSURE RELIEF PROCEDURE before and after operating the pump and before any maintenance. LUBRICATION OPERATION INSPECTION BEFORE USING PUMP Prior to operation or maintenance a visual inspec- tion shall be made. Check pump system for leaks, worn or missing parts.
- Page 4 DISASSEMBLY NOTE Page Number - 4 Form 403232...
- Page 5 ASSEMBLY REPAIR Page Number - 5 Form 403232...
- Page 6 TROUBLESHOOTING PROBLEMS AIRMOTOR DOES NOT OPERATE. · · · AIR SEEPAGE FROM AIR EXHAUST WHILE PUMP IS NOT OPERATING · LOSS OF PRESSURE, VOLUME OR CONTINUOUS OPERATION OF PUMP WHEN NOT IN NORMAL USE. · · · · LUBRICANT LEAKING FROM WEEP HOLE IN OUTLET CASTING.
- Page 7 IMPORTANT TO LUBRICATE AIR VALVE MECHANISM Page Number - 7 Form 403232...
- Page 8 Part Qty Description Part Qty Description Part Qty Description 10294 Tie rod 30003% Packing nut gasket 55138 Spring 11329 Air piston bolt 30011% Valve cap gasket 56038% Spring 11337 Air piston nut 31047%* Check seat gasket 57027 Ball stop 11340% Air motor piston rod 31048% Connector gasket...
