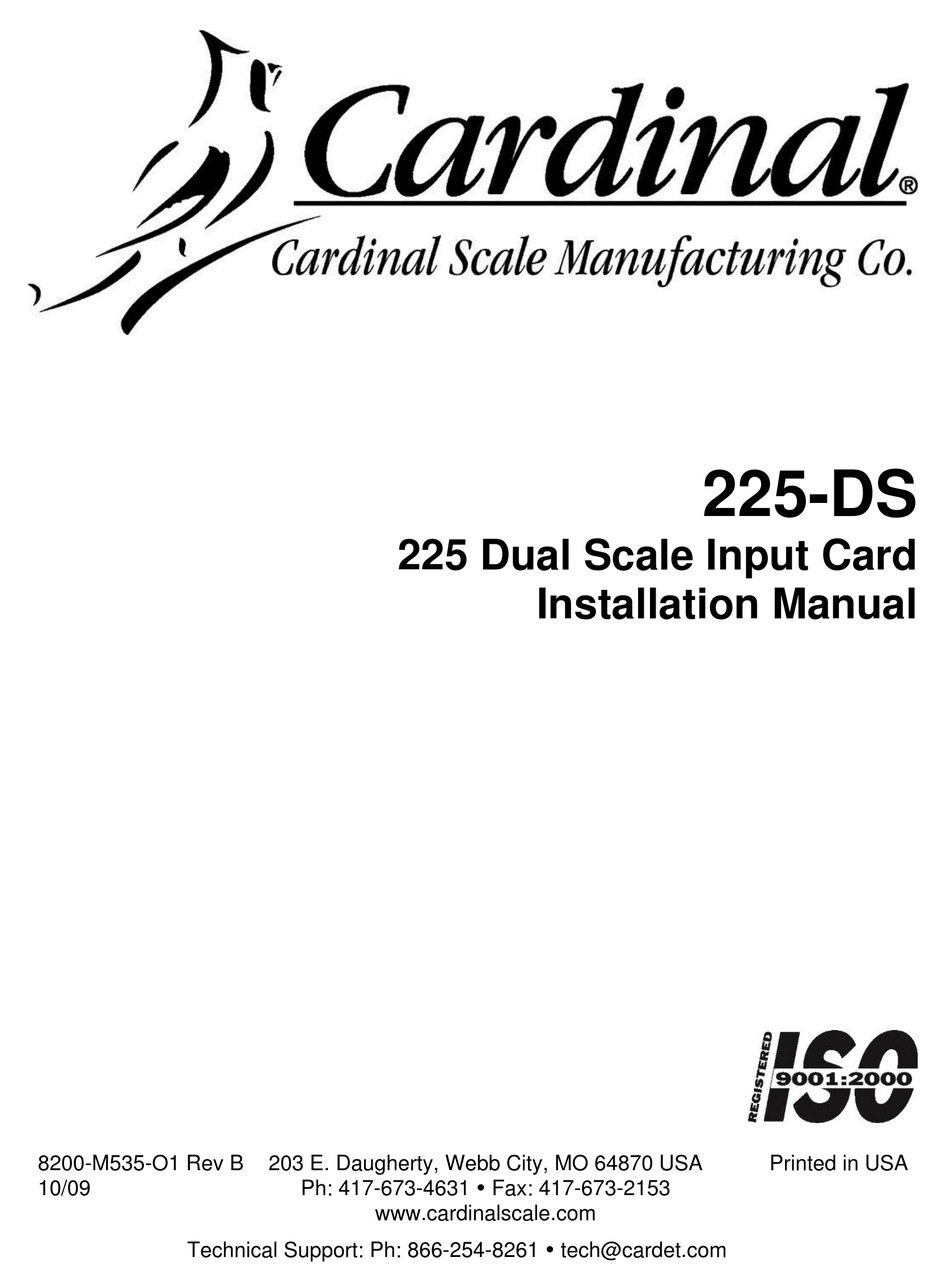

Cardinal 225-DS Installation Manual

Dual scale input card
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
225-DS
225 Dual Scale Input Card
Installation Manual
8200-M535-O1 Rev B
203 E. Daugherty, Webb City, MO 64870 USA
Printed in USA
Ph: 417-673-4631  Fax: 417-673-2153
10/09
www.cardinalscale.com
Technical Support: Ph: 866-254-8261  tech@cardet.com
8200-M535-O1 Rev B  225-DS
1

Advertisement

Table of Contents
loading

Related Manuals for Cardinal 225-DS

Summary of Contents for Cardinal 225-DS

  • Page 1 225-DS 225 Dual Scale Input Card Installation Manual 8200-M535-O1 Rev B 203 E. Daugherty, Webb City, MO 64870 USA Printed in USA Ph: 417-673-4631  Fax: 417-673-2153 10/09 www.cardinalscale.com Technical Support: Ph: 866-254-8261  tech@cardet.com 8200-M535-O1 Rev B  225-DS...
  • Page 2 8200-M535-O1 Rev B  225-DS...

  • Page 3: Table Of Contents

    Persons engaging the procedures do so entirely at their own risk. PRECAUTIONS Before beginning installation of this option card, read this manual and pay special attention to all "WARNING" symbols: ELECTRICAL STATIC IMPORTANT WARNING SENSITVE 8200-M535-O1 Rev B  225-DS...

  • Page 4: Introduction

    225-DS without the need for complicated programming devices. The 225-DS card resides in the 225 main enclosure and has a 16 pin dual in-line Internal Bus connector to provide an easy connection to the 225 internal hardware. The 225-DS card has two 7 position spring cage clamp connectors for connecting to strain gage transducers.

  • Page 5: Specifications

    0.3uV/e (Class III/IIIHD) OIML 0.7uV/e (Class III) Scale Divisions: NON-COMMERCIAL 100 to 240,000 NTEP 100 to 10,000 (Class III/IIIL) CANADA 100 to 10,000 (Class III/IIIHD) OIML 100 to 10,000 (Class III) Division Value: Programmable Weighing Units: Programmable 8200-M535-O1 Rev B  225-DS...

  • Page 6: Installation

    5. Referring to Figure No. 2, on the 225 main board, locate the 4 threaded mounting spacers and connector P2 on the main board. 8200-M535-O1 Rev B  225-DS...
  • Page 7 8. To install the Dual Scale Input Card, in P2 carefully align the dual row of pins on the top of the 225-DS card (on the trace side of the card) with connector P2 on the main board and apply even downward pressure to the edge of the 225-DS.
  • Page 8 INSTALLATION, CONT. 9. Align the holes in the 225-DS with the threaded mounting spacers on the main board and using the four lock washers and screws supplied with the 225-DS, secure the card to the main board. Refer to Figure No. 5.

  • Page 9: Load Cell Cable Connection With Rfi Suppression

    Load Cell Cable Connection with RFI Suppression To eliminate RFI, the additional load cell cables should be routed through the special metallic gland connectors included with the 225-DS and the shield wire from the load cell cables must be connected to these gland connectors for grounding.
  • Page 10 See Figure No. 9. Insert Wire Figure No. 9 10. Repeat the procedure until all wires are in place. 11. After all terminations have been made, remove the excess cable from the enclosure. Press Down 8200-M535-O1 Rev B  225-DS...
  • Page 11 Shield Wire Figure No. 10 13. The shield wire is secured when tightening the gland connector nut. See Figure No.11. 14. Do not over-tighten the connector but make certain it is snug. Figure No. 11 8200-M535-O1 Rev B  225-DS...

  • Page 12: Load Cell Cable Connection Without Rfi Suppression

    Load Cell Connections with Over 30 Feet of Cable On installations with over 30 feet of cable between the 225-DS and the load cells, sense wires should be used. The sense wires must be connected between the +SENS, -SENS terminals...

  • Page 13: Sense Jumpers

    SCALE 2 To use the sense wires for Scale 2, the +SENS (J5) and -SENS (J6) jumpers on the 225-DS must be open (on one pin only) or removed. SCALE 3 To use the sense wires for Scale 3, the +SENS (J3) and -SENS (J4) jumpers on the 225-DS must be open (on one pin only) or removed.

  • Page 14: Indicator Setup

    ENTER key to save the new setting and return to SETUP MENU #1. Allowable values are: 1, 2 or 3. Note that the 225 will check for the 225-DS card. If the card is not found, it will display an error message and default back to 1 scale.
  • Page 15 9. TOTALIZE=XXX (SCALE TOTALIZER) With the 225-DS (Dual Scale) Card installed and the number of scales set for 2 or 3, the 225 can sum the weights of two or more scales and make the total available to be displayed.

  • Page 16: Calibration

    3.CALIBRATE SCALE 1 4.CALIBRATE SCALE 2 9.DEL CUSTOM TICKET 5.CALIBRATE SCALE 3 10.PRINT SETUP Enter Selection: 1 EXIT NOTE! Parameter 5 will only be shown if a 3 has been entered for the number of scales. 8200-M535-O1 Rev B  225-DS...

  • Page 17: Multi-Scale Operation

    Example printout 10:10 12/09/2008 12000 lb G (Scale 1) (Exact printout depends on the settings in PRINT TABBING 10:10 12/09/2008 MENU #1 and #2). 6000 lb G (Scale 2) 10:10 12/09/2008 11999 lb G (Scale 3) 8200-M535-O1 Rev B  225-DS...
  • Page 18 The weight data from the TOTAL scale will be printed when the PRINT key is pressed. Example printout 10:13 12/09/2008 26000 lb G (Total) (Exact printout depends on the settings in PRINT TABBING MENU #1 and #2). 8200-M535-O1 Rev B  225-DS...
  • Page 19 8200-M535-O1 Rev B  225-DS...
  • Page 20 8200-M535-O1 Rev B  225-DS...
