Summary of Contents for Cardinal 2341

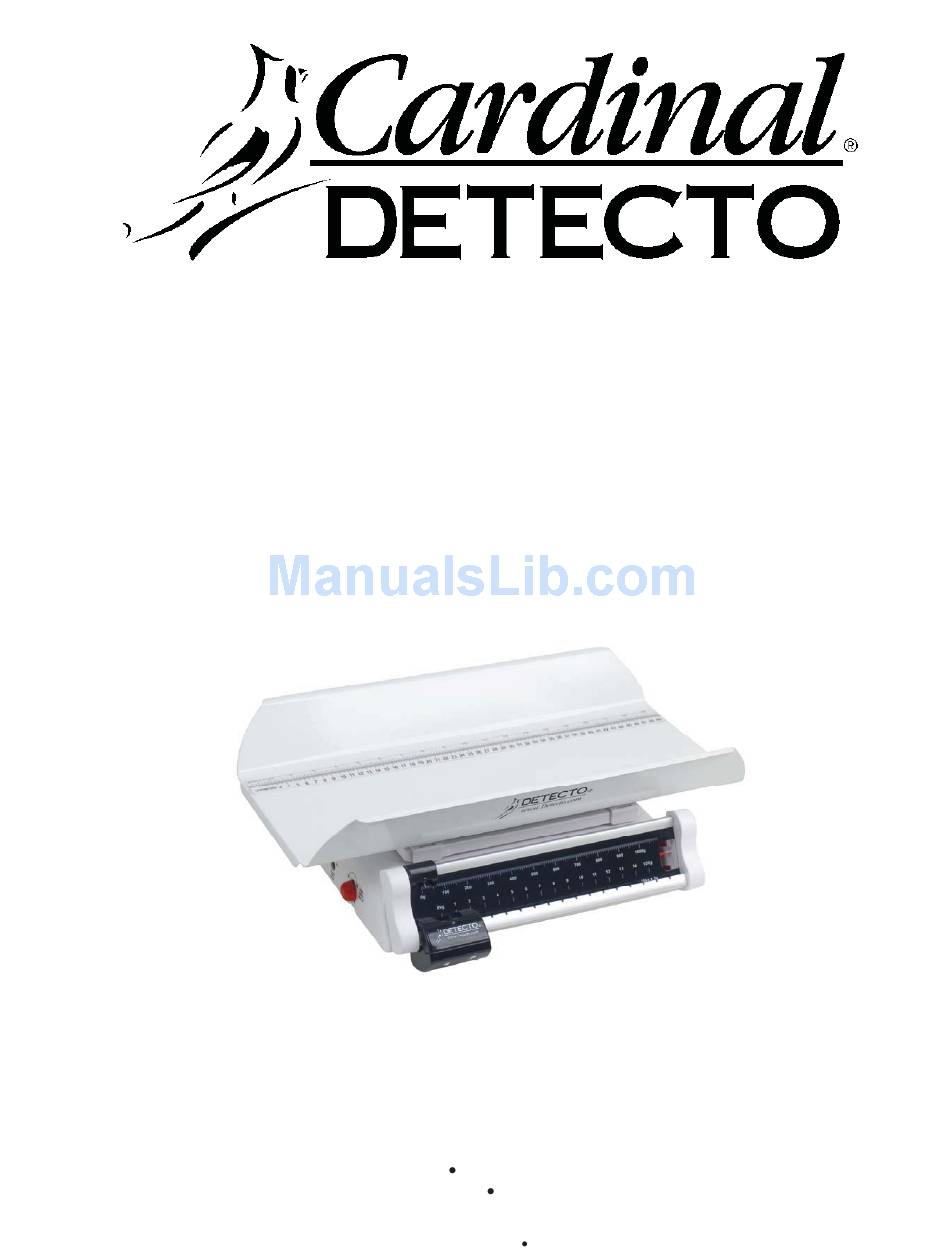

- Page 1 MODEL 2341 BABY SCALE Owners Manual CARDINAL SCALE MFG. CO. 8535-M213-O1 Rev. B PO BOX 151 WEBB CITY, MO 64870 06/11 PH (417) 673-4631 FAX (417) 673-5001 Web Site - http://www.detectoscale.com Technical Support: Ph: 866-254-8261 techsupport@cardet.com...
-
Page 3: Specifications
SPECIFICATIONS Capacity ....16 kg x 5 kg Tray Size ....51 cm W x 20 cm D / 20 in W x 8 in D (flat portion) Overall Size ..... 51 cm W x 33 cm D x 19 cm H / 20 in W x 13 in D x 7.5 in H Application .... - Page 4 4. Unlock the beam by rotating the lock knob as indicated on the right side of the scale. (fig. 4) fig. 4 5. To zero scale, slide both upper & lower poise weights to the far left until they point to 0 Upper Poise Lower Poise fig.
-
Page 5: Operating Instructions
OPERATING INSTRUCTIONS 1. Before weighing, make certain the scale is set to zero. See set-up above if it is not. 2. Place infant on scale. 3. Lift the large lower poise and slide it until the beam tip starts 4. Slide the small upper poise until the beam pointer aligns with the fixed pointer. (fig. 7) 5.
