30
en | Connection
3.2

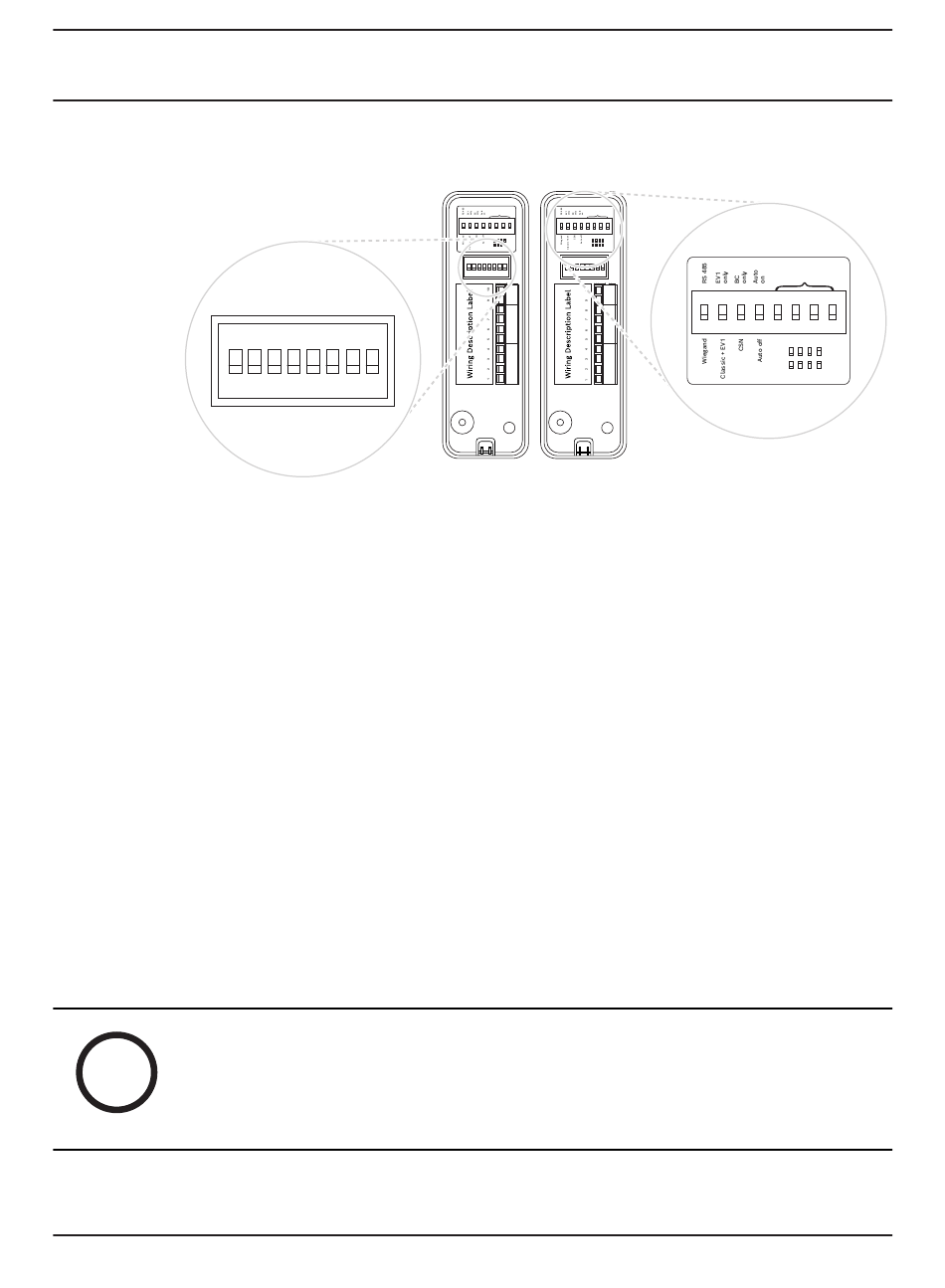

Configuring the reader (DIP switches)
ON
The reader has 8 DIP switches. Each switch is numbered from 1 to 8.
With the DIP switches it possible to:
–
Set the interface type
–
Set the credential technology
–
Enable/disable automatic mode (Auto on / Auto off → reads either
Bosch code or CSN)
–
Enable/disable CSN reading (reads either CSN only or Bosch code
only)
–
Set the address of the reader
To change the reader configuration:
1. Power-off the reader.
2. Set the DIP switches correctly.
3. Power-on the reader.
Notice!
i
Any changes that are done to the DIP switches while the
power is on are not considered.
2020-10 | V02 |
1
2
3
4
5
6
7
8
LECTUS duo 3000 readers
RS 485 BUS ADR
RS 485 BUS ADR
2
3
2
2
2
1
2
0
2
3
2
2
2
1
2
0
ON
ON
OFF
OFF
#1
#1
#7
#7
ON
ON
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
Bosch Security Systems B.V.
RS 485 BUS ADR
3
2
1
0
2
2
2
2
ON
OFF
#1
#7
