Bosch ARD-FPBEW2-IC Installation Manual

Fpbe w2 fingerprint reader.
Hide thumbs

Advertisement

FPBE W2 Fingerprint Reader
ARD-FPBEW2-IC
en
Installation Guide

Advertisement

   Related Manuals for Bosch ARD-FPBEW2-IC

   Summary of Contents for Bosch ARD-FPBEW2-IC

  • Page 1

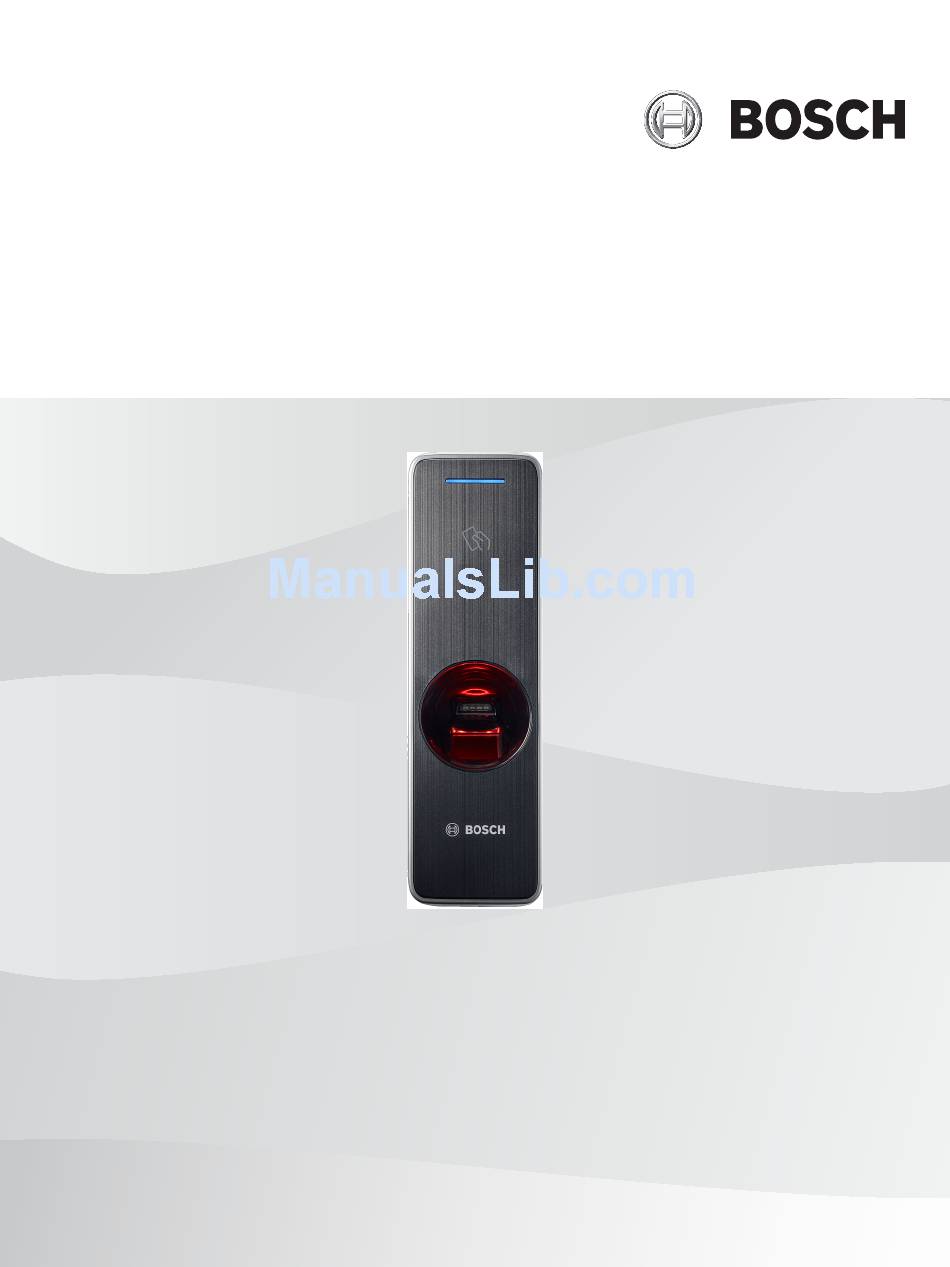

    FPBE W2 Fingerprint Reader ARD-FPBEW2-IC Installation Guide...

  • Page 3: Table Of Contents

    How to enroll a fingerprint Installation Fixing the bracket and the product Power supply connection Network connection - TCP/IP Wiegand Connection RS 485 Connection Resetting Network Settings Technical Data Product Specifications Dimensions 2018-02 | ARD-FPBEW2-IC | Bosch Access Systems GmbH...

  • Page 4: Safety

    Notice! If the product has been damaged due to independent installation or repair of the product by the user, free A/S service will not be provided. Bosch Access Systems GmbH 2018-02 | ARD-FPBEW2-IC |...

  • Page 5

    Notice! For further information on this product download the Installation Manual and firmware at our website: http://www.boschsecurity.com. Go to Products > Access Control Systems > Readers and Cards > Biometric readers. 2018-02 | ARD-FPBEW2-IC | Bosch Access Systems GmbH...

  • Page 6: Introduction

    FPBE W2 Fingerprint en | Introduction Reader Introduction Components Ferrite Core PVC anchor (1 EA) (2 EA) Heat shrink Star-shaped wrench Fixing screw (2 Bracket ARD-FPBEW2 Bosch Access Systems GmbH 2018-02 | ARD-FPBEW2-IC |...

  • Page 7

    Introduction | en FPBE W2 Fingerprint Reader Quick Safety OSS Manual Installation Instructions Guide Drilling template Notice! Components may vary according to the installation environment. 2018-02 | ARD-FPBEW2-IC | Bosch Access Systems GmbH...

  • Page 8: Names And Function Of Parts

    Indicates the operational status of the product with the color of the LED lamp. RF card authentication unit Reads RF cards for entering and exiting. Fingerprint authentication unit Reads fingerprints placed on it for entering and exiting. Bosch Access Systems GmbH 2018-02 | ARD-FPBEW2-IC |...

  • Page 9

    Resets the network configuration. For details, refer to the Resetting Network Setting. LED lamp for Network Shows the status of the network connection. Cable – Interface cable – Power cable – Ethernet connector 2018-02 | ARD-FPBEW2-IC | Bosch Access Systems GmbH...

  • Page 10: Cables And Connectors

    FPBE W2 Fingerprint en | Introduction Reader Cables and Connectors Bosch Access Systems GmbH 2018-02 | ARD-FPBEW2-IC |...

  • Page 11

    TTL IN0 (LED green) Purple PWR +VDC Not used Pink PWR GND Black (White stripe) 485 TRXN (RxTx-) Yellow (Black stripe) 485 TRXP (RxTx+) Blue (White stripe) 485 PAG White (Black stripe) 2018-02 | ARD-FPBEW2-IC | Bosch Access Systems GmbH...

  • Page 12

    FPBE W2 Fingerprint en | Introduction Reader ENET TXP White ENET TXN Orange ENET RXP Black ENET RXN Yellow Bosch Access Systems GmbH 2018-02 | ARD-FPBEW2-IC |...

  • Page 13: How To Enroll A Fingerprint

    In the case of a user whose fingerprint cannot be recognized well, the authentication rate can be improved by enrolling the same finger twice repeatedly. – If a finger has a cut or the fingerprint is blurry, select another finger for the fingerprint. 2018-02 | ARD-FPBEW2-IC | Bosch Access Systems GmbH...

  • Page 14

    5. If you make the finger upright so that the contact area with the sensor has decreased or the angle of finger has warped, fingerprint authentication may not be performed. Bosch Access Systems GmbH 2018-02 | ARD-FPBEW2-IC |...

  • Page 15

    3. If the finger has a cut, register the fingerprint of another finger. 4. The initially registered fingerprint often may have not been scanned correctly, so register the fingerprint again according to ‘Cautions for enrolling a fingerprint’. 2018-02 | ARD-FPBEW2-IC | Bosch Access Systems GmbH...

  • Page 16: Installation

    Fix the bracket firmly using fixing screws through the bracket to the position where ARD-FPBEW2 will be installed. Notice! If installing the ARD-FPBEW2 on a concrete wall, drill holes, insert PVC anchors, and fix them with fixing screws. Bosch Access Systems GmbH 2018-02 | ARD-FPBEW2-IC |...

  • Page 17

    Installation | en 17 FPBE W2 Fingerprint Reader 2018-02 | ARD-FPBEW2-IC | Bosch Access Systems GmbH...

  • Page 18

    FPBE W2 Fingerprint en | Installation Reader Notice! To avoid RF interference, a minimum separation distance must be maintained. Bosch Access Systems GmbH 2018-02 | ARD-FPBEW2-IC |...

  • Page 19

    3. Fix the wall mount bracket on a wall using the wall mounting screws. 4. Hook the FP reader on the wall mounting bracket. 5. Fix FP reader on the wall mounting bracket using the star-shaped screw. 2018-02 | ARD-FPBEW2-IC | Bosch Access Systems GmbH...

  • Page 20: Power Supply Connection

    Bosch Access Systems GmbH 2018-02 | ARD-FPBEW2-IC |...

  • Page 21: Network Connection - Tcp/ip

    LAN connection (connecting to a PC directly) The ARD-FPBEW2 has an automatic MDI/MDIX function so that it can be connected to a PC directly using a normal straight type CAT-5 cable (or higher), not a cross cable. 2018-02 | ARD-FPBEW2-IC | Bosch Access Systems GmbH...

  • Page 22: Wiegand Connection

    FPBE W2 Fingerprint en | Installation Reader Wiegand Connection Bosch Access Systems GmbH 2018-02 | ARD-FPBEW2-IC |...

  • Page 23: Rs 485 Connection

    Installation | en 23 FPBE W2 Fingerprint Reader RS 485 Connection 2018-02 | ARD-FPBEW2-IC | Bosch Access Systems GmbH...

  • Page 24: Resetting Network Settings

    3.2 Server mode: Disabled 3.3 RS-485: PC connection, 115200 bps 4. Change the TCP/IP address or RS-485 information. 5. Turn the power off later on and then check the network setting is properly. Bosch Access Systems GmbH 2018-02 | ARD-FPBEW2-IC |...

  • Page 25: Technical Data

    Product Specifications Category Feature Specification Credential Biometric Fingerprint RF Option 125 KHz EM/HID Proxy, 13.56 MHz MIFARE/DESFire/ DESFire EV1/iClass RF read range * MIFARE/DESFire/EM/HID Proxy/ iClass/ISO15693 : 50 mm, Felica: 30 mm 2018-02 | ARD-FPBEW2-IC | Bosch Access Systems GmbH...

  • Page 26

    50 mm x 172 mm x 43.5 mm (Bottom) / 38.2 mm (Top) Weight Device: 251g Bracket: 43g (Including washer and bolt) IP rating IP67 IK rating IK09 Certificates CE, FCC, KC, RoHS, REACH, WEEE Bosch Access Systems GmbH 2018-02 | ARD-FPBEW2-IC |...

  • Page 27

    More than 4.8 V Wiegand output VOL Less than 0.2 V Wiegand output Internally pulled up with 1 kΩ Pull-up resistance * RF read range will vary depending on the installation environment. 2018-02 | ARD-FPBEW2-IC | Bosch Access Systems GmbH...

  • Page 28: Dimensions

    FPBE W2 Fingerprint en | Technical Data Reader Dimensions Dimensions in mm Bosch Access Systems GmbH 2018-02 | ARD-FPBEW2-IC |...

  • Page 32

    Bosch Access Systems GmbH Charlottenburger Allee 50 52068 Aachen Germany www.boschsecurity.com © Bosch Access Systems GmbH, 2018...
