NETpodium Back Panels (1-1671579-1/1-1671579-2)

INSTRUCTION SHEET 411-117005 FEB 2017 REV B

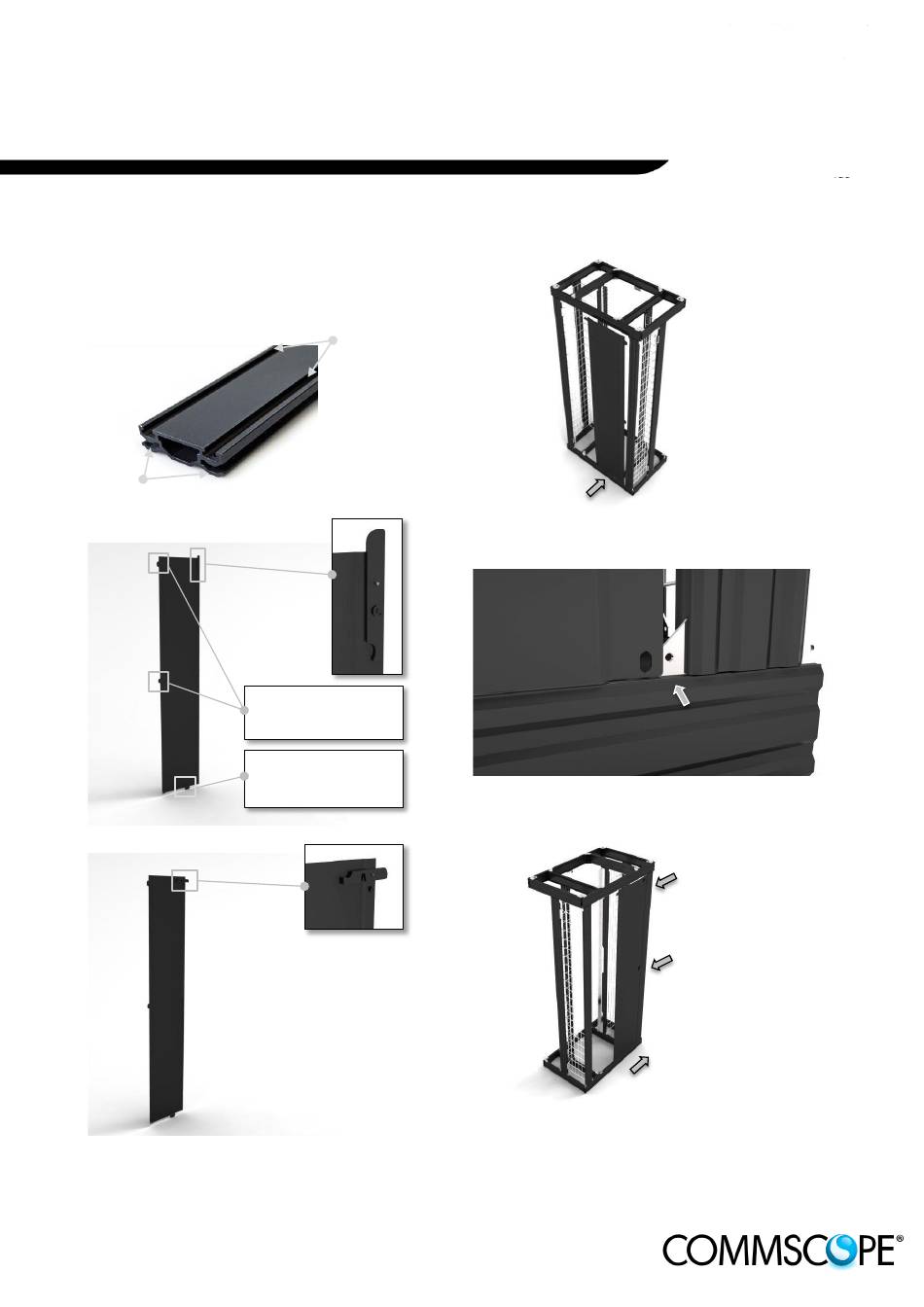

1. Kit content

Back panel left

Back panel right

Back strip (included with 1-1671579-2)

Assembly hardware

Groove

Positioning brackets,

located at the SIDE of

the back panel

Positioning bracket,

located at the BOTTOM

of the back panel

Place the rotating bracket in horizontal position.

1 pc

T-Channel

Place the positioning bracket at the bottom of the back panel in

the horizontal groove of the NETpodium profile.

Make sure that the back panel is positioned in front of the

installed bracket.

Slide the back panel to the right and insert the positioning

brackets on the side of the back panel into the vertical groove of

the NETpodium profile.

Table of Contents

Do you have a question about the NETpodium 1-1671579-1 and is the answer not in the manual?

Page 1 NETpodium Back Panels (1-1671579-1/1-1671579-2) INSTRUCTION SHEET 411-117005 FEB 2017 REV B 1. Kit content Back panel left 1 pc Back panel right 1 pc Back strip (included with 1-1671579-2) 1 pc Assembly hardware NETpodium aluminum profile T-Channel Groove Install Back Panel Left Place the positioning bracket at the bottom of the back panel in the horizontal groove of the NETpodium profile.
Page 2 NETpodium Back Panels (1-1671579-1/1-1671579-2) INSTRUCTION SHEET 411-117005 FEB 2017 REV B Turn the rotating bracket a quarter into the horizontal groove of the NETpodium profile. Install Back Panel Right Slide the back panel to the left and insert the positioning brackets on the side of the back panel into the vertical groove of the NETpodium profile.
Page 3 Install a back strip to close the gap between two NETpodium racks installed side by side. While CommScope has made every reasonable effor to ensure the accuracy of the information in this document, Technical Support CommScope does not guarantee that it is error-free, nor does CommScope make any other representation, warranty, or Technical Assistance Center (TAC) guarantee that the information is accurate, correct, reliable, or current.
