CommScope RK3-45A Assembly Instructions

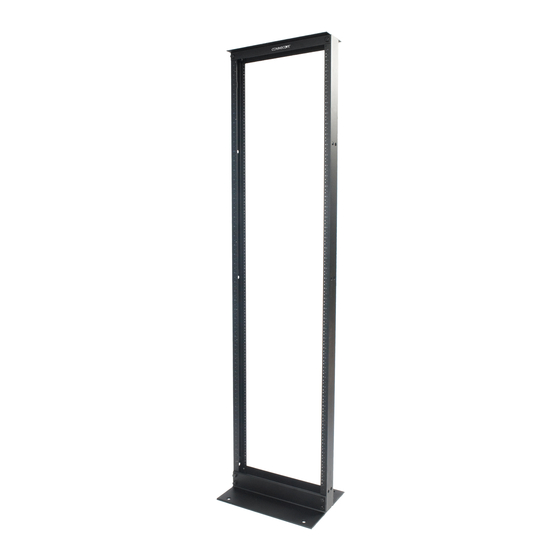

2-Post Equipment Rack Assembly Instructions
General
The 2-post equipment racks are industry standard 19 inch (483mm) and 23 inch (584mm) wide racks
available in 7-foot (2.1m), 8-foot (2.4m), and 9-foot (2.7mm) heights with either aluminum or steel vertical
uprights (rails). Aluminum uprights include 12-24 tapped holes that accept 12-24 x 1/2" mounting screws
(provided). Steel uprights include punched holes that accept M6 cage nuts and M6 x 12 mm mounting
screws (both provided). The 2-post racks are designed to withstand a 1000 lb. (454 Kg) centered static
load.
Ordering information is provided below:
Part Number Material ID
RK3-45A 760082479
RK3-52A 760082487
RK3-52A-23 760159749
RK3-58A 760139113
RK3-58A-23 760142364
RK6-45A 760082495
RK6-52A 760082503
RK12-45A 760082511
RK12-52A 760090100
RK3-45S 760090118
RK3-52S 760090126
RK6-45S 760090134
RK6-52S 760090142
RK6-58S 760139121
RK12-45S 760090159
RK12-52S 760090167
RK12-58S 760139139
Legal Disclaimer: It is highly recommended that installation of this product be performed by a qualified
and experienced installer. Improper installation of this product could result in damage to the product, other
equipment, or personal injury. CommScope cannot be held responsible for damage to equipment or
personal injury resulting from improper fastening or misuse of information presented in this document.
Racks must be wired per applicable sections of the National Electrical Code (NEC). If grounding is
required, appropriate grounding hardware approved by the NEC must be used.
www.commscope.com
45U Rack, aluminum rails, 3" x 7' (76mm x 2.1m)
52U Rack, aluminum rails, 3" x 8' (76mm x 2.4m)
52U Rack 23" (584mm) wide, aluminum rails, 3" x 9' (76mm x 2.7m)
58U Rack, aluminum rails, 3" x 9' (76mm x 2.7m)
58U Rack 23" (584mm) wide, aluminum rails, 3" x 9' (76mm x 2.7m)
45U Rack, aluminum rails, 6" x 7' (152mm x 2.1m)
52U Rack, aluminum rails, 6" x 8' (152mm x 2.4m)
45U Rack, aluminum rails, 12" x 7' (305mm x 2.1m)
52U Rack, aluminum rails, 12" x 8' (305mm x 2.4m)
45U Rack, steel rails, 3" x 7' (76mm x 2.1m)
52U Rack, steel rails, 3" x 8' (76mm x 2.4m)
45U Rack, steel rails, 6" x 7' (152mm x 2.1m)
52U Rack, steel rails, 6" x 8' (152mm x 2.4m)
58U Rack, steel rails, 6" x 9' (152mm x 2.7m)
45U Rack, steel rails, 12" x 7' (305mm x 2.1m)
52U Rack, steel rails, 12" x 8' (305mm x 2.4m)
58U Rack, steel rails, 12" x 9' (305mm x 2.7m)
WARNING
© 2013 CommScope, Inc. All rights reserved
Instruction Sheet 860419977
Description
Issue 6, July 2013
Page 1 of 4
