639846
Revision E,
Side-By-Side Mounting Kit
GENERAL INFORMATION
· The BSAMNT-SBS-1-2 Mounting Kit allows mounting two 300mm wide antennas with 2 mount points side by side. Please visit
the product page of this mounting kit on the commscope webpage for a list of antennas which are supported by this bracket.
· Mounting systems for cylindrical pipe installations (60 - 115m pipe diameter) for heavy duty applications.
PRE-INSTALLATION INSTRUCTIONS
· Thoroughly read the directions included in this bulletin before starting to assemble parts.
· Carefully remove all parts from the shipping boxes. Examine the antenna and hardware to ensure that all parts are
enclosed and that there is no physical damage.
· Check to ensure that the antenna feed connector mates with the jumper cable.
· Verify that frequency range shown on the label on the back of the antenna matches the frequency range of the
station equipment.
· Position the antennas so that the drain holes are directed down toward the ground.
GENERAL INFORMATION

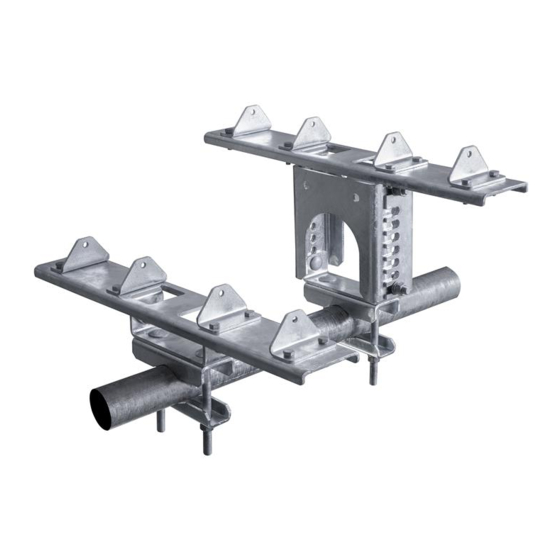

· BSAMNT-SBS-1-2 kit is used to mount two antennas side-by-side. Kit's details as Figure 2.
· The BSAMNT-SBS-1-2 kit contains two 627281 mounting brackets and one BSAMNT-4 downtilt kit. Refer to Bulletin 639849-1,
included with the BSAMNT-4 kit for proper antenna installation.
627281 MOUNTING BRACKET INSTALLATION
Do not remove, loosen, or adjust the antenna mounting plate(s).
Using the 627281 mounting brackets and hardware provided, assemble two antennas side-by-side. Tighten the M10 nut with
torque 37 N.m. Refer to Figures 1 and 3.
www.commscope.com
© 2019 CommScope, Inc. All rights reserved.
Visit our website at www.commscope.com or contact your local CommScope representative or BusinessPartner for more information.
All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope, Inc. 639846 E (08/19)
August 2019
(continued on page 2)
Page 1 of 5
