Side-By-Side Mounting Kit
BSAMNT-SBS-2-3
GENERAL INFORMATION

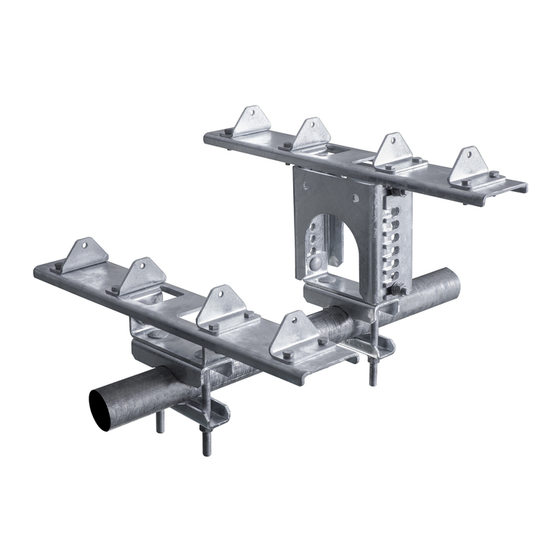

· The BSAMNT-SBS-2-3 Mounting Kit allows mounting either two 350mm wide or two 457mm wide antennas with 3 mount points side by
side. Please visit the product page of this mounting kit on the CommScope webpage for a list of antennas which are supported by this
bracket.
· Mounting systems for cylindrical pipe installations [60-115 mm (2.4" - 4.5") pipe diameter] for heavy duty applications.
PRE-INSTALLATION INSTRUCTIONS
· Thoroughly read the directions included in this bulletin before starting to assemble parts.
· Carefully unpack all parts from the shipping boxes. Examine kit to ensure that all parts are enclosed and that there is no physical
damage.
· Check to ensure that the antenna feed connector mates with the jumper cable.
· Verify that frequency range shown on the label on the back of the antenna matches the frequency range of the station equipment.
· Position the antennas so that the drain holes are directed down toward the ground.
© 2019 CommScope, Inc. All rights reserved.
Visit our website at www.commscope.com or contact your local CommScope representative or BusinessPartner for more information.
All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope, Inc. 639848 E (08/19)
August 2019
350 mm (13.8") WIDE ANTENNAS
457 mm (18.0") WIDE ANTENNAS
L C
C L
Page 1 of 13
