Quick Installation Guide
Thanks for Choosing Dinstar's VoIP Gateway
Please read this guide carefully before installing the gateway. If you need any technical support, please contact us.
Tel: +86 755 61919966
Email: support@dinstar.com
Website: www.dinstar.com
UC120-1V1S1O
UC120-1V2S
UC120-1V2O
UC120-1S1O
UC120-2S
UC120-2O
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dinstar UC120-1V1S1O
Summary of Contents for Dinstar UC120-1V1S1O
- Page 1 Quick Installation Guide UC120-1V1S1O UC120-1V2S UC120-1V2O UC120-1S1O UC120-2S UC120-2O Thanks for Choosing Dinstar's VoIP Gateway Please read this guide carefully before installing the gateway. If you need any technical support, please contact us. Tel: +86 755 61919966 Email: support@dinstar.com Website: www.dinstar.com...
- Page 2 UC120 Model and Interfaces Interface Model UC120-1V1S1O UC120-1V2S UC120-1V2O UC120-1S1O UC120-2S UC120-2O Indicators Indicators Definition Status Description The device is powered on Power Indicator The device is powered off or there is no power supply Slow Flashing The device is running properly...
-
Page 3: Installation Attentions

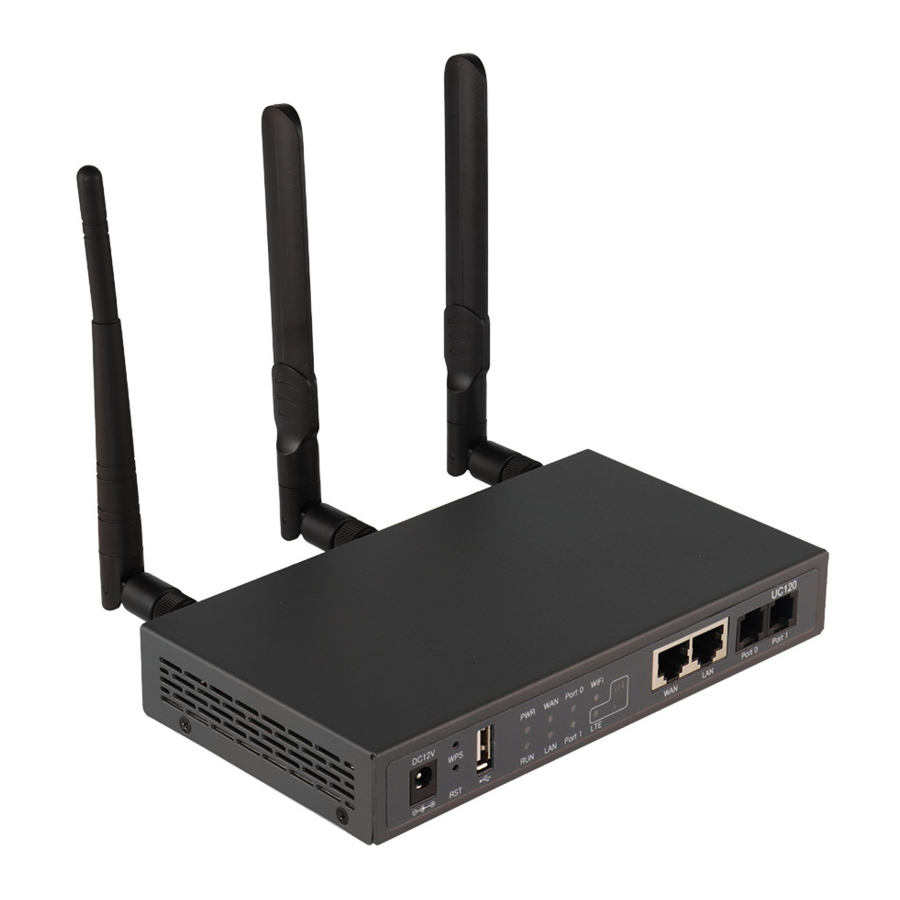

Indicators and Ports UC120-1V1S1O UC120-1S1O UC120 UC120 Port0 WiFi Port0 WiFi DC12V DC12V Port0 Port1 Port0 Port1 Port1 Port1 WAN LAN Power Jack Power Jack Signal strength Signal strength SD Card SD Card SIM Card WiFi Status WiFi Status LTE Antenna... -
Page 4: Installation Instruction
Port1 Power Adapter UC120 Port0 WiFi DC12V TCP/IP Port0 Port1 Port1 Insert SIM card to SIM slot (UC120-1V1S1O/1V2/1V2O). 192.168.11.1 192.168.11.1 Network cable Network cable 192.168.11.XXX Router/Switch Switch The same IP segment The above figure shows the network connection in bridge mode. - Page 5 Login Web Management System Open a web browser and enter the IP address of LAN port (the default IP is 192.168.11.1). You also can enter the IP address of WAN port, but it’s required to modify the IP address of PC to make it at the same network segment with that of WAN port. By default, the username is admin, while the password is admin@123#.
- Page 6 The default network mode of UC120 is router mode, and it can be set to bridge mode. In router mode, the IP address of WAN port and LAN port should be in different network segments. The default IP address of WAN port is obtained by DHCP, while the default IP address of LAN port is 192.168.11.1.
-
Page 7: Sip Trunk
SIP Trunk SIP trunk can realize the connection between UC120 and IP PBX or SIP servers. If UC120 is regarded as a terminal and intends to register to a server, you need to configure a SIP trunk connecting UC120 and the server, and then enable register for the SIP trunk. If the FXS f UC120 intends to register to a server, you need to configure a SIP trunk connecting UC120 and the server, then enable register for the port and designate the SIP trunk to it. -
Page 8: Basic Operation
Regular Expression Caller/Called number prefix supports regular expression Regular Expression Syntax Matches the starting position in a number string. For example, ^134 matches the numbers starting with 134. Matches the ending position of a string. For example, 2$ matches the numbers ending with 2. Separates alternate possibilities. - Page 9 More Details This document only provides instructions for quick installation and basic configuration. For detailed configuration and parameter explanation, please make reference to User Manual, or ask for online technical support. Frequently Asked Questions (1) UC120 call priority (from high to low) a.
