Quick Installation Guide
Thanks for Choosing Dinstar's VoIP Gateway
Please read this guide carefully before installing the gateway. If you need any technical support, please contact us.
Tel: +86 755 61919966
Email: support@dinstar.com
Website: www.dinstar.com
UC100-1V1S1O
UC100-1G1S1O
UC100-1G1S
UC100-1S1O
UC100-1S
UC100-2O
Advertisement
Table of Contents
Related Manuals for Dinstar UC100-1V1S1O
Summary of Contents for Dinstar UC100-1V1S1O
- Page 1 Quick Installation Guide UC100-1V1S1O UC100-1G1S1O UC100-1G1S UC100-1S1O UC100-1S UC100-2O Thanks for Choosing Dinstar's VoIP Gateway Please read this guide carefully before installing the gateway. If you need any technical support, please contact us. Tel: +86 755 61919966 Email: support@dinstar.com Website: www.dinstar.com...
- Page 2 UC100 Model and Interfaces Interface Model UC100-1V1S1O UC100-1G1S1O UC100-1G1S UC100-1S1O UC100-1S UC100-2O Indicators Indicators Definition Status Description The device is powered on Power Indicator The device is powered off or there is no power supply Slow Flashing The device is running properly...
-
Page 3: Installation Attentions

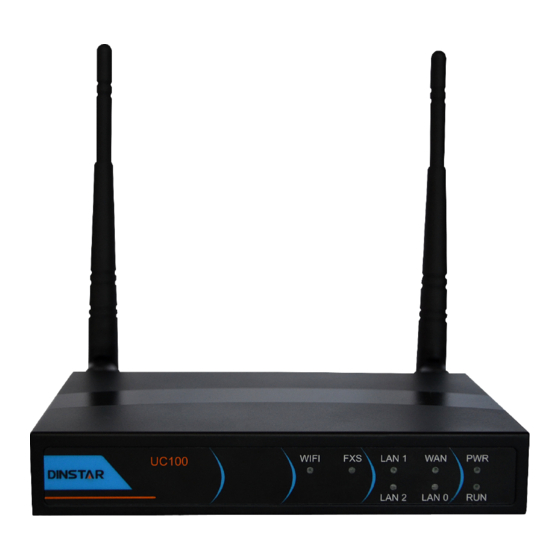

Indicators and Ports UC100-1V1S1O UC100-1S1O U C 100 WiFi LAN1 WAN U C 100 WiFi LAN1 WAN DI NS T A R W P S DI NS T A R LAN2 LAN0 DC12V LAN0 LAN1 LAN2 FXS FXO LAN2 LAN0... -
Page 4: Installation Instruction
Power Adapter IP address. The default IP address is 192.168.11.1. Note: UC100 can also be connected through WiFi. Insert SIM card to SIM slot (UC100-1V1S1O The default SSID of the device is "domain_ [last 6 digits of /1G1S1O/1G1S). MAC address] “ without password. - Page 5 Login Web Management System Open a web browser and enter the IP address of LAN port (the default IP is 192.168.11.1). You also can enter the IP address of WAN port, but it’s required to modify the IP address of PC to make it at the same network segment with that of WAN port.
- Page 6 The default network mode of UC100 is router mode, and it can be set to bridge mode. In router mode, the IP address of WAN port and LAN port should be in different network segments. The default IP address of WAN port is obtained by DHCP, while the default IP address of LAN port is 192.168.11.1.
-
Page 7: Sip Trunk
SIP Trunk SIP trunk can realize the connection between UC100 and IPPBX or SIP servers. If UC100 is regarded as a terminal and intends to register to a server, you need to configure a SIP trunk connecting UC100 and the server, and then enable register for the SIP trunk. If the FXS f UC100 intends to register to a server, you need to configure a SIP trunk connecting UC100 and the server, then enable register for the port and designate the SIP trunk to it. -
Page 8: Basic Operation
Regular Expression Caller/Called number prefix supports regular expression Regular Expression Syntax Matches the starting position in a number string. For example, ^134 matches the numbers starting with 134. Matches the ending position of a string. For example, 2$ matches the numbers ending with 2. Separates alternate possibilities. - Page 9 More Details This document only provides instructions for quick installation and basic configuration. For detailed configuration and parameter explanation, please make reference to User Manual, or ask for online technical support. Frequently Asked Questions (1) UC100 call priority (from high to low) a.
