UC100-1V1S1O VoIP Gateway

User Manual V1.0

User Manual V2.1

Shenzhen Dinstar Co., Ltd.

Address: 9

Floor, Guoxing Building, Changxing Road, Nanshan District, Shenzhen, China

Postal Code: 518052

Telephone: +86 755 61919966

Fax: +86 755 2645 6659

Emails: sales@dinstar.com, support@dinstar.com

Website:

www.dinstar.com

UC100-1V1S1O User Manual

Table of Contents

Need help?

Do you have a question about the UC100-1V1S1O and is the answer not in the manual?

Questions and answers

Summary of Contents for Dinstar UC100-1V1S1O

Page 1 UC100-1V1S1O VoIP Gateway User Manual V1.0 User Manual V2.1 Shenzhen Dinstar Co., Ltd. Address: 9 Floor, Guoxing Building, Changxing Road, Nanshan District, Shenzhen, China Postal Code: 518052 Telephone: +86 755 61919966 Fax: +86 755 2645 6659 Emails: sales@dinstar.com, support@dinstar.com Website: www.dinstar.com...
Page 2 Universal V1.0 (2016/09/026) 1.53.2.35 Gateway User Manual V1.0 Conventions Gateway or device mentioned in this document refers to the UC100-1T1S1O gateway. Those words in blue are the contents that users need to pay attention to. UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 3: Table Of Contents
2.4.4 Log In Web Interface ...........................9 3 Basic Operation ..........................10 3.1 Methods to Number Dialing ........................10 3.2 Call Holding ............................... 10 3.3 Call Waiting ............................... 10 3.4 Call Transfer ............................... 10 3.4.1 Blind Transfer ............................ 10 UC100-1T1S1O User Manual Copyright©2011-2016 Dinstar...
Page 4 5.3.5 Service Log ............................27 5.3.6 Config Changes Log .......................... 27 5.3.7 Backup/Restore/Upgrade ........................28 5.3.8 GSM Tools ............................29 5.3.9 Voice ..............................29 5.3.10 Command Line ..........................30 5.3.11 Diagnostics ............................30 5.3.12 Cloud Server ............................ 31 UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 5 5.8 Call Control ..............................74 5.8.1 Setting ............................... 75 5.8.2 Route Group ............................76 5.8.3 Route ..............................77 5.8.4 Feature Code ............................. 79 5.8.5 IVR ..............................80 5.8.6 SMS Route ............................81 5.8.7 SMS ..............................82 UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 6 Contents 5.8.8 USSD ..............................83 5.8.9 Diagnostics ............................84 6 Glossary............................85 UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 7: Product Introduction
Besides, the gateway has built-in WiFi and high-speed data handling capacity, allowing users to enjoy high-speed internet surfing through WiFi or LAN ports. UC100-1V1S1O is ideally suitable for personal use. Meanwhile, it is perfect for small and micro enterprises, offering high-speed internet access, good voice service and message service.

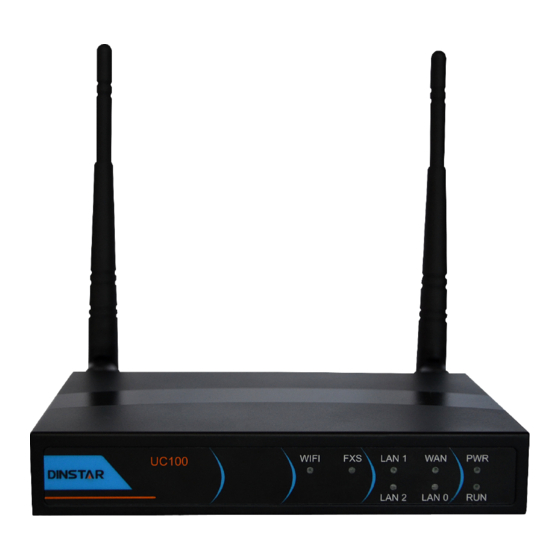

Page 8: Product Appearance
FXS In-use Indicator The FXS port is in off-hook status. The FXS port is faulty Slow port initialized Flashing successfully and is in idle status. FXO In-use Indicator The FXO port is currently occupied by a call. UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 9: Features & Functions
Network Port：1 WAN Port & 3 LAN Ports（10/100 Base-T RJ45）   WiFi：2.4Ghz 802.11n 1.5.3 Voice Capabilities  VoIP Protocols: SIP over UDP/TCP/TLS, SDP, RTP/SRTP Codecs: G.711a/μ law, G.723.1, G.729A/B  Silence Suppression  Comfort Noise Generator(CNG)  UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 10: Fxs
Caller/Called Number Manipulation  Routing Based on Time Period Routing Based on Caller/Called Number Prefix  Routing Based on Source Trunks  Dial Rules  Failover Routing   FXO Impedance Auto Match  IVR Customization UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 11: Supplementary Services
 Configuratuin Restore & Backup Multiple Languages  Firmware Upgrade: support HTTP/HTTPS/TFTP/FTP  Auto Provision  CDR Query and Export  Syslog Query and Export  Network Tools: Ping,Traceroute and Nslookup  Network Capture  UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 12: Quick Installation
 card. 2.2 Installation Steps Connect WiFi antennas to the left and right side of the gateway, and then connect the GSM  antenna to the back panel of the gateway. LTE Antenna WiFi Antenna UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 13: Network Connection
Network Connection Diagram under Bridge Mode Under the Bridge mode, the IP address of WAN port is the same with that of LAN port. Generally, when the gateway works under the bridge mode, the IP address of the gateway has UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 14: Connect Gateway To Network
Connect power source to the gateway, and then use a laptop to search the SSID of the gateway. The default SSID is domain_the last six characters of the Mac address, for example, if the mac address is F8-A0-3D-59-09-A3, the default SSID is domain_5909a3. UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 15: Preparations For Login
It is suggested that you should modify the username and password for security consideration. Figure 2-3 Login GUI of UC100-1G1S1O Both the default username and password are admin. Click Login to enter into the web interface. UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 16: Basic Operation
3.4 Call Transfer 3.4.1 Blind Transfer Blind transfer is a call transfer in which the transferring party connects the call to a third party without notifying the third party. UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 17: Attended Transfer
A will continue to hear a waiting tone. If it’s B that hangs up the phone at this moment, C and A go into conversation. If it’s C that hangs up the phone, B and A go into conversation. UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 18: Function Of Flash-Hook
Dial *1 to trigger blind transfer, for example: Dial *18000, and you can blind transfer to the extension number 8000 Dial *2 to trigger attended transfer, for example: Dial *28000#, and you can attended transfer to the extension number 8000 UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 19: Send Or Receive Fax
Under the T.38 mode, analog fax signal is converted into digital signal and fax signal tone is restored according to the signal of peer device. Under the T.38 mode, fax traffic is carried in T.38 packages. UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 20: Function Of Rst Button
6 seconds, the IP address, username and password of the device will be restored to factory defaults, and meanwhile the access ports of Http, Https, Telnet and SSH are restored to the default settings. Figure 3-1 Default settings of Http, Https, Telnet and SSH UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 21: Query Ip Address And Restore Default Setting
On the Web interface, click System  Backup/Restore/Upgrade and then select the parts (system, network or service) that need to be restored to default settings. Click Reset and then restart the device, and the selected parts will be restored to default settings. Figure 3-2 Reset to Defaults UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 22: Configuration Wizard
SIP trunk will be selected. For incoming calls, if inbound route cannot be matched, then the registered FXS/FXO port will be selected. Generally, local extension number is taken as first prioriy for call routing selection, followed by DID, route and then registered port. UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 23: Other Sip Clients Registered To Uc100
Add Inbound and Outbound Routes 4.1.4 UC100 Serving as VPN Client Enable VPN Client on 'Network -> SIP' Interface Configure Information of VPN Server on 'Network -> SIP' Interface Configure Information of UC100 on VPN Server UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 24: Configurations On Web Interface
Click Apply to enter into the page to save the changes; Changes click Revert to return to original configuration. Detailed The detailed configuration interface or display interface Interface Auto Refresh The button can be enabled or disabled. If it is enabled, the UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 25: Status
Log in the Web interface of UC100-1G1S1O, click Status  Overview, and the following interface will be displayed. On the interface, divice model, firmware version as well as information about performance, WAN network, LTE network, LAN network, WiFi and DHCP server are shown. Figure 5-2 Overview UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 26: Sip
Profile The profile that is used by the SIP trunk Profile The profile that is used by the SIP extension SIP Extension SIP extension is registered or not. Status There are two statuses: Registered. Unregistered UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 27: Pstn
There are two channel states: OK and Not register There are two SIP register statuses: Registered and SIP Register Status Unregistered Signal The signal strength of GSM Talking State There are two talking states: Idle and Busy UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 28: Dhcp Client List
CDRs through clicking the Empty or Export button. The maximum number of CDRs that can be saved is 5000. CDRs cannot be saved on the Status  CDRs interface unless the CDRs function has been enabled on the System  Setting interface. UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 29: Service
Figure 5-8 Service Status 5.3 System Configurations for hostname, timezone, NTP, login username & password, provision, operation log, service log, upgrade/backup/restore, GSM tools, IVR upload, cloud server and device reboot can be carried out in the System section. UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 30: Setting
Status  CDRs interface. If it is disabled, CDRs will not be saved Service Log Level There are eight levels, including Debug, Info, Notify, Warning, Error, UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 31: User Manager
As for how to configure UC100-1G1S1O and http/ftp/tftp server for Provision, please make reference to the instruction guide of Provision. Select the checkbox on the right of Enable, and you will see the following interface: UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 32 The URL of the http/ftp/tftp server: For example: ftp://172.16.77.200/home tftp://172.16.77.200/provision.xml http://test.domain.com/test Username The login username of the http/ftp/tftp server Password The login password of the http/ftp/tftp server Note: Proxy Address, Proxy Username and Proxy Password are optional to be configured. UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 33: Operation Log
Log interface. Those logs are used for analyzing where a problem has occurred on the gateway. Figure 5-14 Service Log 5.3.6 Config Changes Log On the System Config Changes Log interface, the configurations changed by administrator on the Web of the gateway are recorded. UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 34: Backup/Restore/Upgrade
System, Network and Service, and then click Download Select any of the checkboxes on the left of System, Network and Service, and then click Reset, and configurations related to the selected part will be Reset restored to factory defaults. UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 35: Gsm Tools
5 Configurations on Web Interface Choose a backup file, and then click Restore. Restore Choose a file to be upgraded (which is provided by Shenzhen Dinstar Co., Upgrade Ltd.), and then click Upgrade. 5.3.8 GSM Tools On the System  GSM Tools interface, you can modify the IMEI（International Mobile...
Page 36: Command Line
If the progress bar of diagnostics is green, it means the module that is diagnosed works well; if the progress bar is red, it means the module that is diagnosed is faulty. UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 37: Cloud Server
Figure 5-22 Cloud Server 5.3.13 Reboot On the System  Reboot interface, you can click Perform Reboot to reboot the UC100-1G1S1O gateway. After the device is rebooted, those configurations that have been saved will remain unchanged. UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 38: Network
UC100-1G1S1O is regarded as a DHCP client, which sends a broadcast request and looks for a DHCP server to answer. Then the DHCP server automatically assigns an IP address to the UC100-1G1S1O from a defined range of numbers. UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 39 Figure 5-24 Default IP Address under Route Mode Figure 5-25 Set WAN IP as DHCP IP Note: When WAN IP is set as DHCP IP, please ensure that there is DHCP server working normally in the network. UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 40 If you choose PPPoE, you need to fill in to fill in the following information: Username: the account name of PPPoE  Password: the password of PPPoE  Server Name: the name of the server where PPPoE is placed  UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 41: Access Control
The access ports of Web, Telnet and SSH, as well as relevant on-off controls, can be configured on the Network  Access Control interface. Web supports http and https, while SSH supports OAuth 2.0 protocol. Figure 5-28 Access Control UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 42: Firewall
5. Click the Save button to save the configuration. Figure 5-29 Firewall Note: : Edit information for the corresponding filter rule. : Delete the corresponding filter rule. /*: Information of Source or Destination is not completely filled in. UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 43: Dhcp Server
If there is a need, you can choose to enable the built-in DHCP server of UC100-1G1S1O to assign IP addresses to PC or other clients that are in the same local-area network with UC100. Under this condition, the UC100-1G1S1O gateway works like a router. UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 44: Port Mapping
When the UC100-1G1S1O works under the route mode, port mapping allows a client in the wide-area network to visit a client in the local-area network. Configuration Procedures: 1. Click Network  Port Mapping, and the following interface will be shown. UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 45: Dmz Setting
When the UC100-1G1S1O gateway works under the route mode and the DMZ service is enabled, the clients in the wide-area network are allowed to have direct access to the clients in the DMZ (demilitarized zone). UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 46: Diagnostics
1. Enter the IP address or domain name of a network, a website or a device in the input box of Ping, and then click Ping. 2. If related messages are received, it means the network works normally; otherwise, the network is not connected or is connected faultily. UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 47: Ddns
5.4.8 DDNS If DDNS（Dynamic Domain Name Server）service is enabled , when the IP address bound to a domain name changes, the new IP address will be sent to the DDNS, and thus user can visit UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 48 [DOMAIN],[IP],[USERNAME]and [PASSWORD]. For example, if the service provider offers the following update-url： http://bob:password@dynupdate.no-ip.com/nic/update?hostname= mytest.testdomain.com&myip=172.16.80.113 You need to turn it into: UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 49: Static Route
On the Network  Static Route interface, you can configure static routes for the network. Figure 5-38 Create New Static Route Table 5-10 Explanation of Parameters for Static Route Name The name of the static route Target IP The destination IP address of the static route UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 50: Upnp Client
UC100-1G1S1O supports the following VPN protocols: Layer 2 Tunneling Protocol (L2TP) is a protocol used to package data of PPP link layer and transmit the data between two sites over the Internet through a tunnel. UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 51 The IP address of the PPTP server that assigns account to PPTP client Username The username of the account assigned by PPTP server to PPTP client Password The password of the account assigned by PPTP server to PPTP client UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 52 The username of the account assigned by L2TP server to L2TP client Password The password of the account assigned by L2TP server to L2TP client OpenVPN：Allow a single point of VPN to use certificates authenticate itself. UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 53: Hosts
/domain name. And the mapping relationship allows quick and convenient access to the host. Figure 5-43 Enable Hosts File 5.5 Profile The Profile menu includes the following sub-menus: SIP, FXS/FXO, Codec, Number, Time, Maniipulation and Dalplan. UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 54: Sip
Multiple SIP profiles can be configured for one UC100-1G1S1O device, so you can choose different SIP profiles according to different needs. Figure 5-44 Configure SIP Profile Table 5-13 Explanation of Parameters for SIP Profile Name The name of the SIP profile UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 55 If it is a network segment, the format is 172.16.0.0/16 or 172.16.0.0/255.255.0.0, which Inbound Source Filter means calls from the network segment of 172.16 is allowed to come in. 0.0.0.0 means calls of any source is allowed to come in UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 56: Fxs/Fxo
FXO port, including tone standard, dial timeout, ring timeout, hook-flash detection, DTMF parameters, CID-related parameters, impedance, dialplan and so on. Figure 5-45 FXS/FXO Profile Click , and corresponding configuration interface will pop up. Figure 5-46 Configure FXS Parameters UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 57 When the time of dialing a digit exceeds this value, the system will think the dialing has completed; Default value is 4 seconds The timeout value for dialing the first telephone number after Dial Timeout (s) off-hook; Default value is 10 seconds UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 58 If it is enabled, the CID will be shown after ringing; otherwise, CID Ring(ms) will be displayed before ringing Delay Timeout After The maximum interval between ringing and displaying of CID Ring (ms) Impedance （SLIC） The impedance matched with analog phones UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 59 If this parameter is on, signal of flash-hook is sent via SIP INFO SIP INFO The rules for dialing. The UC100-1G1S1O device supports regular Dialplan expression. Please make reference to Profile  Dianplan section. Figure 5-47 Configure FXO Parameters UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 60 Detect after ring: the CID will be shown after ringing; otherwise, CID will be displayed before ringing Off: the CID will not be shown DTMF Detect The timeout value to detect CID (in DTMF format) Timeout(s) UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 61: Codec
Figure 5-48 Add or Delect Codec Profile : Edit codec profile. : Delete the corresponding codec profile or a codec mode. : Create a new codec profile. UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 62: Number
Figure 5-49 Number Profile : Edit number profile. : Delete the corresponding number profile Click , and you will see the following interface: Figure 5-50 Create Number Profile UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 63 Mark any digit, equal to [0-9 ] Mark any character that is not a digit, equal to [^0-9 ] Mark any blank character such as a space or a tab. Mark any character that is not a blank character UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 64: Time
Configure the starting date and ending date of a period Date Period : Add a date period : Delete a date period Weekdate Choose a weekdate Time Period Choose the starting time and ending time of a day UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 65: Manipulation
If the checkbox on the right of Caller is selected, it means the caller number will be manipulated; if the checkbox on the right of Called is selected, it means the called number will be manipulated. UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 66: Dialplan
Matches any one character except those enclosed in [ ]. For example, [^9] matches any character except 9. Matches any single character except the newline character. For example, 3.4 matches 314, 324, 334, 344. Indicates there is zero or one of the preceding element. For UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 67 Matches 0 or 1 times of the preceding element Examples of DigitMap Syntax Matches the phone numbers with stating digits as (13 | 15 | 18)xxxxxxxxx 13, 15 or 18 and the left nine digits as any of 0 to 9 UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 68: Extension
5.6 Extension 5.6.1 On the Extension  SIP interface, you can configure the SIP accounts registered in the UC100-1G1S1O by SIP clients (hereby UC100-1G1S1O is regarded as a SIP server). Figure 5-54 Configure SIP Extension UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 69: Fxs
If it is enabled, this SIP extension is registered to UC100-1G1S1O; Status Otherwise the SIP extension is not registered 5.6.2 On the Extension  FXS interface, you can configure the parameters of the FXS extension. UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 71 The working mode of the FXS port, including Voice and POS FXS Profile The FXS profile that is selected for this FXS extension If it is on, this FXS extension can be used, otherwise, the FXS Status extension is unavailable. UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 72: Ring Group
Same with Ring Group Number; it is optional to fill in Ring Time The duration of ring when there is a coming call. Range: 5s to 60s （5-60s） Note: If ring group function has been set, the call forwarding function is unavailable. UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 73: Trunk
If outbound proxy is used, enter the listening port of the proxy server Transport Transport protocol: TCP or UDP Register If it is on, the SIP trunk will send register request to the peer device UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 74: Fxo
Different from the FXO ports of other gateways, the FXO port of UC100-1G1S1O only allows one-time dialing, which means called numbers needs to be dialed directly for calls that go out from the FXO port. UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 75 Table 5-24 Explanation of Parameters for FXO Trunk Extension The extension account of the FXO port, which is used to register Autodial Number The autodial number of the FXO port when there are incoming calls UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 76 The FXS profile that is selected for this FXS extension If it is on, this FXO trunk can be used, otherwise, the FXO trunk Status is unavailable. FXO Automatch Impedance： Click the Detection button, and the UC100-1G1S1O gateway will automatically detect the most-matched impedance. UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 77: Gsm
UC100-1G1S1O gateway can transmit voice or SMS from IP network to mobile network, and can convert voice or SMS from mobile network/fixed network into IP packages and then transmit those packages to IP network through Erthernet port. Figure 5-60 Configure GSM Trunk UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 78 The username of this GSM trunk, which is used during register Auth Username authentication The password of this GSM trunk, which is used during register Password authentication From Header Username Choose the registered username or the true caller ID for the UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 79 Input Gain The receiving gain of the GSM port Output Gain The sending gain of the GSM port If it is on, this GSM trunk can be used, otherwise, the FXO Status trunk is unavailable UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 80: Call Control
5 Configurations on Web Interface 5.8 Call Control This section is to configure routes or route groups for incoming and outgoing calls through UC100-1G1S1O, as well as IVR, SMS, USSD and so on. UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 82: Route Group
On the Call Control Route Group interface, you can group SIP trunks, SIP extensions, FXS extension and FXO trunk together according to your needs and set strategy for choosing which trunk or extension as the destination route under a route group. UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 83: Route
The strategies for choosing which route under the route group as the destination route, including Sequence (Ascending), Sequence (Cyclic Ascending), Simultaneous and Random 5.8.3 Route On the Call Control  Route interface, you can configure routes for incoming calls and outgoing calls. UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 84 Profile  Number section.The default value is ‘Off’ Note: it cannot be simultaneously used with the following parameters of ‘caller number prefix’ and ‘called number prefix’ Caller Number Prefix The prefix of caller number; it supports regular expression UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 85: Feature Code
UC100-1G1S1O provides convenient telephone functions. Connect a telephone to the FXS port and dial a specific feature code, and you can query conrresponding information. The following is the corresponding function of each feature code: Figure 5-64 Feature Code UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 86: Ivr
When the the playing of the IVR times out, and user does not press any telephone key, the IVR will choose the destination of ‘timeout’. When the destination is a trunk, user does not need to pre-configure the UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 87: Sms Route
Destination The destination of the SMS route. It can be a trunk or an extension. The prefix of the SMS content. It is generally ‘none’, which means there Prefix is no prefix to be matched. UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 88: Sms
All SMS received by UC100 are displayed on the Receive List. Read Message Click on the Receive List to read SMS contents. Reply Message Click , and then enter SMS contents in the box on the left. Click Send in the last. UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 89 Service provider feedbacks a service menu to user according to this USSD code. Encode Supports auto, 7-bit and UCS2; 7-bit is used to send original ASCII, while UCS2 is used to send any languages USSD Message The Content of the USSD message UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 90 3. In order to locate faluts more quickly, you sometimes need to enter into the System Service Log interface, click export, and then send this exported file and the tracing file to technical support, Figure 5-69 Call Tracing for Diagnostics UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 91 Local Area Network L2TP Layer 2 Tunneling Protocol PPTP Point-to-Point Tunneling Protocol MAC Address Media Access Control Adress Network Address Translation Ping Packet Internet Grope Session Initiation Protocol Transmission Control Protocol User Datagram Protocol Real Time Protocol UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
Page 92 Point-to-point Protocol over Ethernet Quality of Service UPnP Universial Plug and Play VLAN Virtual Local Area Network Network Time Protocol STUN Simple Traversal of UDP over NAT PSTN Public Switched Telephone Network WLAN Wireless Local Area Network UC100-1V1S1O User Manual Copyright©2011-2016 Dinstar...
