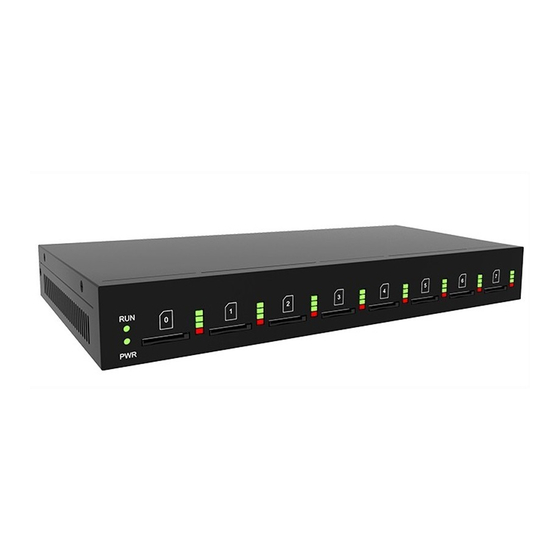

Dinstar UC2000-VE User Manual

Gsm/cdma/wcdma voip gateway
Hide thumbs Also See for UC2000-VE:
Table of Contents

Advertisement

Quick Links

Download this manual
UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway
Shenzhen Dinstar Co., Ltd.
Address: 9
th
Floor, Guoxing Building, Changxing Road, Nanshan District,
Shenzhen, China
Postal Code: 518052
Telephone: +86 755 61919966
Fax: +86 755 2645 6659
Emails: sales@dinstar.com, support@dinstar.com
Website: www.dinstar.com

User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UC2000-VE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dinstar UC2000-VE

Summary of Contents for Dinstar UC2000-VE

  • Page 1: User Manual

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual Shenzhen Dinstar Co., Ltd. Address: 9 Floor, Guoxing Building, Changxing Road, Nanshan District, Shenzhen, China Postal Code: 518052 Telephone: +86 755 61919966 Fax: +86 755 2645 6659 Emails: sales@dinstar.com, support@dinstar.com Website: www.dinstar.com...
  • Page 2 UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual Revision Records Document Firmware Version Author Date Description Version V1.0 02.22/23.08.01 Technical Support 2013-07 First release V1.1 02.22/23.10.01 Technical Support 2014-05 Support WCDMA Gateway Match with the firmware V2.2 02/04. 23.12.05 Technical Support 2017-02 version 02/04.23.12.01 or...

  • Page 3: Table Of Contents

    1.1 Overview ........................... 7 1.2 Scenario of Application ....................7 1.3 Product Appearance ......................8 1.3.1 Product Appearance of UC2000-VE ..............8 1.3.2 Product Appearance of UC2000-VF ..............9 1.3.3 Product appearance of UC2000-VG ............... 11 1.4 Functions and Features ....................12 1.4.1 Protocols ......................
  • Page 4 UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual 4.1 Access UC2000-VE unit ....................19 4.2 Parameters Configuration ..................... 20 4.3 System Information ......................21 4.3.1 System Iinformation ................... 21 4.3.2 Mobile Information ..................... 22 4.3.3 SIP Information ....................24 4.4 Statistics .......................... 25 4.4.1 TCP/UDP ......................
  • Page 5 UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual 4.7.7 Operator Configuration ..................41 4.7.8 BCCH........................41 4.7.9 Call Forwarding ....................43 4.7.10 Call Waiting ...................... 44 4.7.11 Cloud Server ....................45 4.8 SMS and USSD ......................47 4.8.1 SMS Send Overview ..................47 4.8.2 SMS Send Limit Settings ..................
  • Page 6 UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual 4.10.3 Phone Number Learning ................80 4.10.4 Balance Check ....................83 4.10.5 Billing setting ....................88 4.10.6 Call limit ......................89 4.10.7 Exception Event Handling ................90 4.10.8 Auto generation....................94 4.11 Diagnostic ........................96 4.11.1 Syslog ........................
  • Page 7 UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual 5.1 Login UC2000 & General Knowledge of UC2000 Command ....... 109 5.2. Commands in "ROS#" Mode ..................110 5.2.1 Summarize of commands in "ROS#" mode ............110 5.2.2 General Purpose Commands in "ROS#" mode ........... 110 ...

  • Page 8: Product Description

    PPLICATION With the development of users and telecom service, mobile network and fixed network integration will be steadily increasing. UC2000-VE/F/G provides high quality VoIP service which perfectly meets the requirement. This is a scenario shown as figure 1-2-1 Figure 1-2-1 Network scenario _______________________________________________________________________________ Shenzhen Dinstar Co., Ltd.

  • Page 9: Product Appearance

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual 1.3 P RODUCT PPEARANCE 1.3.1 Product Appearance of UC2000-VE The appearance of UC2000-VE shows as follow Figure 1-3-1 Front view of UC2000-VE-8G/8C Table 1-3-1 Description of Front view Index Indicators Description On: Starting Off: Abnormal Blinking every 0.5s: Normal status...

  • Page 10: Product Appearance Of Uc2000-Vf

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual Table 1-3-2 Description of Rear view Index Interface Description Power Connector Power connector of DC power. Input: DC12V Antenna Connector Mark as digits 0 to 7 Network FE0 and FE1, its default IP address 192.168.11.1...
  • Page 11 UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual Indicates SIM is offline, SIM status may include SIM card not inserted, SIM card not SIM Card Status available, SIM card unregistered Indicator SIM card is in use Blinking SIM card is registered but in IDLE...

  • Page 12: Product Appearance Of Uc2000-Vg

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual Device is booting up Device is not booting up 1.3.3 Product appearance of UC2000-VG Front view Indicators Name Status Description Indicates SIM is offline, SIM status may include SIM card not inserted, SIM card not...

  • Page 13: Functions And Features

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual Console RS232 standard, band rate 115200bps Reset button to restore default IP and password or restore factory setting.  Restore IP and Password: hold RST button 3~5 seconds, RUN LED being ON during this time...

  • Page 14: Industrial Standards Supported

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual CNG: Comfort Noise Generation   Local/Remote SIM card work mode  Adjustable gain of port  DTMF adjustment  Balance Check  Lock/unlock SIM/UIM  Mobile number display rejection  Sending/receiving SMS ...

  • Page 15: General Hardware Specification

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual 1.4.4 General Hardware Specification  Power Supply UC2000-VE: Input: 100-240V, 50-60Hz Output: DC12V 4.0A UC2000-VF/G: Input: 100-240VAC, 50-60Hz; Temperature(Operation): 0 ℃ ~ 45 ℃  (Storage): -20 ℃ ~80 ℃ Operation Humidity: 10%-90% No Condensation ...

  • Page 16: Quick Installation

    Switch/Router 192.168.11.1 Note: UC2000-VE/F/G has two Ethernet ports (namely FE0 and FE1). The device can work normally when either of the ports is connected to PC. The IP address of device must be at the same network segment with that of PC.

  • Page 17: Basic Operation

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual Basic Operation 3.1 F EATURE ODES Users can do some basic system setting via dialing feature codes through a telephone. The device has a built-in IVR navigator for local maintenance. In each step, if you hear an IVR message of “setting succeeds”, it means you have finished this step...

  • Page 18: Restore Default Ip And Password

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual phone, then you will hear ‘setting succeeds’, then the factory setting of the gateway will be restored. 3.2.3 Restore default IP and password Press RST button for about 3 seconds, then the device will be rebooted and the IP address, username and password will be restored to factory default.
  • Page 19 UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual After finishing the above configurations, click the Open button to enter the maintenance interface of the console port. The username and password are the same with those of the web interface of device. Commands for configuring the IP address of the device : (In the following example, IP address of device needs to be configured as 172.30.66.100,...

  • Page 20: Web Interface Configuration

    UC2000-VF-32W(32 Channels WCDMA Gateway) 4.1 A UC2000-VE CCESS UNIT Enter IP address of UC2000-VE in IE/Google Chrome. The default IP of LAN port is 192.168.11.1. and the GUI shows as below: Figure 4-1-1 WEB log interface _______________________________________________________________________________ Shenzhen Dinstar Co., Ltd.

  • Page 21: Parameters Configuration

    “admin/admin”. It is strongly recommended, change the default password to a new password for system security. 4.2 P ARAMETERS ONFIGURATION UC2000-VE WEB configuration interface consists of the navigation tree and the detail configuration interfaces. Figure 4-2-1 WEB introduce _______________________________________________________________________________ Shenzhen Dinstar Co., Ltd.

  • Page 22: System Information

    Description MAC Address Displays the current MAC of the gateway, for example: 00-1F-D6-1B-3D-02 Network Mode UC2000-VE works as bridge mode by default Network Current IP address and subnet mask of gateway DNS Server Displays DNS server IP address in the same network with the gateway A unique device ID which assigned in factory.

  • Page 23: Mobile Information

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual status status: Registered Not Registered Need Authentication It indicates device’s license status. Contact with support when it display as License Invalid System Up Time Shows the time period of the device running. For example,:1h: 20m, 24s...
  • Page 24 UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual Table 4.3-2 Mobile Information Parameters Description Port Number of GSM/CDMA ports. Type Indicates the current type of network. Such as CDMA or GSM International Mobile Subscriber Identity, it is the uniquely identifies of IMSI...

  • Page 25: Sip Information

    Table 4-3-3 SIP information Parameters Description Port The number of SIP channels, UC2000-VE-8G/C has 8 SIP channels SIP registration account which are provided by the Softswitch and SIP User ID SIP server Shows the registration status of VoIP channel, including registered Register Status and unregistered.

  • Page 26: Statistics

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual 4.4 S TATISTICS 4.4.1 TCP/UDP Figure 4-4-1 TCP/UDP Statistics 4.4.2 RTP Figure 4-4-2 RTP Table 4-4-1 Description of RTP Statistics Parameters Description Port The port of RTP statistics Payload Type The voice code of this channel, Include G.723.1/PCMA/PCMU/ G.729AB...

  • Page 27: Sip Call History

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual 4.4.3 SIP Call History SIP Call History SIP Call History Parameters Description Port The port of Call statistics Incoming Received The amount of received incoming calls which coming from IP side Incoming The amount of incoming calls which have connected...

  • Page 28: Cdr Report

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual IP to GSM Call History Parameters Description Port Device GSM port Call Statistics the number of calls in this port Duration Statistics call total time Answered Statistics response times Call Failed Caused by SIP...

  • Page 29: Lock Bcch History

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual Parameters Description Port GSM port number Start Date/Answer Date start and end time of calls Direction IP to GSM: outbound calls from softswitch/IPPBX to mobile network GSM to IP: incoming calls from mobile network to IPPBX/ Softswitch...

  • Page 30: Current Call Status

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual It is record history of BCCH to help analysis SIM card register status. 4.4.7 Current call status On the Statistics  Current Call Status interface, status and detail of the current call are shown.
  • Page 31 UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual Table 4-5-1 Local network Parameters Description Obtain IP Address Enable the device obtain IP Address automatically or not. Default is Automatically enabling Use the Following Configure the "IP Address", "Subnet Mask" and "Default Gateway" by...

  • Page 32: Arp

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual 4.5.2 ARP The ARP function mainly used to query and add the map of IP and MAC. There are static or dynamic ARP entries. Like other routers, the gateway can automatically find the network device on the same segment.

  • Page 33: Security Center

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual Table 4-5-3 Description of VPN Parameter Parameters Description Server VPN Server IP or domain name(support PPTP only) Account VPN account which provide by server or VPN provider Password Password of VPN which provide by server or VPN provider...

  • Page 34: Mobile Configuration

    All: accept or reject all the above mentioned items. 4.7 M OBILE ONFIGURATION 4.7.1 Basic Configuration Basic Configuration SIM Mode Dinstar gateway support two types of SIM card installation, which is local and remote SIM management. _______________________________________________________________________________ Shenzhen Dinstar Co., Ltd.
  • Page 35 UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual Item Description Local To use local SIM card which install on gateway, this way is most common used by many of users SIM Box SIM Box is a small box which use for SIM card storage. It ideal for...
  • Page 36 UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual HR (Half Rate): the bit rate of the codec is 6.5 kbit/s. It requires half the bandwidth of Full Rate codec and network capacity for voice traffic is doubled, at the expense of audio quality. It is recommended to use this codec when the battery is low as it may consume up to 30% less energy.
  • Page 37 UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual Then click OK and start service, the gateway IP will be presented in device list of SMS box _______________________________________________________________________________ Shenzhen Dinstar Co., Ltd.

  • Page 38: Mobile Configuration

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual 4.7.2 Mobile Configuration Description of Mobile Configuration Parameter Description CLIR Calling Line Identification Restriction: If the CLIR function is enabled, the phone number of the caller will not be displayed on the called phone.

  • Page 39: Phone Number Config

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual 4.7.3 Phone Number Config On the Phone Number Config interface, you can write a phone number into a specific memory card and SIM Card, and thus the phone number can be called in case that this SIM card has been pulled out and inserted into another port.

  • Page 40: Imei

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual Select Port Selects the GSM/CDMA channel number 4.7.5 IMEI IMEI Modify: to change the IMEI code for specific port/ports IMEI Auto Set: set some rules to change the IMEI code with some predefinited conditions _______________________________________________________________________________ Shenzhen Dinstar Co., Ltd.

  • Page 41: Operator

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual 4.7.6 Operator Click Search button while there is SIM card in that port, after a while, you will see Operator codes list under Operator List dropbox. And then select correct operator code which match with the SIM card insert in the gateway.

  • Page 42: Operator Configuration

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual 4.7.7 Operator Configuration Operator configuration aim to set operator code for batch of SIMs. Inserted SIM cards will match with IMSI prefix and register SIM card to the code as per setting. 4.7.8 BCCH BCCH (Broadcast Control Channel): BCCH is a logical broadcast channel used by the base station in a GSM/WCDMA network to send information about the identity of the network.
  • Page 43 UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual Step 3. Click the drag-down box on the right of BCCH Mode, and select a mode. Default: All frequencies will be automatically matched with the gateway. Fixed: You are required to set three fixed frequencies, and the frequencies will be matched with the gateway permanently.

  • Page 44: Call Forwarding

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual Advanced: you are required to set some conditions, including minimum signal strength, minimum answer-seizure ratio(ASR), number of calls and number of failed calls. Note: When the actual number of failed calls reaches the set number, frequencies will be switched or when the actual answer-seizure ratio is less than the minimum answer-seizure ratio, frequencies will be switched.

  • Page 45: Call Waiting

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual Call forwarding is the same as mobile phone which to activate/deactivate supplementary service of SIM card. For more details of these services, please contact to local providers. Parameter Explanation Call Unconditional Calls will be forwarded unconditionally...

  • Page 46: Cloud Server

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual Call waiting is the same as mobile phone which to activate/deactivate supplementary service of SIM card. For more details of these services, please contact to local providers. Notes: Call waiting is only take effective while “Do Not Answer GSM Incoming Call for Hotline”...
  • Page 47 UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual Domain server Primary Server Port The port of the primary Cloud server Secondary Server The domain name of IP address of the secondary Cloud Domain server. It can be null. Secondary Server Port The port of the secondary Cloud server. It can be null.

  • Page 48: Sms And Ussd

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual Device S/N is the device ID on gateway, find it on the page system information, as below: 4.8 SMS USSD 4.8.1 SMS Send Overview On the SMS Send Overview interface, you can see the number of SMS messages that have been sent via the ports of the gateway, as well as the daily limit and monthly limit of SMS messages that can be sent through the ports of the gateway.

  • Page 49: Sms Outbox

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual Parameter Explanation Port The port through which SMS messages are sent The number(s) where the SMS message will be sent. UCS2 UCS2: Support English and Chinese GSM 7bit: Support English only Message The content of the message SMS send report 4.8.4 SMS Outbox...

  • Page 50: Sms Inbox

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual 4.8.5 SMS Inbox On the SMS Inbox interface, you can see the detailed information of each SMS message that has been received, and can export the messages. 4.8.6 USSD USSD (Unstructured Supplementary Service Data): is a service which is provided by a telecom operator and allows GSM/WCDMA mobile phones to interact with the telecom operator's computers.
  • Page 51 To:13899998888 Encoding:7Bit Message:Hola, this is test SMS from ivy@gmail.com 2) Gmail server forward email to support@dinstar.com 3) GSM gateway check the inbox of support@dinstar.com, find the email subject with ‘Test SMS’ 4) GSM gateway send SMS to mobile 13899998888 _______________________________________________________________________________...
  • Page 52 UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual Notice: Don’t set signature at the end of email and make sure the received email is plain text format. How to configure Email to SMS in GSM gateway 1) Open page SMS and USSD>>>>>>>Email.
  • Page 53 UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual 2) Email must use fix format: Subject: this subject MUST be the same as email subject. Example, when you send email with subject “Test SMS”, the Subject s field in GSM gateway must be “Test SMS”...
  • Page 54 UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual Received email in the inbox of support@dinstar.com should be Note: 1) Character set. The UC2000 support character set ASCII and UTF-8 only. 2) Encoding. The email encoding support 8Bit, Base64 and Quoted-Printable only. If the email senders use other encoding, like 7Bit, it will not support.

  • Page 55: Call Configuration

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual SMTP Domain: Configure the SMTP server domain here, different e-mail address server have different server addresses, please confirm this with your e-mail provider or search from Internet. SMTP Port: configure the SMTP port, usually 25, please also confirm this with your e-mail address provider.
  • Page 56 UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual SIP Server Address and Port Used for configure SIP server address and port, the address can be IP Address, also can be a domain name which can be resolved by DNS server Check NET Status Default is No.
  • Page 57 UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual I t is mostly used to SIP trunk interworking with SIP server so that the gateway able to deal with high performance concurrent calls. Use the same local SIP port and SIP User ID...
  • Page 58 UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual Default set yes, if you want the device can make a call without register, set No, Also enable the "Allow Call from IP to PSTN without Registration" and "Allow Call from PSTN to IP without Registration" function...
  • Page 59 UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual This field specifies retransmission timer for T1 timeout of SIP message, in milliseconds. Default specifies 4000. This field specifies retransmission timer for T2 timeout of SIP message, in milliseconds. Default specifies 5000. TMAX This field specifies maximum timeout value for SIP message. The SIP message will be dropped after TMAX.
  • Page 60 UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual Content-Length: 0 Keepalive Retry Count This field specifies retransmission times for OPTION message. Its value range from 1-10 times. Configuring Caller ID and 183 Mode From Mode when Caller ID Is Available Used to configure "From" Mode when Caller ID Is Available when call from GSM to...
  • Page 61 UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual 183 Mode Immediately: Gateway will send "183 RING" immediately to SIP Server while it receive “INVITE". In this situation, the called party possibly still not in ringing status. Alerted: Gateway will send "183 RING" after received exact ringing signal from GSM/CDMA network.
  • Page 62 UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual Via: SIP/2.0 pc33.atlanta.example.com;branch=z9hG4bKnashds12 Route: sips:p1.atlanta.example.com;lr Supported: timer Session-Expires: 4000;refresher=uac Max-Forwards: 70 To: Bob <sips:bob@biloxi.example.com>;tag=9as888nd From: Alice <sips:alice@atlanta.example.com>;tag=1928301774 Call-ID: a84b4c76e66710 CSeq: 314162 UPDATE Contact: <sips:alice@pc33.atlanta.example.com> Configuring GSM-SIP Mapping Code This part specifies response codes between GSM cause reason and SIP response code.

  • Page 63: Sip Trunk Configuration

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual Response Code switch This part specifies response codes of SIP between gateway and SIP server. Refer to table SIP Response, the SIP server possibly need some specific SIP response from the gateway. Example, SIP server need SIP response 180 Ringing instead of 183 Ringing, the configuration should be as below: 4.9.2 SIP Trunk Configuration...

  • Page 64: Sip Trunk Group

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual Keep alive Send OPTION to Softswitch/IPPBX to detect health status Example To add a remote IP of Softswitch, SIP trunk index is 31, SIP port number “5060” 4.9.3 SIP Trunk Group Figure 4-11-3 IP Trunk Group...

  • Page 65: Port Configuration

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual To add an IP group, set IP “10, 14, 17” to IP group 18 Figure 4-11-4 IP Trunk group modify 4.9.4 Port Configuration Figure 4-12-4 Port Configuration Table 4-12-3 Description of Port Configuration Parameters...

  • Page 66: Port Group Configuration

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual It is the account used for registration which provide by SIP server, SIP User ID equipment port's unique identifier The Authentication ID is used for authentication purposes. The SIP Authenticate ID user ID is usually the phone number you received from the service provider.

  • Page 67: Digitmap

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual 4.9.6 Digitmap Digit Map Syntax: 1. Supported objects Digit: A digit from "0" to "9". Timer: The symbol "T" matching a timer expiry. DTMF: A digit, a timer, or one of the symbols "A", "B", "C", "D", "#", or "*".
  • Page 68 UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual 2. Range [] One or more DTMF symbols enclosed between square brackets ("[" and "]"), but only one can be selected. 3. Range () One or more expressions enclosed between round brackets ("(" and ")"), but only one can be selected.

  • Page 69: Ip->Tel Routing

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual 2. [2-8] xxxxxx | 13xxxxxxxxx Means that first is "2","3","4","5","6","7" or "8", followed by 6 digits; or first is 13, followed by 9 digits. 3. (13 | 15 | 18)xxxxxxxxx Means that first is "13","15" or "18", followed by 8 digits.
  • Page 70 UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual Source: indicates call from which SIP server or SIP trunk Destination: indicates call to which port or port group Call Restriction: allow or forbid to call out Source Prefix: to match with prefix of caller number...

  • Page 71: Tel->Ip Routing

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual Remove prefix 991 of called number. Remove prefix 88 and then add 0 in front of called number 4.9.8 Tel->IP Routing Add a new incoming route rule, click Add button _______________________________________________________________________________ Shenzhen Dinstar Co., Ltd.
  • Page 72 UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual Click to set caller and called prefix Source: indicates call from which SIP server or SIP trunk Destination: indicates call to which port or port group Call Restriction: allow or forbid to call out...

  • Page 73: Service Parameter

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual 4.9.9 Service parameter To configure dialing mode parameters Do Not Answer GSM Incoming Call for Hotline When the gateway get incoming call from mobile network, the modular will answer the call then start to DTMF or route to destination hotline number. While this option enabled, the modular won’t answer the call but routing to destination hotline number...
  • Page 74 UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual But for two stage dialing, the SIP server must be dial the SIP channel account and then to generate DTMF to mobile network. Answer Delay In most instances, Most of CDMA operators don't offer answer signal. The gateway doesn’t response SIP 200 OK to SIP server in case of missing answer signal from...
  • Page 75 UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual address, found himself after what Type of NAT and NAT for a particular Channel is bound to a local Internet terminal Channel. This information is used for two host to set up UDP communication behind the same NAT router. The agreement defined by...

  • Page 76: Media Parameter

    Means the initial port when RTP voice stream transmit in the IP network, in general, using the factory default values. When there are several DINSTAR units are deployed and they are in the same network or behind the same NAT, user can try to change it to avoid NAT traversal issue;...

  • Page 77: Dbo Parameter

    Busy Tone: 480, 330, 620, 330, 500, 500, 0, 0 frequency: 480/620Hz, on: 500ms off: 500ms DTMF Parameter UC2000-VE/F/G support RFC2833 and SIGNAL two ways. DTMF INTERVAL range is 50 ~ 800ms, DTMF VOLUME can use the default Configuration System IVR While you make call to SIM card of GSM gateway, you will hear default IVR prompts or customized IVR.
  • Page 78 UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual Configure DBO parameter More parameter showing on the interface after enable DBO, the main interface as below: Parameter Description: _______________________________________________________________________________ Shenzhen Dinstar Co., Ltd.
  • Page 79 UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual Parameters Description Primary DBO server IP or domain for traffics Active DBO Server URL/IP Active DBO Server Port DBO service ports that dedicate by DBO server. There are 4 ports definite in the DBO server by default, 3479, 6479, 12479 and 24479, any one of this 4 ports will work with the DBO server.

  • Page 80: Human Behavior

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual DBO server after this option enable. Enable RTP encryption and forward by DBO Enable RTP Forwarding server. The RTP will forward by DBO server after this option enable. Enable Bandwidth Compressed Enable bandwidth saving function. This feature works after uploading proper license.

  • Page 81: Phone Number Learning

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual 4.10.3 Phone Number Learning If you want to learn the SIM card number and used for auto call. The GSM gateway provide 3 modes to learn SIM card number: USSD/SMS/Call. 1) USSD. Send USSD to carrier and get the response. For example, send *156#, get response: “Your number is: 8618344144906”.
  • Page 82 UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual 2) SMS. Send SMS to carrier and get the response. For example, send SMS “My Number” to 10086, the carrier reply SMS: “Your number is: 8618344144906”. So, configured the Dest Number to 10086, the Send Text to “My Number”, the Check SMS From Number to 10086, the Keywords to “Your number is:”, the gateway will take the number...
  • Page 83 UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual 3) Call. Call to carrier and get the response. For example, call 10086, after call connected, it will play IVR “welcome to use China Mobile, recharge, press 1; check balance, press 2; other services, press 3 ...” press 3, it will play IVR “check current package, press 1;...

  • Page 84: Balance Check

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual For make sure the configuration work, we can use the Matching Test. Input the “Your number is: 8618344144906” at Test SMS Text, press the Test, you will get the match result. 4.10.4 Balance Check On the Balance Check interface, you can check the balance of a SIM card.
  • Page 85 UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual 1) Check balance by USSD Send USSD to carrier and get the response. For example, send *101#, get response: “Your balance is 73.40$”. So configured the Keywords to “Your balance is”, the gateway will take the number 73.40.
  • Page 86 UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual 2) Check balance by SMS. Send SMS to carrier and get the response. For example, send SMS “My balance” to 10086, the carrier reply SMS: “Your balance is 73.40$”. So configured the Dest Number to 10086, the Send Text to “My balance”, the Check SMS From Number 10086, the Keywords to “Your balance is”, the gateway will take the number...
  • Page 87 UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual For make sure the configuration work, we can use the Matching Test. Input the “Your balance is 73.40$” at Test SMS Text, press the Test, you will get the match result. 3) Check balance by Call.
  • Page 88 UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual Call to carrier and get the response. For example, call 10086, after call connected, it will play IVR “welcome to use China Mobile, recharge, press 1; check phone number, press 2; other services, press 3 ...” press 3, it will play IVR “check current package, press 1;...

  • Page 89: Billing Setting

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual 4.10.5 Billing setting Billing setting mainly use to limit call time of SIM cards, see also call limit. Minimum Charging Time: set minimum charging time, some operator does not charge if the call is less than some seconds when call is connected, user can set that value here.

  • Page 90: Call Limit

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual 4.10.6 Call limit Single Call Credits: set single call credits, it defines the maximum credit every single call can take, 0 means no limit. If you set 2, it means every call can use 2 credits at most, and call will be disconnected if gets the limit.

  • Page 91: Exception Event Handling

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual 4.10.7 Exception Event Handling Call Event 1. Definitions For the purpose of the present document, the following terms and definitions apply: ACD: The Average Call Duration is a measurement in telecommunications that reflects an average length of telephone calls transmitted on telecommunication networks.
  • Page 92 UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual ASR = answered call/total attempts of calls. To calculate the ASR, the gateway checks the CDRs. Because the CDRs on the gateway is disabled by default, you need to enable the CDR before you apply the Low ASR handling.
  • Page 93 UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual Low Balance Than: define the low balance value threshold .To apply the Low Balance Handle, it is required to configure the Balance check properly; please refer to the FAQ of balance check for more details.
  • Page 94 UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual Counts of consecutive GSM Code: The counts of the error code consecutively. As the figure shows above, once the GSM error code 8 is detected, the gateway will blocked the gateway module. PDD Less Than(1-30): define the value of abnormal PDD. You can check PDD value under system information page.

  • Page 95: Auto Generation

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual 4.10.8 Auto generation Auto Generation mainly used to make calls and SMS between SIM cards which in same device, also you can make call or send SMS to other numbers. Why need Auto Generation?
  • Page 96 UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual SIM Card Number section. Call Out：We can set to call fixed numbers Import Numbers: Choose the file, then save the text file as .txt format. How to make the txt file? The length of each number up to 22 digits, use “,” separated, we can only input 600 digits...

  • Page 97: Diagnostic

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual 4.11 D IAGNOSTIC 4.11.1 Syslog Syslog is a standard for network device data logging. It allows separation of the software that generates messages from the system that stores them and the software that reports and analyzes them.

  • Page 98: Filelog

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual - SYS, system log - TIMER, system process - TASK, system task process - CFM, system process - NTP The Management Log is include following traces which defined in system by default - CLI, command line...

  • Page 99: Summary

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual 4.11.3 Summary Summary file is enabled by default. Just click download button in case of some of system error happened. 4.11.4 SIM card debug Enable trace while remote SIM card used in this device.

  • Page 100: Tracert Test

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual 4.11.6 Tracert Test You can check the routes of the tracert destination. 4.11.7 Network Capture Network capture is a very important diagnostic tool for maintenance. This section is describes how to enable network capture.
  • Page 101 UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual Getting start to PCM capture PCM capture is help to analysis voice stream between GSM/CDMA modular and DSP chipset. To enable PCM capture  Select ‘PCM only’ on Network Capture page  Click “Start’ to enable PCM capture ...
  • Page 102 UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual To enable syslog capture  Select Syslog special only on Network Capture page  Click “Start’ to enable syslog capture  Dialing out through gateway, start talking a short while then hangup the call.
  • Page 103 UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual  Dialing out through gateway, start talking a short while then hangup the call.  Click Stop to disable RTP capture  Save the capture to local computer The capture is named to ‘capture(x).pcap’, x is serial number of capture and will be added 1 in next time.

  • Page 104: Voice Loopback Test

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual Configurable capture options Getting start to custom capture This menu provides more options to capture specific packets as actually needs. 4.11.8 Voice Loopback Test Voice Loopback test should be done on call status. Each call can do one kind of test. After each test, please hang up and call again, refresh web interface and go on the other tests.
  • Page 105 UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual Voice stream patch on gateway: DSP TDM Test DSP TDM Test is the loopback of GSM side. VoIP <-----DSP<----- Modular<------ Mobile -----> ------> -------> To start DSP TDM Test:  Make a call test through gateway, the call can be initialed by IPPHONE. Keep the conversation after call establish ...

  • Page 106: Tools

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual conversation after call establish  Click DSP IP Test to start test  Check the voice on both sides. GSM side become silence and echo should be generated on IPPHONE side  Hang up 4.12...

  • Page 107: Management Parameter

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual You can restore this configuration in case the unit loses it for any reason or to clone a unit with the configuration of another unit. The configuration backup configurations are in txt format. Please note that you can use a backup file from an older firmware version and use it in a unit with a more recent firmware version.

  • Page 108: Email Account Setting

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual While devices deployed behind router/firewall. Users can’t access the device remotely. With the Remote Server, device can register to it and access web/telnet through Remote Server remotely. Register Remote Server account from web site server02.dmcld.com:3000 4.12.6 Email Account Setting...

  • Page 109: Access Control

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual 4.12.8 Access control You need to set a new password to control access level of web links. After set password, you can set which page is allow/disallow to access by default user. 4.12.9 Factory Reset Be careful do this operation, after restore factory setting, all the parameters will be changed to the factory default.

  • Page 110: Restart

    NOWLEDGE OF OMMAND This is a document for some customers who need more details of DINSTAR’s products with command lines. To make sure the system runs successfully, we suggest customers setting UC2000 by GUI. In this manual, some topics such as how to check the IP, signaling and call conversation are covered.

  • Page 111: Commands In "Ros#" Mode

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual 5.2. C "ROS#" M OMMANDS IN There is only a litter commans in "ROS>" mode. If you need more commands you must enter the "ROS#" mode. Input "enable" to enter "ROS#" mode if you have in the "ROS>" mode.

  • Page 112: Show Time (Show Clock)

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual Show Time (show clock) Show version (show version) Show sip Information (show sip config) _______________________________________________________________________________ Shenzhen Dinstar Co., Ltd.

  • Page 113: Show Memory Status (Show Memory Detail)

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual Show memory status (show memory detail) Show SIP port status (show sip all) Show Current calls (sh ecc call) _______________________________________________________________________________ Shenzhen Dinstar Co., Ltd.

  • Page 114: Show Rtp Session ( Sho Rtp Se)

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual Show RTP session ( sho rtp se) Show ASR/ACD statistics (show ecc state) 5.3 COMMANDS "C " M ONFIG 5.3.1 S " " UMMARIZE OF COMMANDS IN CONFIG MODE Input "^config" in the "ROS# " to enter "config" mode.
  • Page 115 UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual Input "?" to show the all commands and its information. _______________________________________________________________________________ Shenzhen Dinstar Co., Ltd.

  • Page 116: General Purpose Commands In "Config" Mode

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual 5.3.2 G "C " ENERAL URPOSE OMMANDS IN ONFIG MODE Set time (clock set) Save the configuration (save) Restart device (reset eia) Enable debug The command format is deb port + port number, to enable port 0 debug, as below: To enable all ports debug, with the command “deb port all”...

  • Page 117: Enable Sip Debug (Deb Sip Msg All)

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual Enable SIP debug (deb sip msg all) 5.4 H OW TO TRACE LOGS Create telnet session to gateway, the main steps as below: Welcome to Command Shell! Username:admin Password:***** ROS>en ROS# ROS#^config ROS(config)#deb sip msg all...

  • Page 118: How To Trace Modular Logs

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual ROS# ROS#^config ROS(config)#deb port all Debug All!!. //enable trace on all port ROS(config)# ROS(config)#deb port 0 Succ! Debug PortNo:0 // enable trace port 0 ROS(config)# ROS(config)#no deb port all ROS(config)# ROS(config)#ex ROS#^ada ROS(ada)#ADA CONNECTED ...,WELCOME!
  • Page 119 UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual ROS(ada)#ADA CONNECTED ...,WELCOME! ROS(ada)#cmd 53 19 // enable trace. means port range 0 to 0, means port range from 0 to 8; means enable modular trace ROS(ada)#cmd 53 19 disable modular trace _______________________________________________________________________________ Shenzhen Dinstar Co., Ltd.

  • Page 120: Glossary

    UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual Glossary GSM: Global System for Mobile Communications CDMA: Code Division Multiple Access FMC: Fixed Mobile Convergence SIP: Session Initiation Protocol MGCP: Media Gateway Control Protocol DTMF: Dual Tone Multi Frequency USSD: Unstructured Supplementary Service Data PSTN：Public Switched Telephone Network...
  • Page 121 UC2000-VE/F/G GSM/CDMA/WCDMA VoIP Gateway User Manual NAT: Network Address Translation RTP: Real-time Transport Protocol VoIP: Voice over IP _______________________________________________________________________________ Shenzhen Dinstar Co., Ltd.
  • Page 122 Warning: This  device  complies  with  Part  15  of  the  FCC  Rules.  Operation is subject to the following twoconditions: (1)  this device may not cause harmful interference, and (2)  this  device  must  acceptany  interference  received,  including  interference  that  may  cause  undesired  operation.changes  or  modifications  not  expressly  approved  by  the  party responsible  for compliancecould  void the user's authority to operate the equipment.    NOTE:  This  equipment  has  been  tested  and  found  to  comply ...
  • Page 123 different  from that to which the receiver is connected.  ‐‐  Consult  the  dealer  or  an  experienced  radio/TV  technician for help.    NOTE:  This  device  and  its  antenna(s)  must  not  be  co‐located  or  operation  in  conjunction  withany  other  antenna or transmitter.    RF Exposure Statement  To  maintain  compliance  with  FCC’s  RF  Exposure  guidelines, This equipment should be  installed and operated with minimum distance of 20cm  the radiator your body. ...
  • Page 124 Warning： This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
