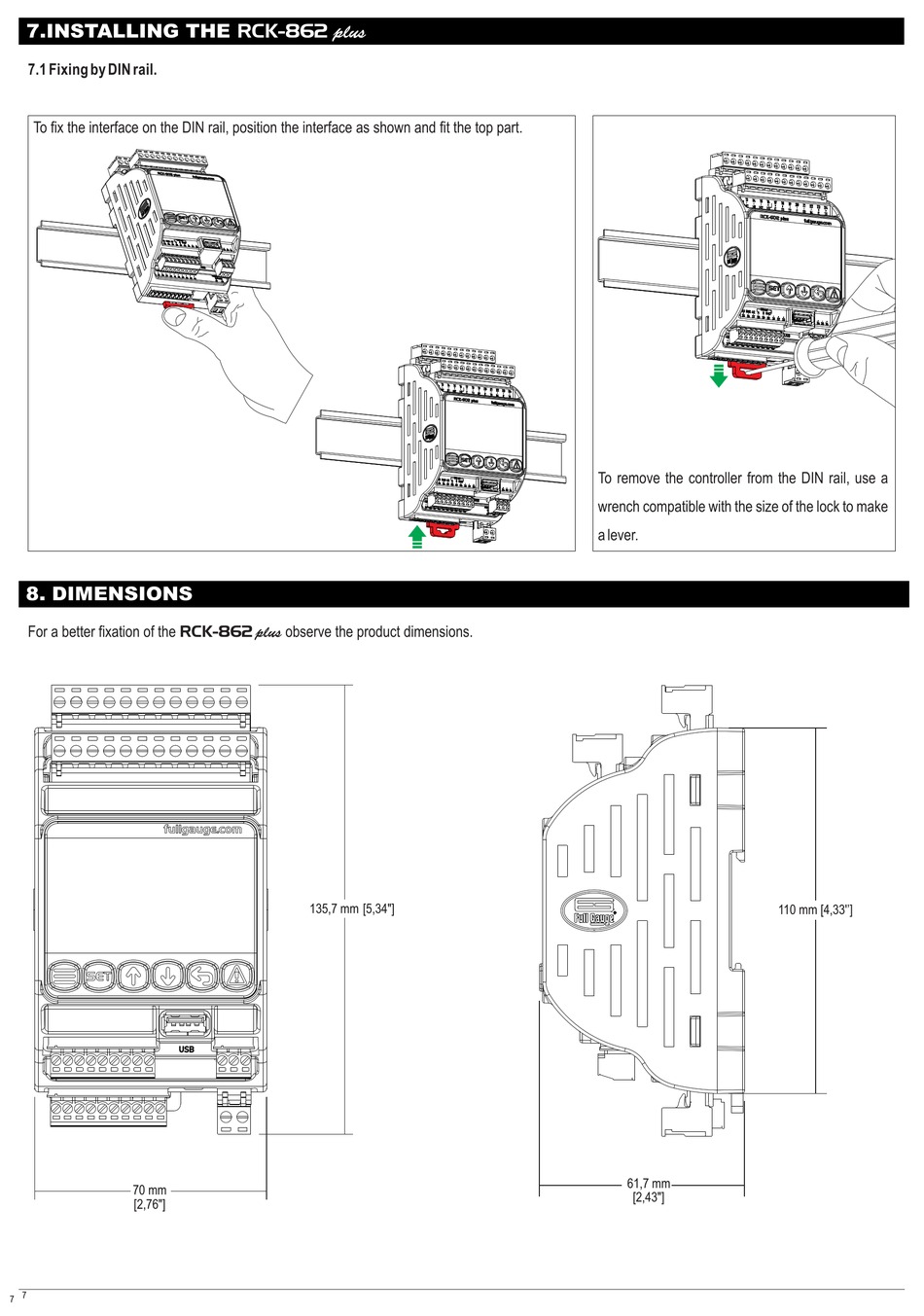

7.INSTALLING THE RCK-862 plus

7.1

Fixing by

DIN rail.

To fix the interface on the DIN rail, position the interface as shown and fit the top part.

For a better fixation of the RCK-862 plus observe the product dimensions.

USB

70 mm

[2,76"]

135,7 mm

[5,34"]

To remove the controller from the DIN rail, use a

wrench compatible with the size of the lock to make

a lever.

61,7 mm

1,80"

[2,43"]

110 mm [4,33'']

3,21"
