One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 •
Evaluating the
EVAL-ADAU1772Z PACKAGE CONTENTS
EVAL-ADAU1772Z evaluation board
EVAL-ADUSB2EBZ (USBi) communications adapter
USB cable with Mini-B plug
Evaluation board/software quick start guide

DOCUMENTS NEEDED

ADAU1772 data sheet
AN-1006 Applications Note, Using the
EVAL-ADAU1772Z
Figure 1. EVAL-ADAU1772Z
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
ADAU1772 Four ADC, Two DAC Low Power Codec
with Audio Processor
EVAL-ADUSB2EBZ

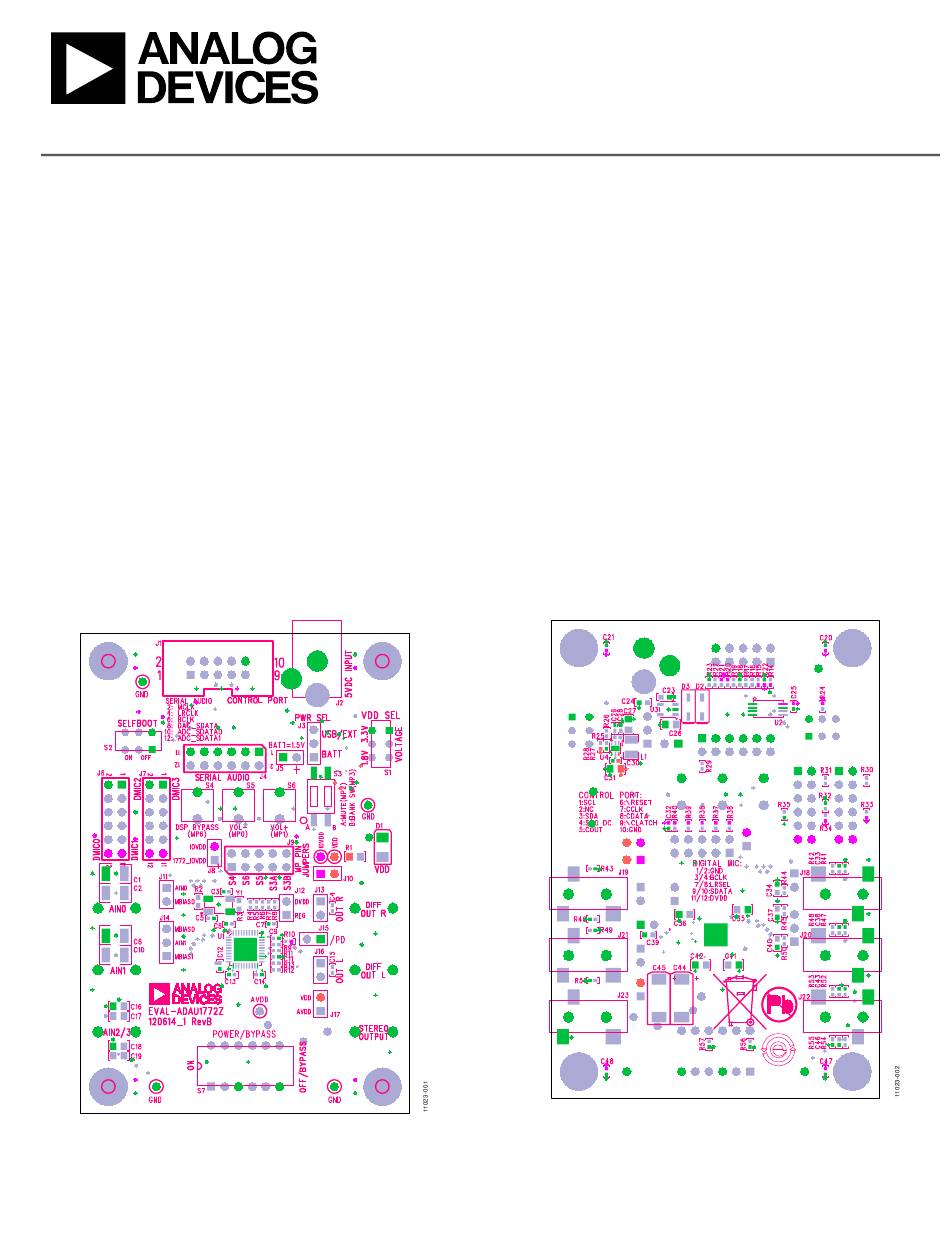

EVALUATION BOARD TOP SIDE AND BOTTOM SIDE
Evaluation Board Top Side
Evaluation Board User Guide

GENERAL DESCRIPTION

This user guide explains the design and setup of the
ADAU1772Z evaluation board.
This evaluation board provides full access to all analog and digital
I/Os on the ADAU1772. The
Analog Devices, Inc., SigmaStudio™ software, which interfaces to
the board via a USB connection. The
powered by a single AAA battery, by the USB bus, or by a single
3.8 V to 6 V supply; any of these are regulated to the voltages
required on the board. The printed circuit board (PCB) is a 4-layer
design, with a single ground plane and a single power plane on the
inner layers. The board contains connectors for external micro-
phones and speakers. The master clock can be provided externally
or by the on-board 12.288 MHz passive crystal.
Figure 2.
Rev. A | Page 1 of 28
ADAU1772 core is controlled by
EVAL-ADAU1772Z
EVAL-ADAU1772Z Evaluation Board Bottom Side
UG-477
www.analog.com
EVAL-
can be
