Mocka Eclipse Change Table Assembly Instructions Manual page 4

Eclipse Change Table
Assembly Instructions
5
3 7
3 3

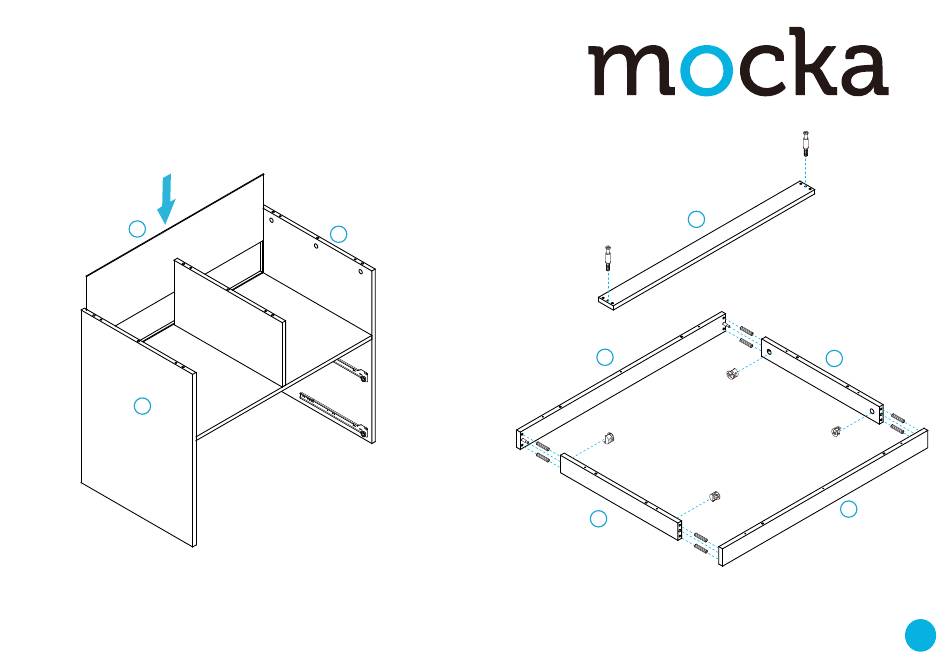

Slide panel [7] down along the grooves between the panels [3]
and [4] to form the back of the unit as shown.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
6
3 4
Insert 4x bolts (C) into panels [8] and tighten with a screwdriver. Attach
panels [8] to panels [9] with 8x dowels (Q) and secure with 4x locking
nuts (D). Tighten with a screwdriver.
3 8
C
3 8
D
D
Q
D
3 9
Q
C
x2
Q
3 9
Q
D
3 8
4
