Eclipse Change Table
Assembly Instructions
19

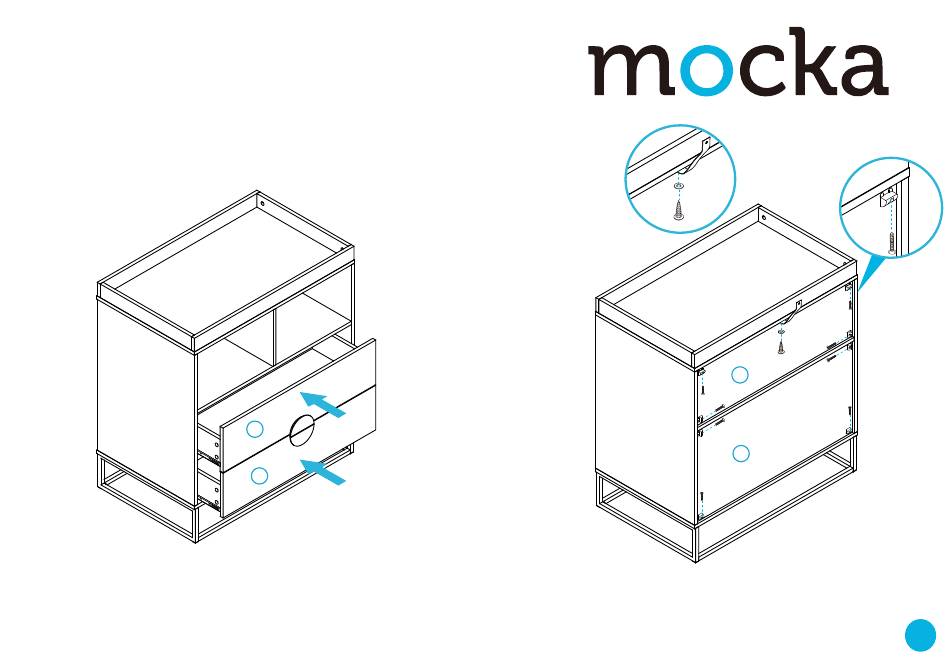

Insert the assembled drawers into the corresponding compartments
as shown. Ensure the drawers slide easily along the rails.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
3 14
3 15
20
V
Z
W
Attach 8x wedges (J) into the corners of the back of the
unit and secure with 8x screws (K). Tighten with a screwdriver.
Attach 1x safety straps (V) to the top of the back side of the unit as
shown using 1x washers (Z) and 1x screws (W). Tighten with a
screwdriver.
J
K
J
V
K
Z
W
3 7
3 10
11
