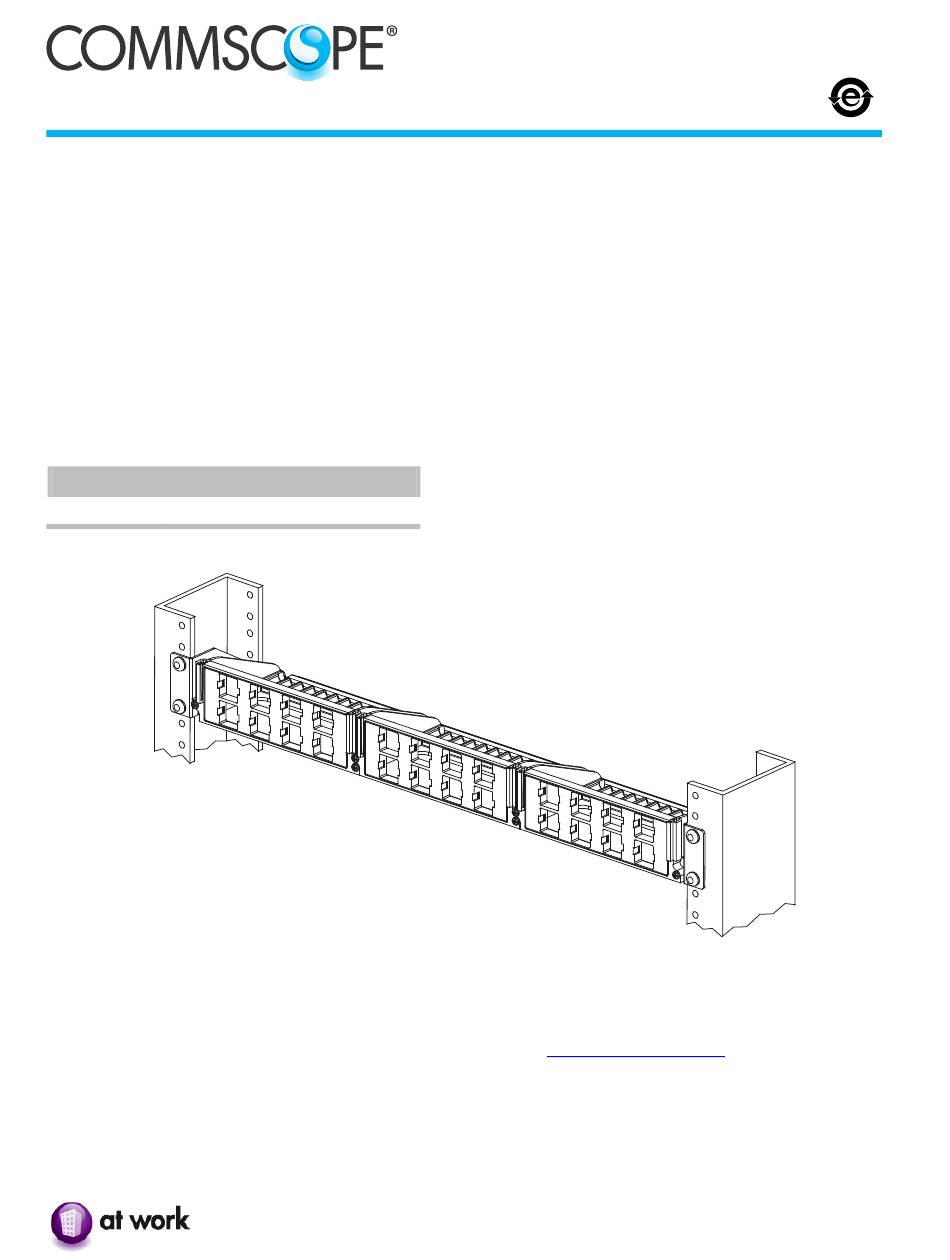

M3200 FTP Modular Panel Instructions
General
The CommScope
M3200 FTP modular panel is a highly flexible 24-port, front or rear accessible patch panel
assembly. When properly grounded and installed with FTP M-series or J-series outlets, modular patch cords,
and cables, it is an integral part of an X1OD FTP connectivity system. The panel consists of a rack mounted
base unit, three slide-in drawers with conductive front bezels, and labels for standard port numbering. It mounts
in a standard 19-inch (483 mm) equipment rack with universal hole spacing and incorporates lugs for panel
grounding.
Ordering information is listed below:
Material ID
760058578
M3200 FTP modular panel
A separately orderable removal tool kit (760122713) is required for use with the panel.
How to Contact Us
•
To find out more about CommScope
•
For technical assistance:
-
Within the United States, contact your local account representative or technical support at
1-800-344-0223. Outside the United States, contact your local account representative or Authorized
Business Partner.
www.commscope.com
Description
M3200 FTP Modular Panel (24-Port)
®
products, visit us on the web at
© 2012 CommScope, Inc. All rights reserved
Instruction Sheet 860382035
http://www.commscope.com/
Issue 5, May 2012
Page 1 of 5
Advertisement
Table of Contents
Related Manuals for CommScope M3200
Summary of Contents for CommScope M3200
- Page 1 The CommScope M3200 FTP modular panel is a highly flexible 24-port, front or rear accessible patch panel assembly. When properly grounded and installed with FTP M-series or J-series outlets, modular patch cords, and cables, it is an integral part of an X1OD FTP connectivity system. The panel consists of a rack mounted base unit, three slide-in drawers with conductive front bezels, and labels for standard port numbering.
- Page 2 860382035 www.commscope.com Instruction Sheet Within the United States, report any missing/damaged parts or any other issues to CommScope Customer Claims at 1-866-539-2795. Outside the United States, contact your local account representative or Authorized Business Partner. Tools Required • Phillips head screwdriver...
- Page 3 860382035 Issue 5, May 2012 Step 2a ― Populate Carrier and Secure Cables to Carrier 1. Cable outlets per the instructions provided with the individual outlets, then populate carriers with appropriate outlets. Cable tie Note: The upper row of outlets must be populated before the lower row.
- Page 4 CommScope website under SYSTIMAX M3200 panel labeling, or it may be obtained from any CommScope representative. A perforated sheet (760060392) for us most laser printers is available, or the labels may be trimmed from plain paper. The label e in should be 0.43 inches (11 mm) wide and 1.40 inches (36 mm) high.
- Page 5 860382035 Issue 5, May 2012 Removing an Outlet Using Outlet Removal Tool (Part of Tool Kit 760122713) 1. Position tool as shown and insert into front of outlet to depress locking tabs. 2. Remove outlet from rear of panel.
