Hardware and Connections

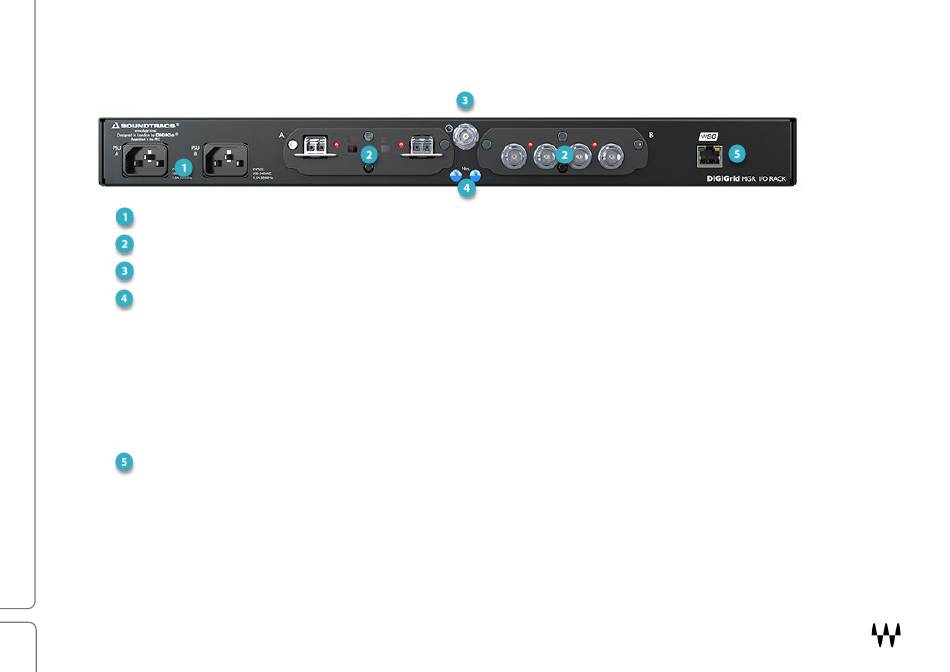

MGR R P
EAR ANEL
Mains Inputs A & B – Connect both for redundant operation.
MADI Modules 1 & 2 – Either BNC or optical connections; connect to any MADI device.
Word Clock Input – Connect external word clock source; feeds both modules.
SoundGrid Net Status LEDs
SoundGrid network found = Blue
SoundGrid network not found = Flashing red
Firmware update in progress = Yellow
Hardware error = White
Device Identify mode = Revolving colors
SoundGrid Network Port has two LEDs to indicate status
Link/Activity Led = Flashing green
GigE (Gigabyte Connection Indicator) = Solid orange
