CLOCK STATUS INDICATORS
Three windows on the right side of the Clock control panel help you to quickly assess the network status of the device.
When the device is a slave in the SoundGrid network, you will likely sync it to the SoundGrid network clock (via SOE).
Even when the device is an SOE slave, you can lock it to an external clock source. For example, if another SoundGrid
I/O device is the SOE master and is locked to a word clock device, you may choose to receive clock from the same
external device over word clock from the master device rather than via network SOE.
CLOCK SOURCE AUTO-SWITCHING
In the event that the selected clock source fails, MGR has a series of clock fallback layers, in this order: Word Clock
input, MADI (port A), SOE, Internal. If an MGR is clocked to WC and this external source fails, it will first try to clock to
MADI (port A), then SOE. If that not successful, it will fall back to Internal.
16

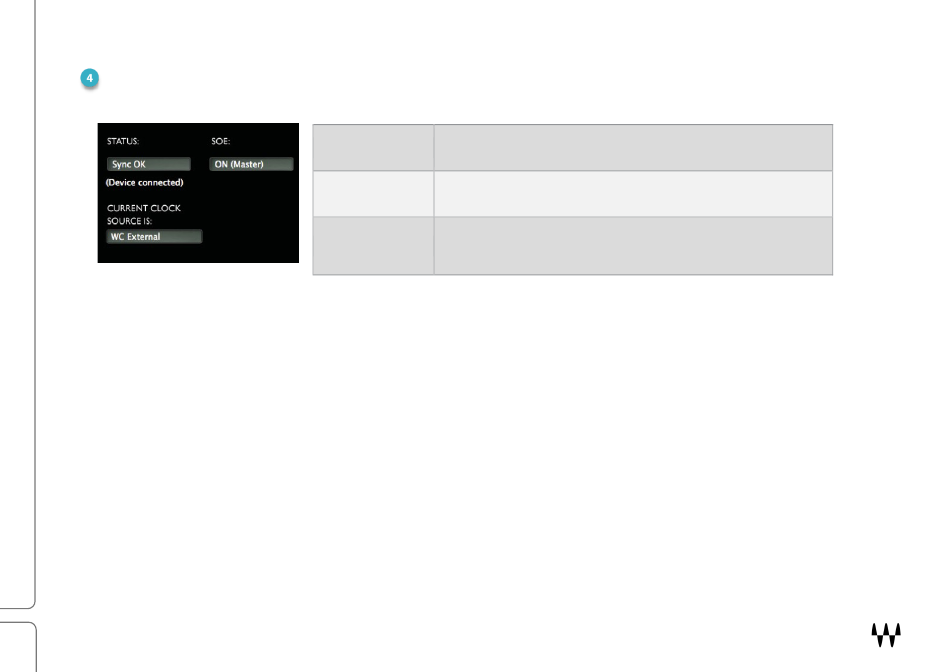

Reports the presence or absence of sync between the MGR and
Status
the SoundGrid network
Current Clock Displays the current sync method. This may differ from the choice
Status made in the Source menu
Indicates whether this MGR is the master or a slave in the SoundGrid
SOE network. This mirrors the status information in the SoundGrid Studio
Device Rack
