MADI Options Page

The MGR has Dual MADI Interface modules. Each module has its respective Control Panel. Click the Identify button to
indicate which module belongs to this Control Panel.
While the MGR can deliver up to 256 channels at sample rates of 44.1kHz/48kHz, SoundGrid Driver is limited to 128
channels at any sample-rate.
14
One MADI connection supports 56 or 64 in/out
channels at 44.1kHz/48kHz, and 28 or 32 in/out
channels at 88.2kHz/96kHz.

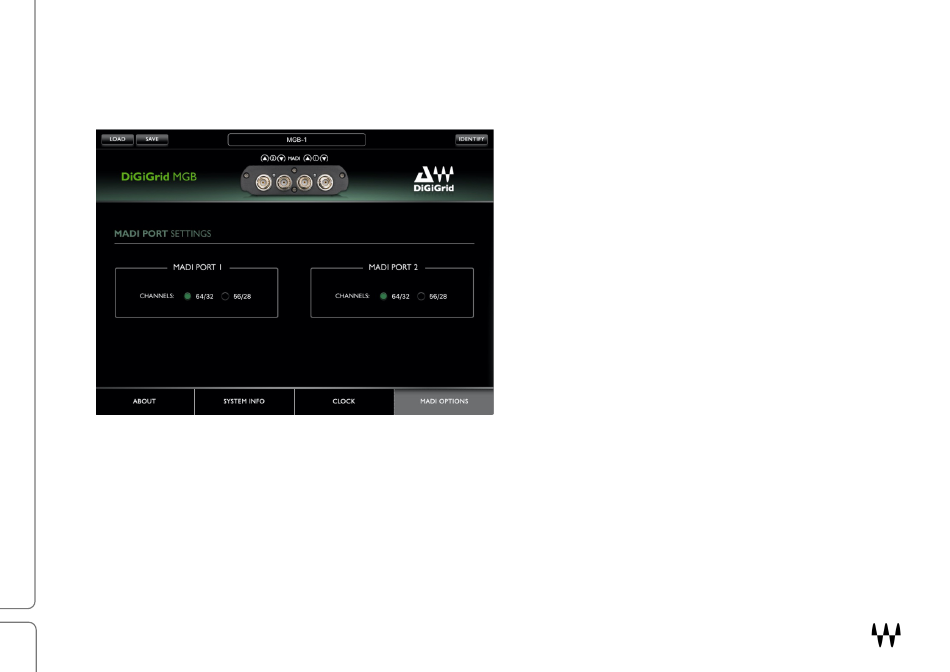

In MADI Port Settings, set the number of available
channels according to your MADI device settings.
Range: 56/28, 64/32
