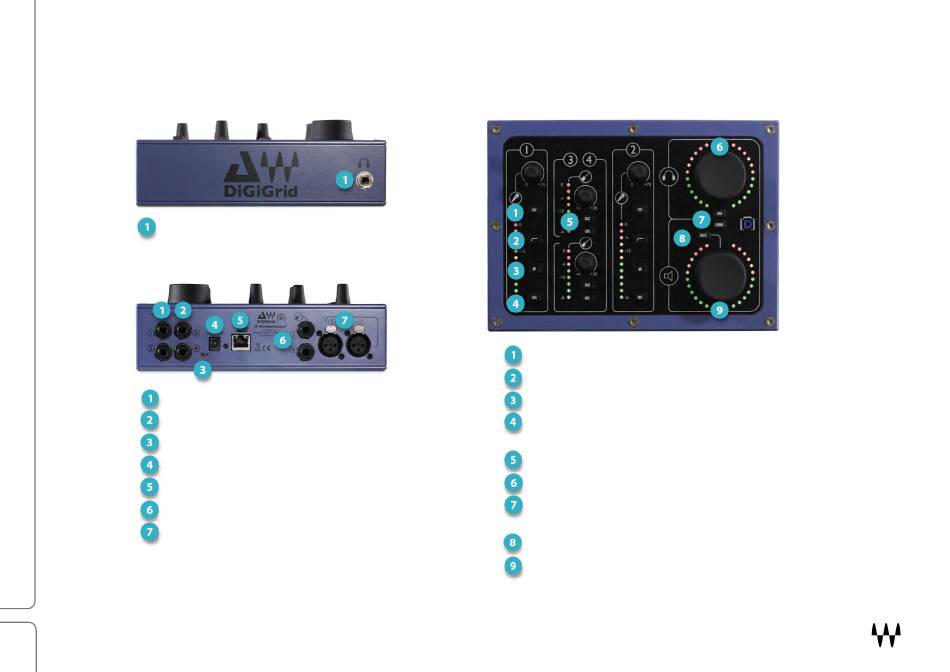

Hardware and Connections

D G G
I I RID
Headphone Output
D G G
I I RID
Monitor Outputs
Line Outputs
Reset button
DC In
SoundGrid Network
Guitar Inputs
Mic/Line Inputs, 0 to +70 dB
4
D F P
RONT ANEL
D R P
EAR ANEL
D G G D T P
I I RID OP ANEL
Phantom Power
High-Pass Filter
Phase Invert
MIX (Direct Listen): routes mono feed of this input to the
monitor and headphone outputs bypassing all other paths.
INST: switches to Instrument input (Hi Z).
Headphone Level Control
Dim and Mono: control headphones and Outputs 1 and 2
(monitor outputs). Dim: -20 dB
Mute: affects monitor outputs only
Monitor Output Level: controls levels of Outputs 1 and 2
DiGiGrid D / User Guide
