MGR (MGB/MGO) Control Panels

Depending on which modules are installed (BNC and/or Optical) the MGR will identify as either MGB (BNC) or MGO
(Optical) device with their respective control panels. There are two ways to open the device control panel:
F D
ROM THE EVICE
SoundGrid Studio
F D
ROM THE RIVER
MGR C
ONTROL
The About and System Info pages provide information about the unit, such as MAC address, SOE master MAC
Address, firmware version, and more. The Clock and MADI Options pages are used to set up and manage the MGR.
13
R
ACK

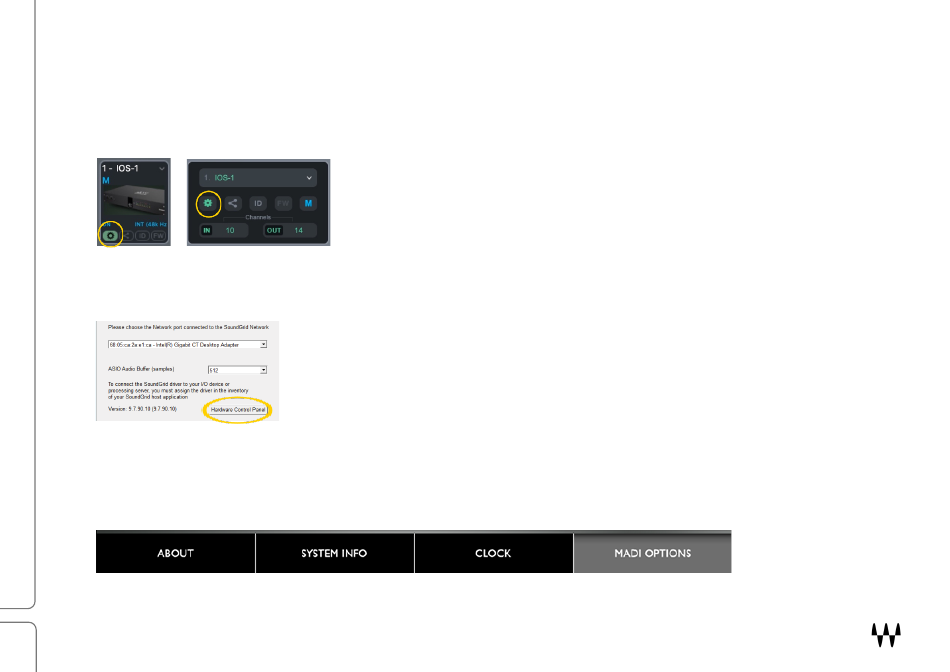

Click on the Gear button on a device in the rack slot.
SoundGrid QRec
C P
ONTROL ANEL
You can also access the control panels of all assigned I/O devices from Driver Control
Panel application, which is located here:
PC: C:\Program Files (x86)\Waves\SoundGrid\Driver Control Panel
Mac: System HD/Applications/Waves/SoundGrid
P P
ANEL AGES
