Clock Page

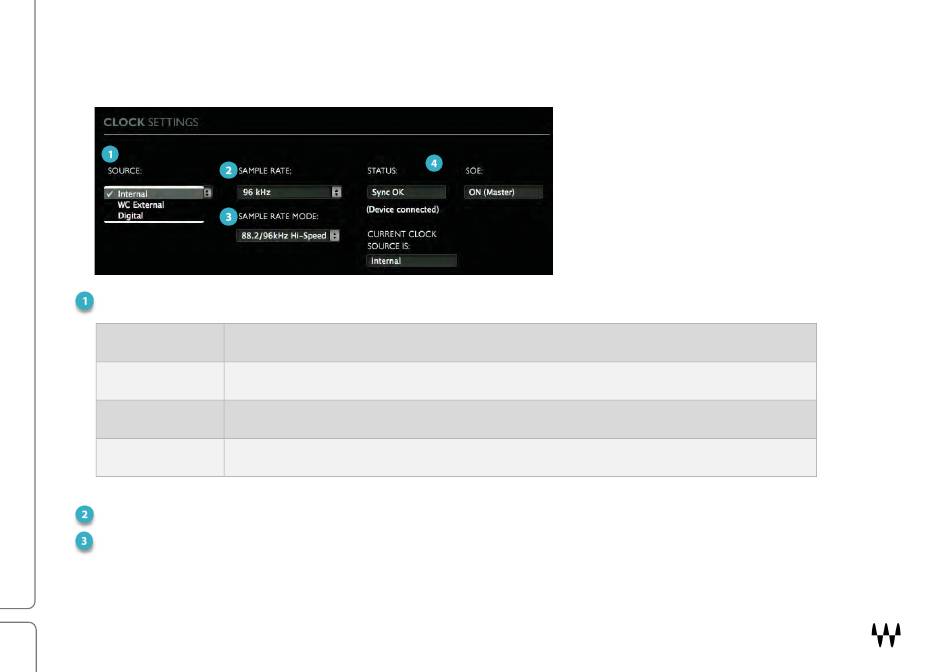

Use the Clock page to set the clock source and sample rate settings for the device and to assess clock status.
SOURCE sets the clock source
Internal
External WC
Digital
Sync over Internet
SAMPLE RATE sets the sample rate when Clock Source is set to Internal. Range: 44.1 / 48 / 88.2 / 96 kHz
SAMPLE RATE MODE sets the MADI mode for 88.2 kHz / 96 kHz operation. Check your MADI enabled console or device
manual for the proper selection.
Range: High-Speed, SMUX
15
The interface itself provides the clock
The interface has a Word Clock Input connector to connect an external clocking source to sync all
devices in your network to the external clock
Syncs via the BNC or optical MADI connection on MADI Port 1 or Port 2 (selectable). The MGB/MGO
interfaces sync to the incoming MADI from the console or MADI enabled device.
Send or receive clock and sample rate over an Ethernet cable between SoundGrid network devices
