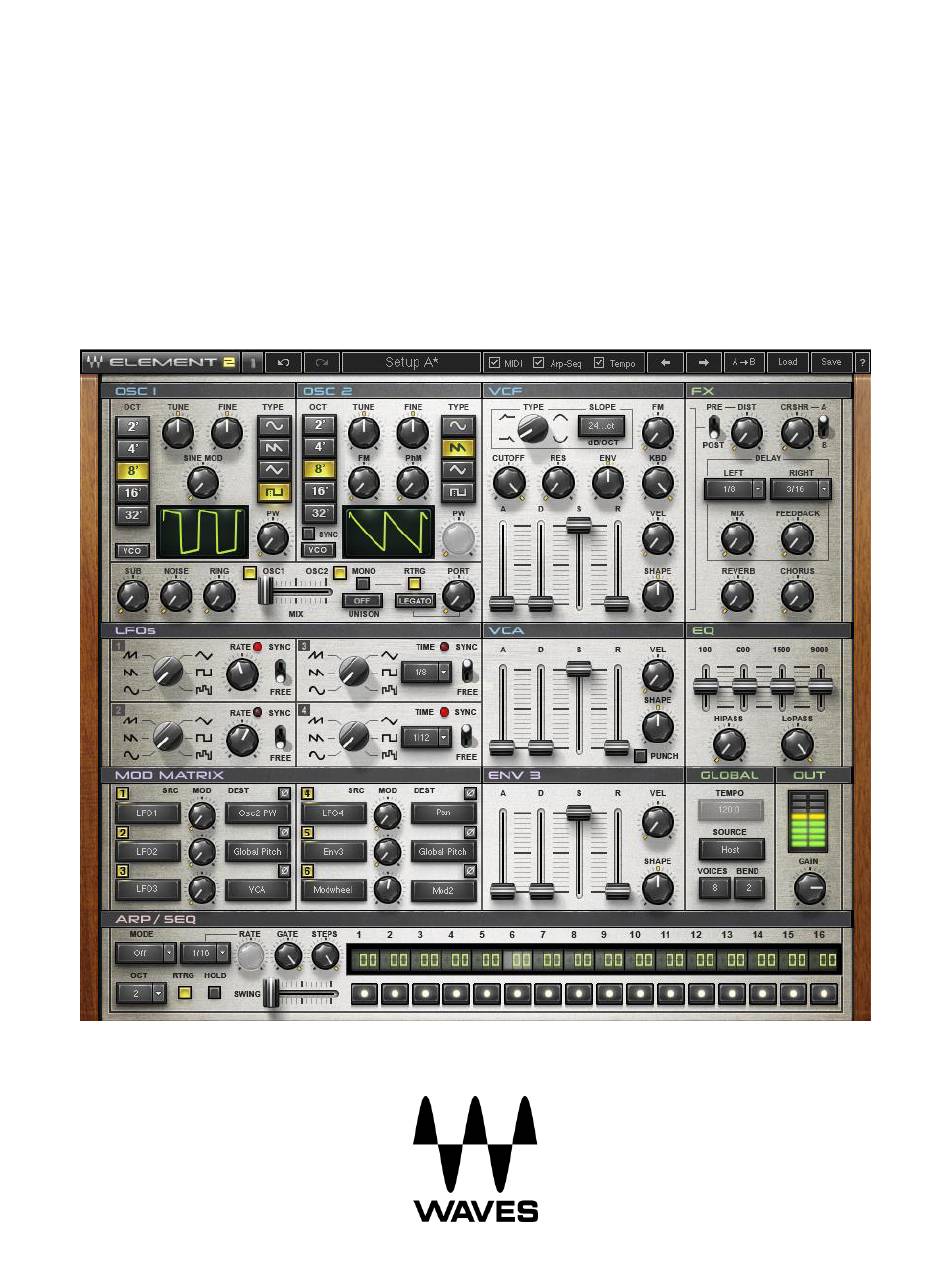

WAVES
ELEMENT 2.0
USER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ELEMENT 2.0 and is the answer not in the manual?

Questions and answers

Summary of Contents for Waves ELEMENT 2.0

  • Page 1 WAVES ELEMENT 2.0 USER GUIDE...
  • Page 2: Table Of Contents

    CHAPTER 4 – STANDALONE APPLICATION ............22 CHAPTER 5 – ELEMENT 1 AND ELEMENT 2 MODES ..........22 Element 1 Mode ....................23 Element 2 vs. Element 1 ..................24 CHAPTER 6 – WaveSystem Toolbar................25 Waves Element 2.0 User Guide...
  • Page 3: Chapter 1 - Introduction

    CHAPTER 1 – INTRODUCTION 1.1 Welcome Thank you for choosing Waves! In order to get the most out of your new Waves plugin, please take a moment to read this user guide. To install software and manage your licenses, you need to have a free Waves account.
  • Page 4: Concepts And Terminology

    Anyone acquainted with synthesis – especially classic ’80s-style polyphonic subtractive synthesis – should feel right at home with Element 2.0. You’ll be able to dive right in and start programming immediately. For novice synthesists, Element 2.0 is an ideal place to learn the basics of synthesis theory.
  • Page 5: Components

    Components Element 2.0 has one component: Element 2.0 Stereo Element 2.0 is a virtual instrument plugin and will appear under the related selection menus for virtual instruments under all supported DAW host applications. Waves Element 2.0 also works as a standalone application, using ASIO (Windows) or Core Audio (Mac) drivers to play through your audio device of choice.
  • Page 6: Chapter 2 - Quick Start Guide

    CHAPTER 2 – QUICK START GUIDE 1. Open Element 2.0 on an instrument track in your DAW of choice, or launch the Element 2.0 standalone application. 2. Select a preset from Element 2.0s factory presets. 3. Play! Use the next/previous preset arrow controls on the toolbar to scroll through presets.
  • Page 7: Chapter 3 - Interface And Controls

    CHAPTER 3 – INTERFACE AND CONTROLS 3.1 Interface 3.2 Controls The Element 2.0 interface is arranged into four sections grouped according to function, each highlighted in a different color:  Voice generation and subtractive elements (blue)  Modulation sources and patches (purple) ...
  • Page 8: Oscillators

    3.2.1 OSCILLATORS Element 2.0 has two modeled analog oscillators which are labeled OSC 1 and OSC 2. OCT determines the pitch range. Options: 2, 4, 8, 16, 32 (from highest to lowest pitch) TUNE determines the pitch. Range: -12 to +12 semitones FINE fine-tunes the pitch.
  • Page 9: Additional Oscillators & Mix Section

    SUB mixes in a triangle wave one octave below OSC 1. Range: 0–100 NOISE mixes in white noise. Range: 0–100 RING controls the ring modulation of OSC 1 and OSC 2. Range: 0–100 Waves Element 2.0 User Guide...
  • Page 10 Options: Off, 2 Voices, 4 Voices PORT determines the glide time (portamento) between notes. Range: 0.5–2500 ms (0–2.5 seconds) LEGATO determines whether glide will always occur, or only when the previous note is still held. Options: Legato, Always Waves Element 2.0 User Guide...
  • Page 11: Voltage-Controlled Filter (Vcf)

    Options: 2-pole/12 dB per octave, 4-pole/24 dB per octave CUTOFF controls the VCF cutoff frequency. Range: 0–100 (20 Hz–20 kHz) RES controls the amount of filter resonance. Range: 0–100 ENV determines the envelope’s cutoff modulation depth. Range: -100–100 Waves Element 2.0 User Guide...
  • Page 12 SHAPE determines the contour of the envelope time constants. Range: -50–50 At 0, time constants are linear; at positive values, the envelope slopes become more logarithmic for a response more similar to analog envelopes. Negative values result in an exponential curve. Waves Element 2.0 User Guide...
  • Page 13: Voltage-Controlled Amplifier (Vca)

    VEL sets the envelope depth in relation to the Note On velocity. Range: 0–100 SHAPE determines the contour of the envelope time constants. Range: -50–50 PUNCH controls the dynamic transient enhancer which makes for a “snappier’ attack. Options: On, Off Waves Element 2.0 User Guide...
  • Page 14: Low-Frequency Oscillators (Lfos)

    3.2.5 LOW-FREQUENCY OSCILLATORS (LFOS) Element 2.0 features four identical LFOs that can be either free-running or synced to both MIDI clock and Note On commands. TYPE controls the LFO waveform shape. Options: Sine, Saw Down, Saw Up, Triangle, Pulse, S&H (random) RATE controls the frequency of the free LFO.
  • Page 15: Envelope 3

    3.2.6 ENVELOPE 3 In addition to the filter and the VCA envelopes, Element 2.0 includes an envelope generator that can be freely assigned to selectable destinations via the modulation matrix. A (Attack): 1–10,000 (1 millisecond–10 seconds) D (Decay): 1–10,000 (1 millisecond–10 seconds) S (Sustain): 0 to 100% amplitude R (Release): 1–10,000 (1 millisecond–10 seconds)
  • Page 16: Modulation Matrix

    LFO4 Rate, Env3 A, Env3 D, Env3 S, Env3 R, Env3 Shape, Arp/Seq Rate, Arp/Seq Gate, Mod1, Mod2, Mod3, Mod4, Mod5, Mod6, HP, LP, Distortion, Crusher, Delay Mix, Delay Time, Reverb, Chorus MOD sets the degree to which the modulation source affects the destination. Range: 0–100%. Waves Element 2.0 User Guide...
  • Page 17: Arpeggiator/Sequencer

    RATE sets the arpeggiator rate when TIME is set to Free. Range: 1–50 Hz GATE determines the length of each sequencer step as a percentage of its note length. Range: 5–100% STEPS determines the number of steps in the current sequence. Range: 1–16 Waves Element 2.0 User Guide...
  • Page 18: Effects

    PRE/POST is a toggle control which determines the placement of the distortion effect in the signal path, either pre-VCF or post-VCF. Options: Pre, Post CRSHR is a distortion-like effect which simulates a reduction in the bit-depth and resolution of the sound. Range: 0–100 Waves Element 2.0 User Guide...
  • Page 19 REVERB controls both the amount and size of the virtual plate reverb sound. In addition to increasing the amount of reverb, higher values also increase the reverb size and time. Range: 0–100 CHORUS determines the amount of chorus modulation. Range: 0–100 Waves Element 2.0 User Guide...
  • Page 20 Range: -30 to +30 dB 600 controls equalization at 600 Hz. Range: -20 to +20 dB 1500 controls equalization at 1500 Hz. Range: -20 to +20 dB 9000 controls equalization at 9000 Hz. Range: -25 to +25 dB Waves Element 2.0 User Guide...
  • Page 21: Global And Out Sections

    BEND determines how far the pitch-bend controls will increase/decrease the pitch in semitones. Range: 0–12 GAIN sets Element 2.0’s overall output volume, after all generators and processors. Range: -80 to 0 dBFS METER displays Element 2.0’s overall output energy. Waves Element 2.0 User Guide...
  • Page 22: Chapter 4 - Standalone Application

    The standalone application’s menu file contains 3 items:  All Notes Off – Sends an All Notes Off MIDI command to the Element 2.0 synthesizer: useful in cases of “stuck” sustaining notes.  Preferences – Displays the preferences dialog for Audio, MIDI, and User Choices configurations.
  • Page 23: Chapter 5 - Element 1 And Element 2 Modes

    CHAPTER 5 – ELEMENT 1 AND ELEMENT 2 MODES 5.1 Element 1 Mode Waves Element 2.0 includes a fully features version of its predecessor, the original Element synth. A dedicated control at the top left corner of the interface, labeled Element 1 and 2, lets you freely switch between the two versions.
  • Page 24: Element 2 Vs. Element 1

    5. Element 1 features an HD switch that improves the overall sound of the instrument at the expense of increased CPU usage. Element 2 is always HD. 6. Element 1 has neither the ARP/SEQ ‘Hold’ nor the ‘Retrigger’ functionality of Element 2. Waves Element 2.0 User Guide...
  • Page 25: Chapter 6 - Wavesystem Toolbar

    Loading presets may set the tempo to a different value or to the value determined by your host computer. To ignore tempo settings saved with other presets, uncheck the Tempo box, and your current tempo setting will remain in place when other presets are loaded. Waves Element 2.0 User Guide...
