4.3 bICYCLE FRAME WITH D-SHAPE FORK

This type of frames features a 1"-1/8 upper bearing and a fork steerer with a non-
circular section (commonly called D-shape). In this confi guration, you must use
the 46mm topcover (11).
In the case of mounting on a frame with a D-shape fork, there are two mounting
options:
4.3.1 Assembly with S-DCR cover (7) and a traditional handlebar, in this

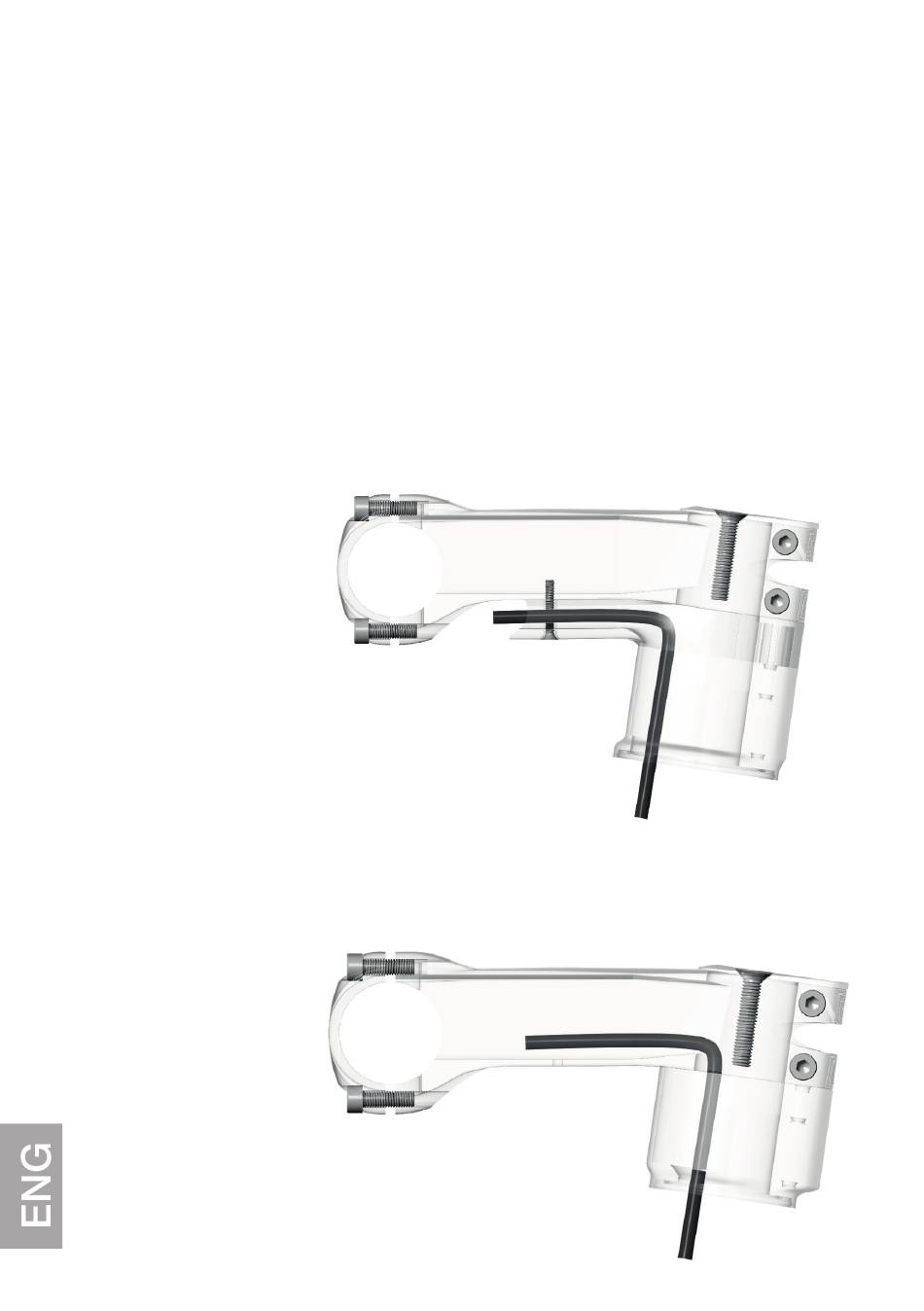

Fig. 4.3.1: cable routing view with S-DCR cover system
4.3.2 Assembly without S-DCR cover (7) with a DCR handlebar, in this
Fig. 4.3.2: cable routing view with DCR system
10
confi guration the cables will enter under the stem in plastic cover (7)
passing through the spacers and 46 mm topcover (11).
confi guration the cables will enter directly into the stem passing through
the spacers and 46mm topcover (11)
